Transceiver apparatus for use in a multi-frequency communication system, base station of a multi-frequency communication system, method for use of the transceiver apparatus, method of transceiving a multi-frequency signal in a multi-frequency communication system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 1, 2009
Grant Date -
Oct 26, 2006
app pub date -
Aug 13, 2003
filing date -
Aug 29, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

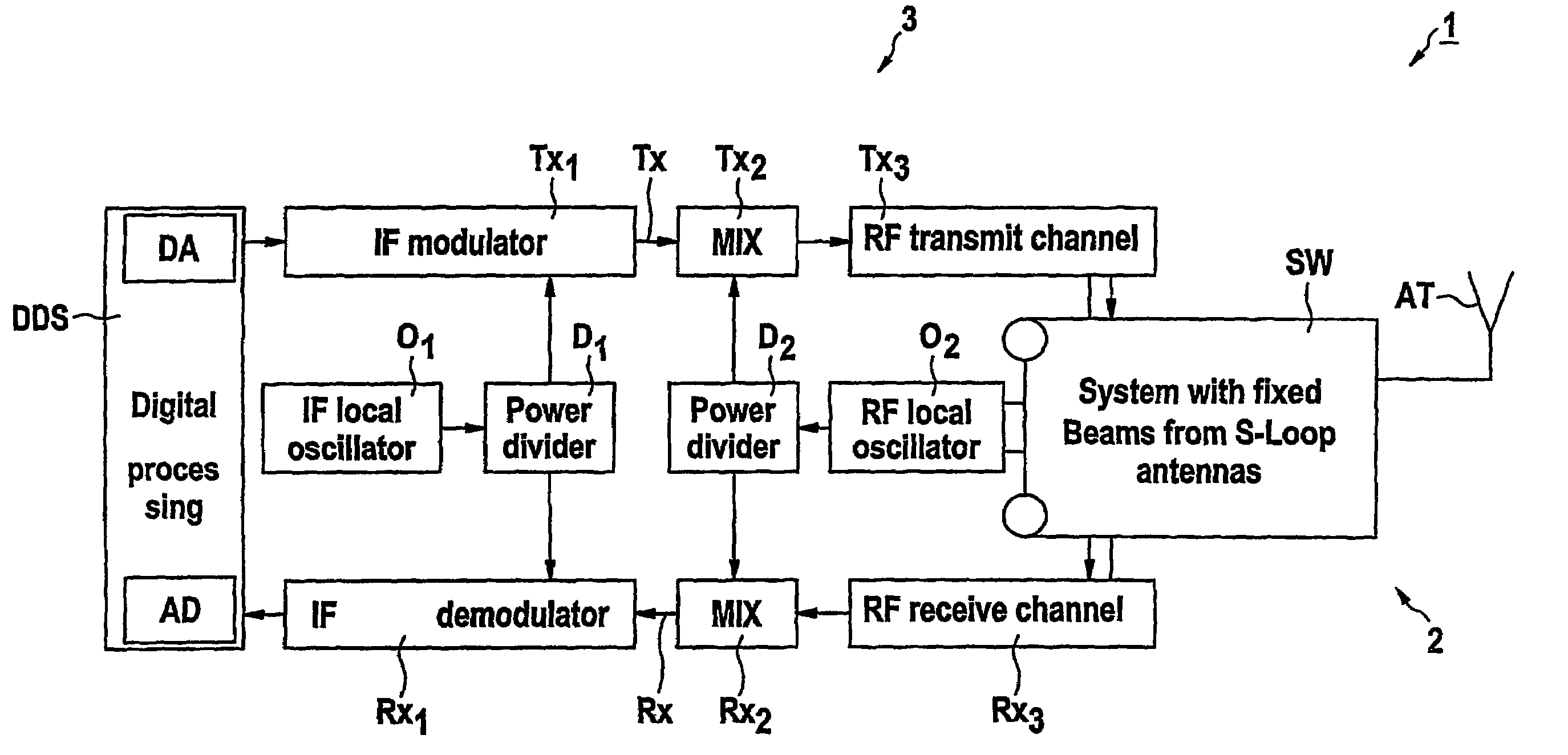

In a transceiver apparatus for use in a multi-frequency communication system a multi-frequency antenna terminal operation allows antenna transmission and reception-modes to be combined. A frequency conversion circuitry has a transmission path and a reception path, wherein each of these paths communicatively connects a signal processor and an antennaswitch. The antenna-switch comprises a multi switch, a transmission-multiplexer and a reception-multiplexer, wherein the antenna switch may be controlled by the signal processor and the multiplexers may be controlled by the signal generator via the multi switch. The antenna has a transmission connector for connecting the transmission path to the antenna and a reception connector for connecting the reception path to the antenna. Advantageous configurations of the transceiver provide an S-loop antenna design and phase matching units in an antenna terminal and a Butler-matrix of the antenna-switch. This provides an antenna and an antenna-switch with an optimal matching factor and consequently improves multi-frequency transceiver operation.
