Lockout device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 1, 2009
Grant Date -
Dec 21, 2006
app pub date -
Jun 13, 2006
filing date -
Jun 13, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

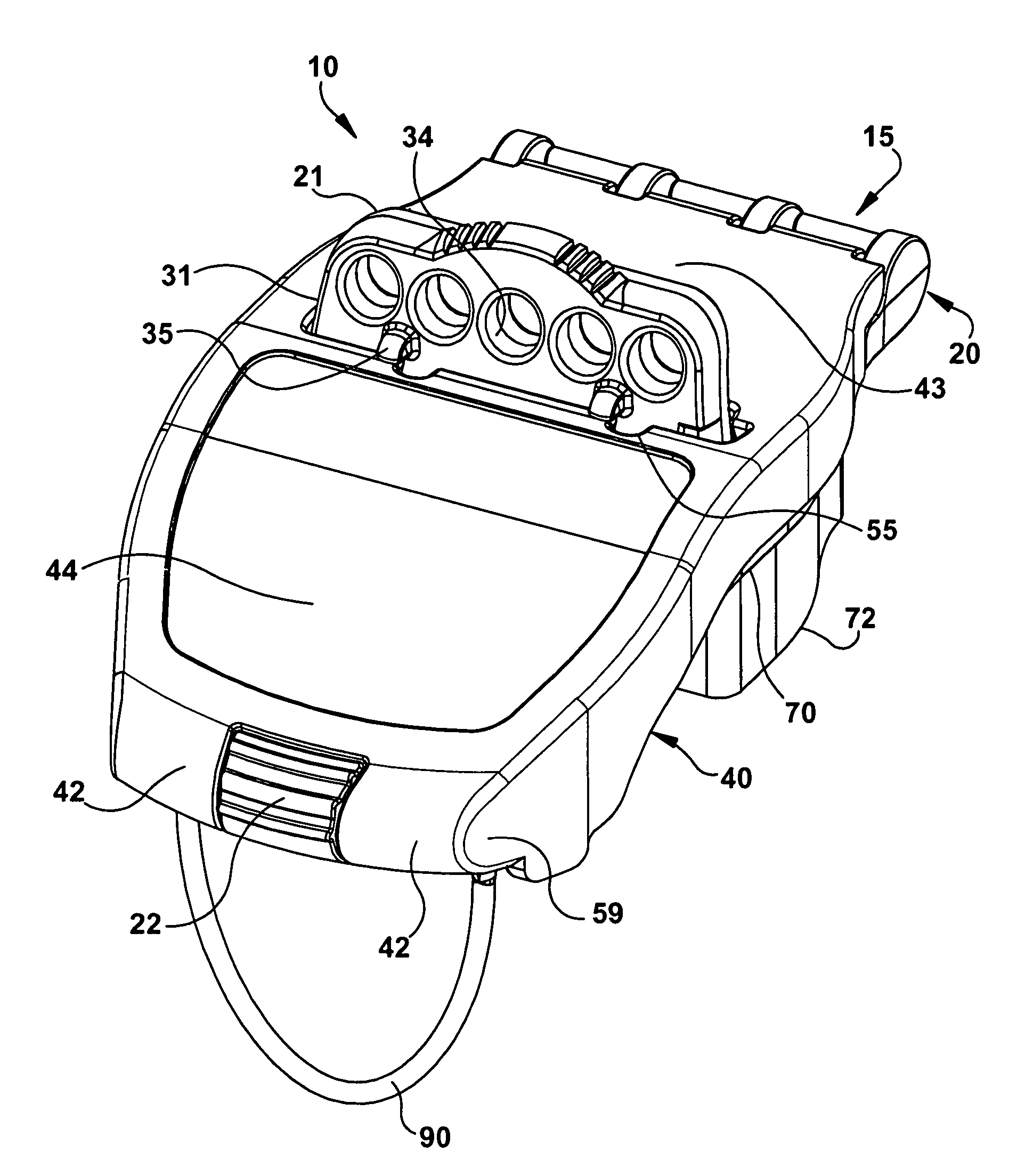

A lockout device is provided for an instrument having a body and an actuating member extending from the body for operating the instrument. The lockout device includes a bottom member, a cover member, and a flexible member. The bottom member is adapted to be positioned over the body and includes a first holding portion and an aperture for receiving the actuating member. The cover member is connectable to the bottom member for movement between a closed position and an open position, and includes a covering portion for covering the actuating member in the closed position, and a second holding portion adapted to abut the first holding portion in the closed position. The flexible member has a first end connected to one of the bottom member and the cover member. The bottom member and cover member are adapted to receive a cinching portion of the flexible member between the first and second holding portions. When the flexible member is wrapped around a portion of the body and received between the first and second holding portions and the cover member is in the closed position, the first and second holding portions prevent movement of the cinching portion of the flexible member.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2006 Application Filing Year
- F16K Class
- 863 Applications Filed
- 571 Patents Issued To-Date
- 66.17 % Issued To-Date
