Field emission electron source having carbon nanotube
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 25, 2009
Grant Date -
Oct 11, 2007
app pub date -
Sep 1, 2006
filing date -
Apr 5, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

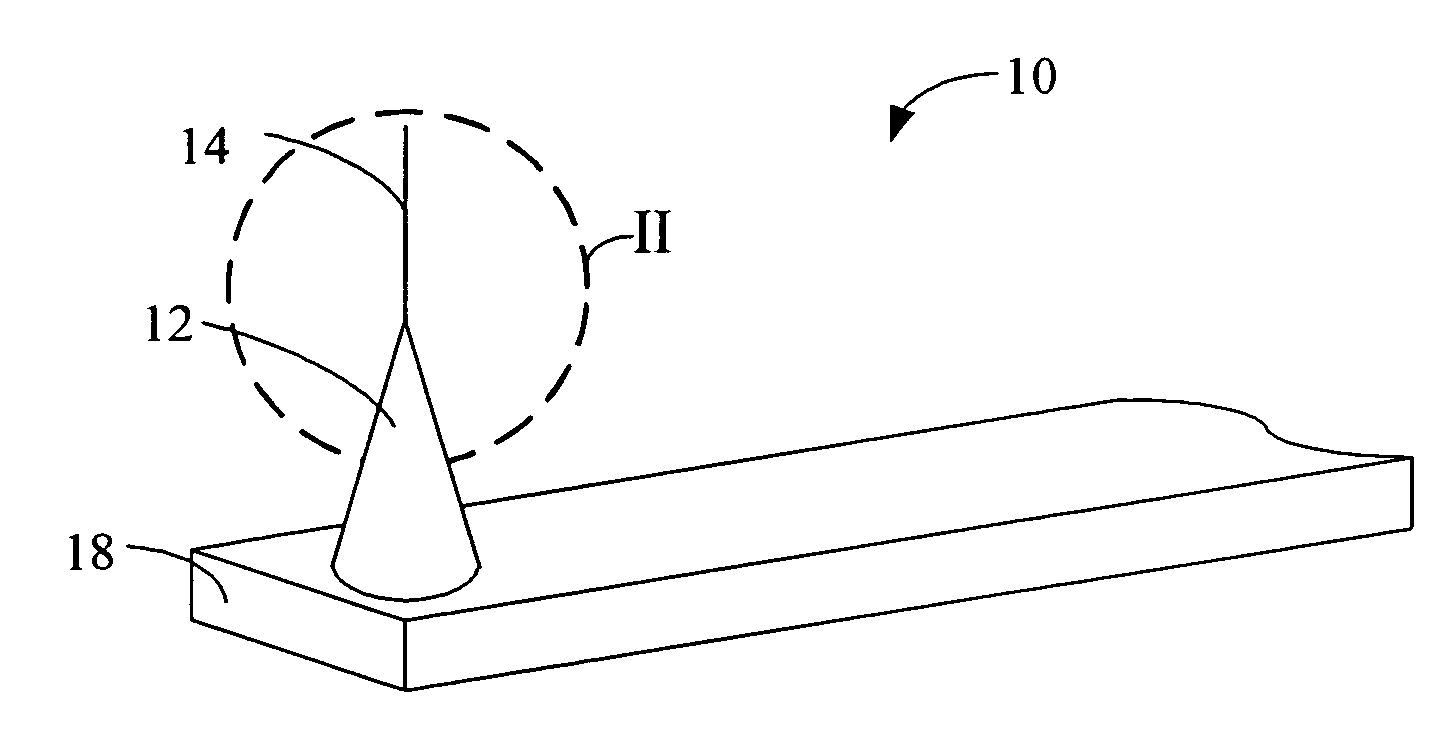

A field emission electron source (10) includes a conductive base (12), a carbon nanotube (14), and a modifying layer (16). The conductive base includes a top (122). One end (142) of the carbon nanotube is electrically connected with the top of the conductive base. The other end (144) of the carbon nanotube extends outwardly away from the top of the conductive base. The modifying layer (16) is uniformly distributed and coated onto at least the surface of the other end of the carbon nanotube. The work function of the modifying layer is lower than that of the carbon nanotube.
