Shifter assembly including bezel lock and release mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 11, 2009
Grant Date -
Nov 2, 2006
app pub date -
Apr 18, 2006
filing date -
Apr 27, 2005
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

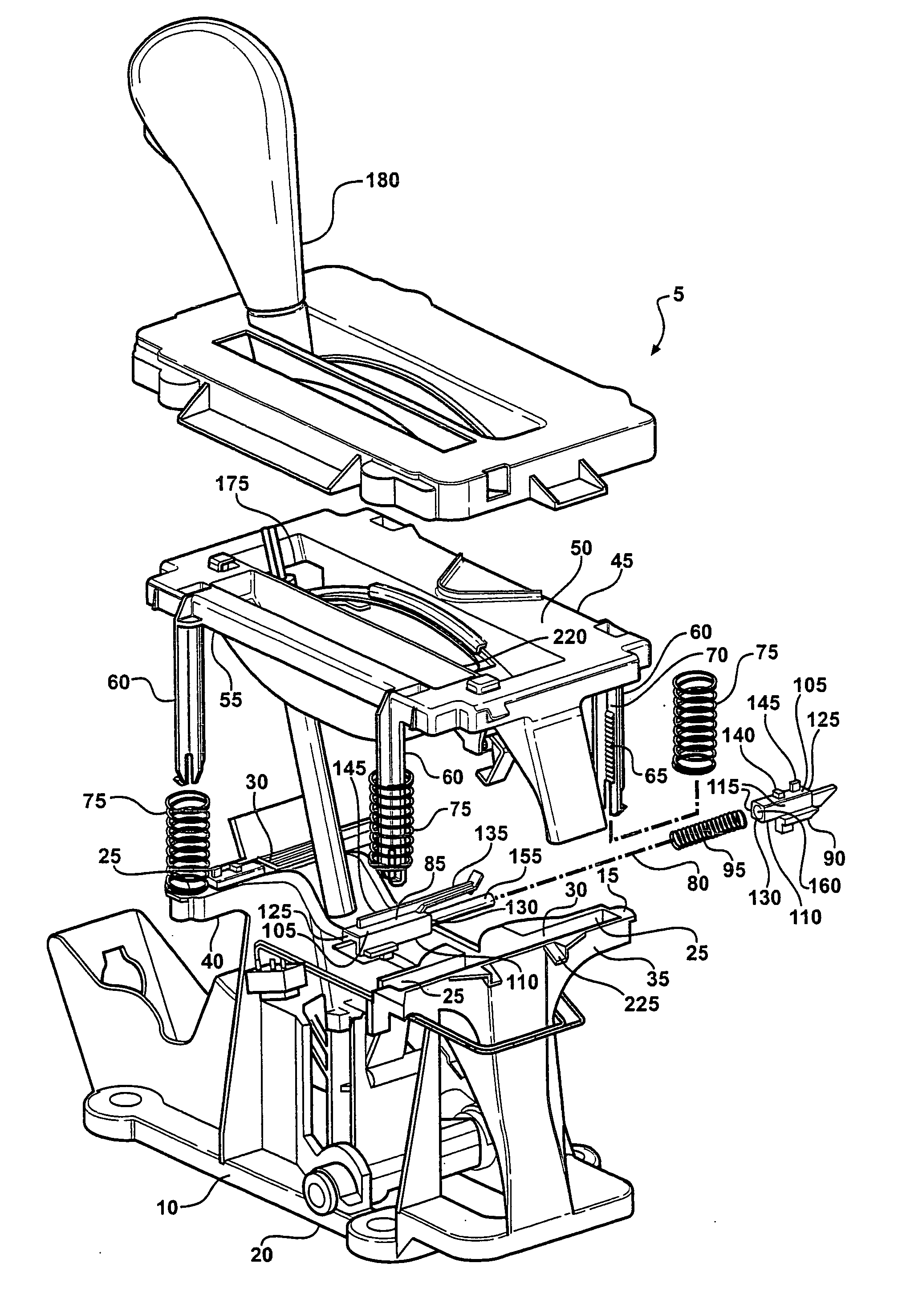

A shifter assembly includes a base having top and bottom surfaces. A shift lever is coupled to the base. A light box includes top and bottom surfaces and is disposed about the base. The light box includes a lever slot formed through the top surface for receiving the shift lever. The light box also includes a travel guide. At least one spring is disposed between the top surface of the base and the bottom surface of the light box for biasing the light box from the base. A release member is disposed in the travel guide and is also releasably coupled to the base. The release member is adapted to contact the shift lever to initiate movement of the light box from a starting position to a final position.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
DURA GLOBAL TECHNOLOGIES INC | 2791 RESEARCH DRIVE ROCHESTER HILLS MI 48309-3575 |
International Classification(s)
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Blondeel, Chad A | Newaygo , US | 2 | 9 |
# of filed Patents : 2 Total Citations : 9 | |||
Fugate, Scott B | Linden , US | 2 | 9 |
# of filed Patents : 2 Total Citations : 9 | |||
Rezmer, Norman D | Hampshire , US | 2 | 9 |
# of filed Patents : 2 Total Citations : 9 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Apr 05, 2022 | I | Issuance | |
Sep 03, 2020 | FEPP | FEE PAYMENT PROCEDURE | free format text: ENTITY STATUS SET TO SMALL (ORIGINAL EVENT CODE: SMAL); ENTITY STATUS OF PATENT OWNER: SMALL ENTITY |
Aug 31, 2020 | F | Filing | |
Aug 31, 2020 | FEPP | FEE PAYMENT PROCEDURE | free format text: ENTITY STATUS SET TO UNDISCOUNTED (ORIGINAL EVENT CODE: BIG.); ENTITY STATUS OF PATENT OWNER: SMALL ENTITY |
