Article display device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 4, 2009
Grant Date -
N/A
app pub date -
Mar 24, 2005
filing date -
Mar 24, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

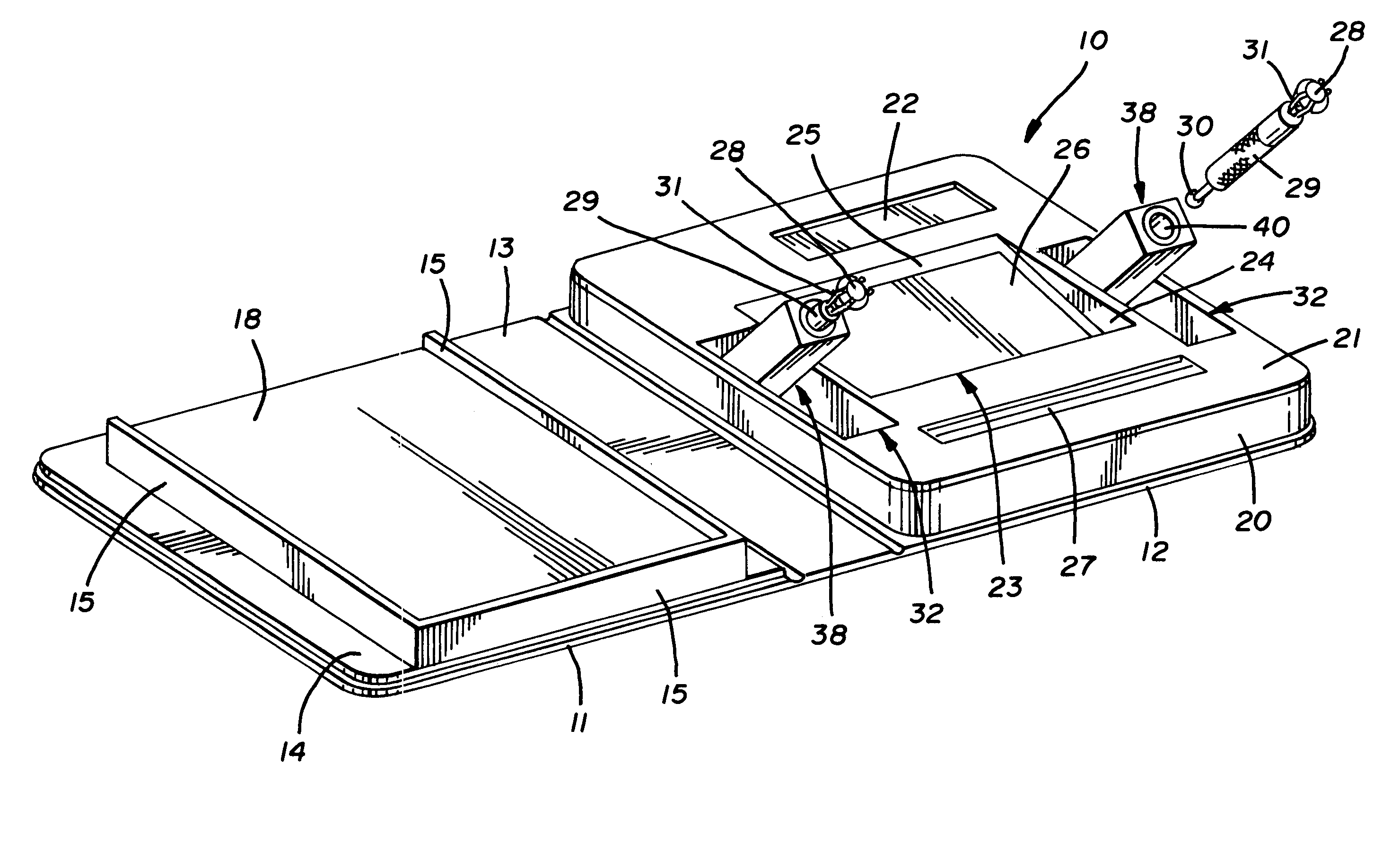

A device (10) for carrying and displaying articles includes a cover portion (11) and a base portion (12) interconnected by a spine (13). The base portion (12) includes a pedestal (20) with pockets (32) formed therein. The pockets (32) each carry an arm (38) which is pivotal from a first position within the pocket (32) to a second position partially outside the pocket (32). A magnet (52) maintains the arm (38) in the second position. The arm (38) is provided with a recess (40) sized to receive a gem holder (29) which can carry a diamond (28). The cover portion (11) can carry a pad (18) of paper, and the base portion (12) can be provided with a slot (27) to receive other articles. An article receiving area (23) can also be provided to carry information relating to the articles being displayed.
First Claim
Other Claims data not available
