Void formation for semiconductor junction capacitance reduction
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 14, 2009
Grant Date -
Feb 7, 2008
app pub date -
Aug 7, 2006
filing date -
Aug 7, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

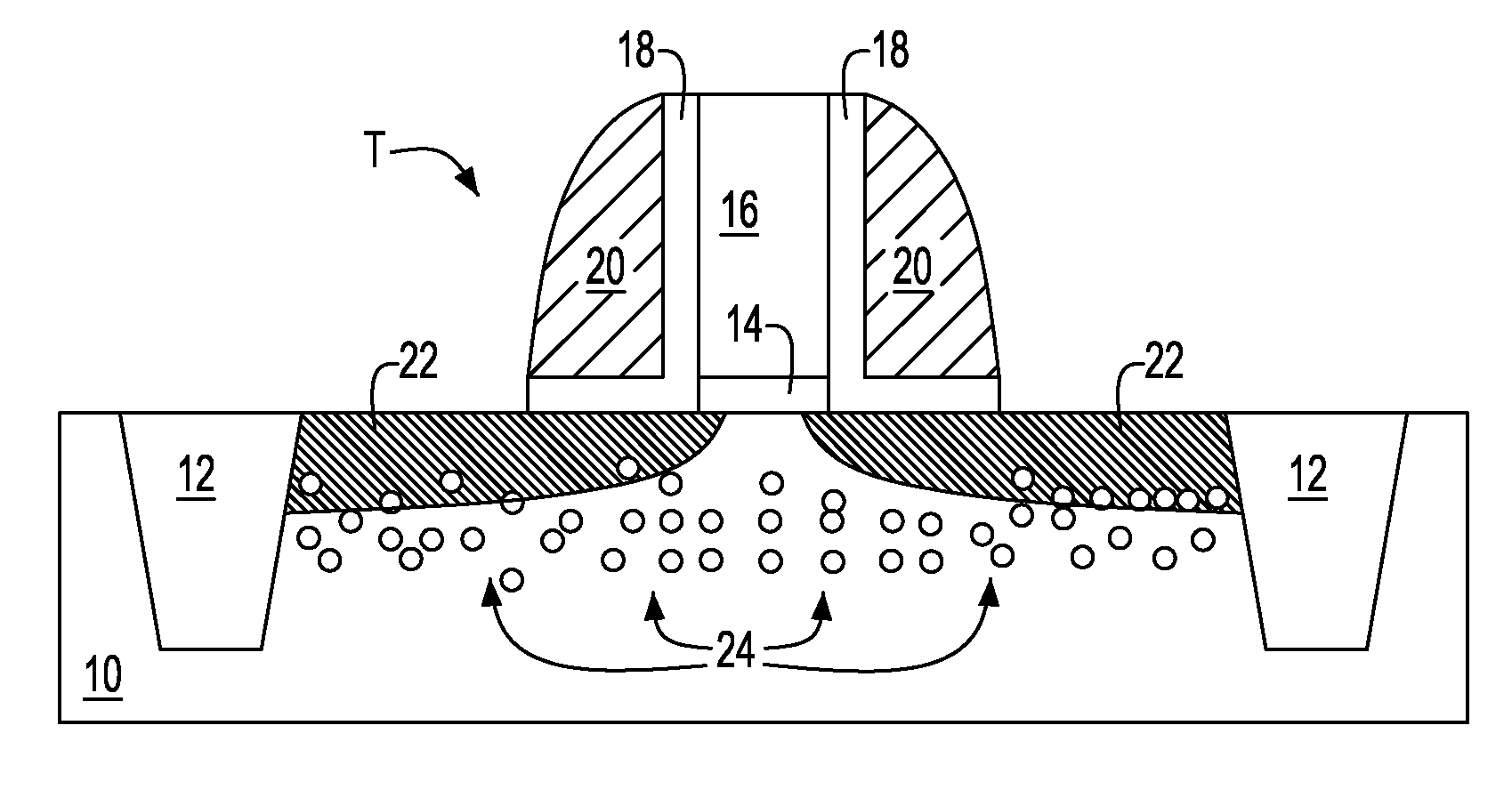

Semiconductor structures having a decreased semiconductor junction capacitance of a semiconductor junction within an active semiconductor layer may be fabricated using an ion implantation and thermal annealing method. The ion implantation and thermal annealing method provides for a plurality of voids located completely within the active semiconductor layer proximate to the semiconductor junction located within the active semiconductor layer, absent stressing of the active semiconductor layer.
