Monorail sortation system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 14, 2009
Grant Date -
Feb 2, 2006
app pub date -
Oct 16, 2003
filing date -
Oct 16, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

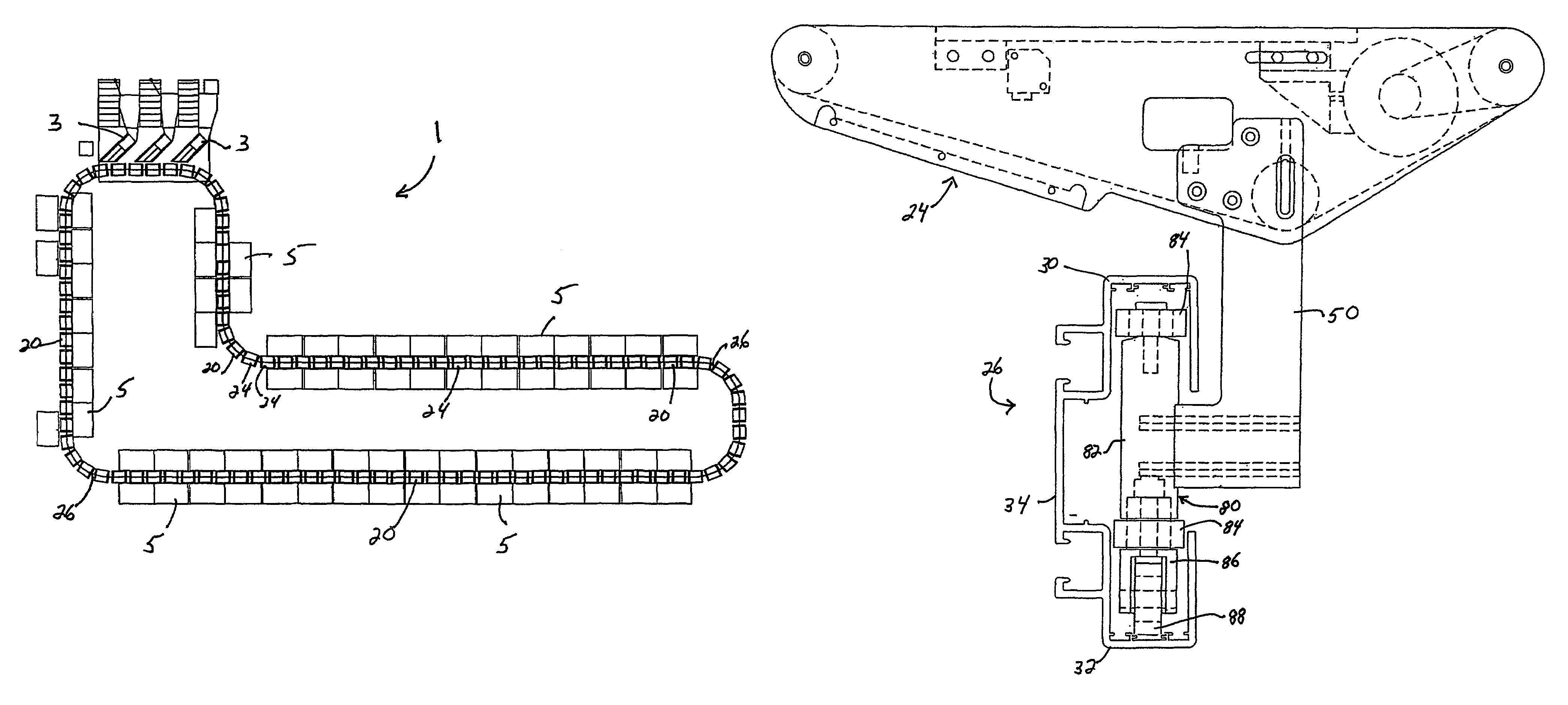

A universal cross belt sorter system (1) consisting of four major components: a monorail track (26), a drive car (20), multiple cross belt cars (24) and system controls. The drive cars (20) pull multiple cross belt cars (24) along the track (26). The cross belt cars (24) are typically loaded with material, which is then discharged into outlets. An outlet may be a chute, a bin, a conveyor, a truck, etc. Sortation systems are typically used to consolidate material according to selected pa-rameters, such as zip code, customer order, to replenish a specific store and many other identifying information. The cross belt cars (24) are loaded with material at induction areas (3). The types or methods of inducting material onto the cross belt cars (24) range from manual to semi-automatic to fully automatic.
First Claim
Other Claims data not available
