Super trench MOSFET including buried source electrode
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 7, 2009
Issued Date -
N/A
app pub date -
Jan 26, 2007
filing date -
Apr 30, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

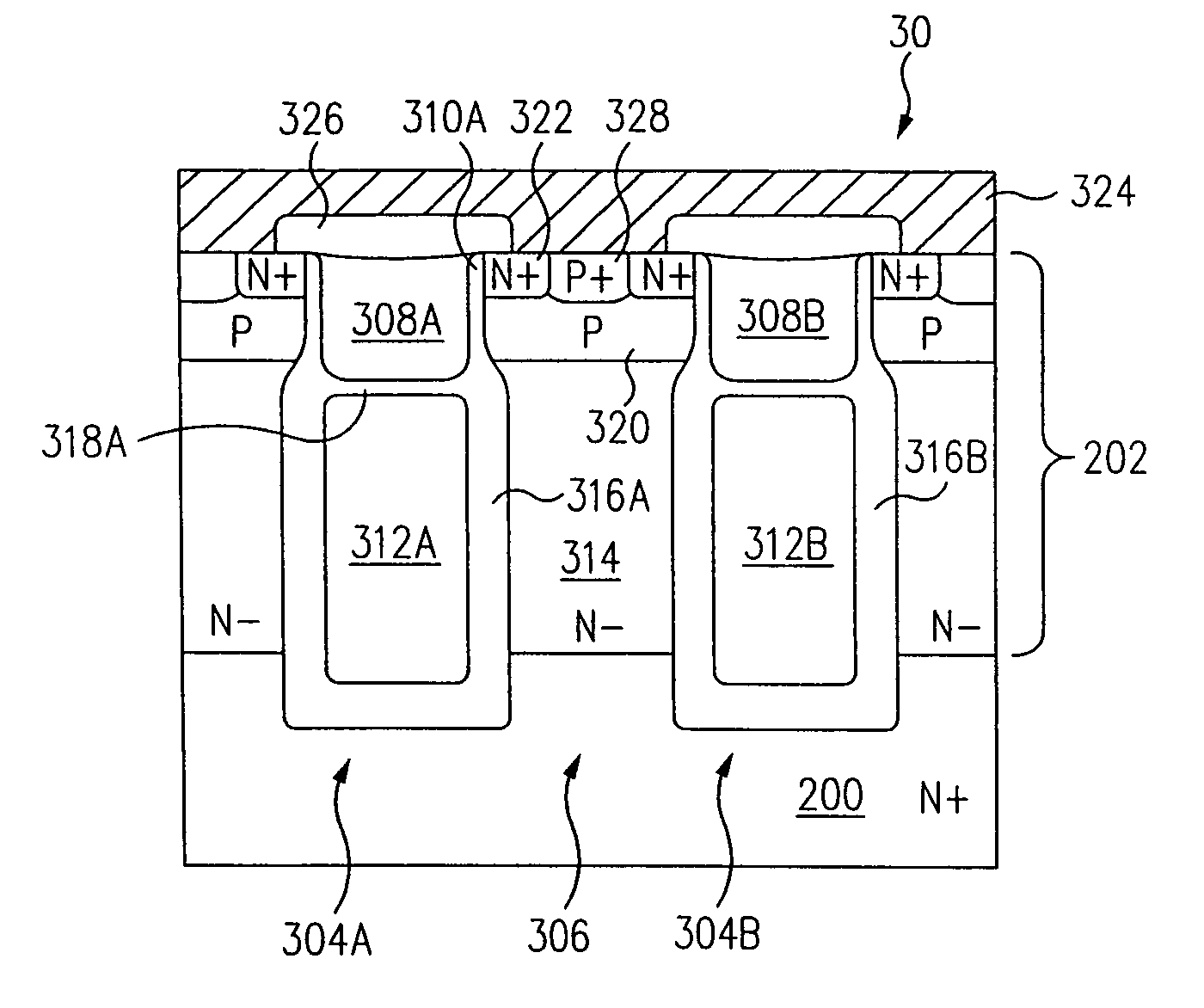

In a trench MOSFET, the lower portion of the trench contains a buried source electrode, which is insulated from the epitaxial layer and semiconductor substrate but in electrical contact with the source region. When the MOSFET is in an “off” condition, the bias of the buried source electrode causes the “drift” region of the mesa to become depleted, enhancing the ability of the MOSFET to block current. The doping concentration of the drift region can therefore be increased, reducing the on-resistance of the MOSFET. The buried source electrode also reduces the gate-to-drain capacitance of the MOSFET, improving the ability of the MOSFET to operate at high frequencies. The substrate may advantageously include a plurality of annular trenches separated by annular mesas and a gate metal layer that extends outward from a central region in a plurality of gate metal legs separated by source metal regions.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | B2 | US7183610 | Apr 30, 2004 |
| EP | B1 | EP2068364 | Apr 26, 2005 |
| JP | B2 | JP5007223 | Apr 26, 2005 |
| WO | A2 | WO2005112128 | Apr 26, 2005 |
| CN | C | CN100533767 | Apr 26, 2005 |
| EP | A2 | EP1741140 | Apr 26, 2005 |
| KR | B1 | KR101051507 | Apr 26, 2005 |
| US | B2 | US7704836 | Mar 31, 2008 |
| US | A1 | US20100019316 | Sep 29, 2009 |
| JP | A | JP2012054591 | Nov 01, 2011 |
| JP | B2 | JP5616874 | Nov 01, 2011 |
