Pyrotechnic charge

United States of America Patent

Stats

Jul 7, 2009
Grant Date
Jan 19, 2006
app pub date
May 11, 2005
filing date
May 19, 2004

priority date (Note)
Expired

status (Latency Note)

Importance

Loading Importance Indicators... loading....

Abstract

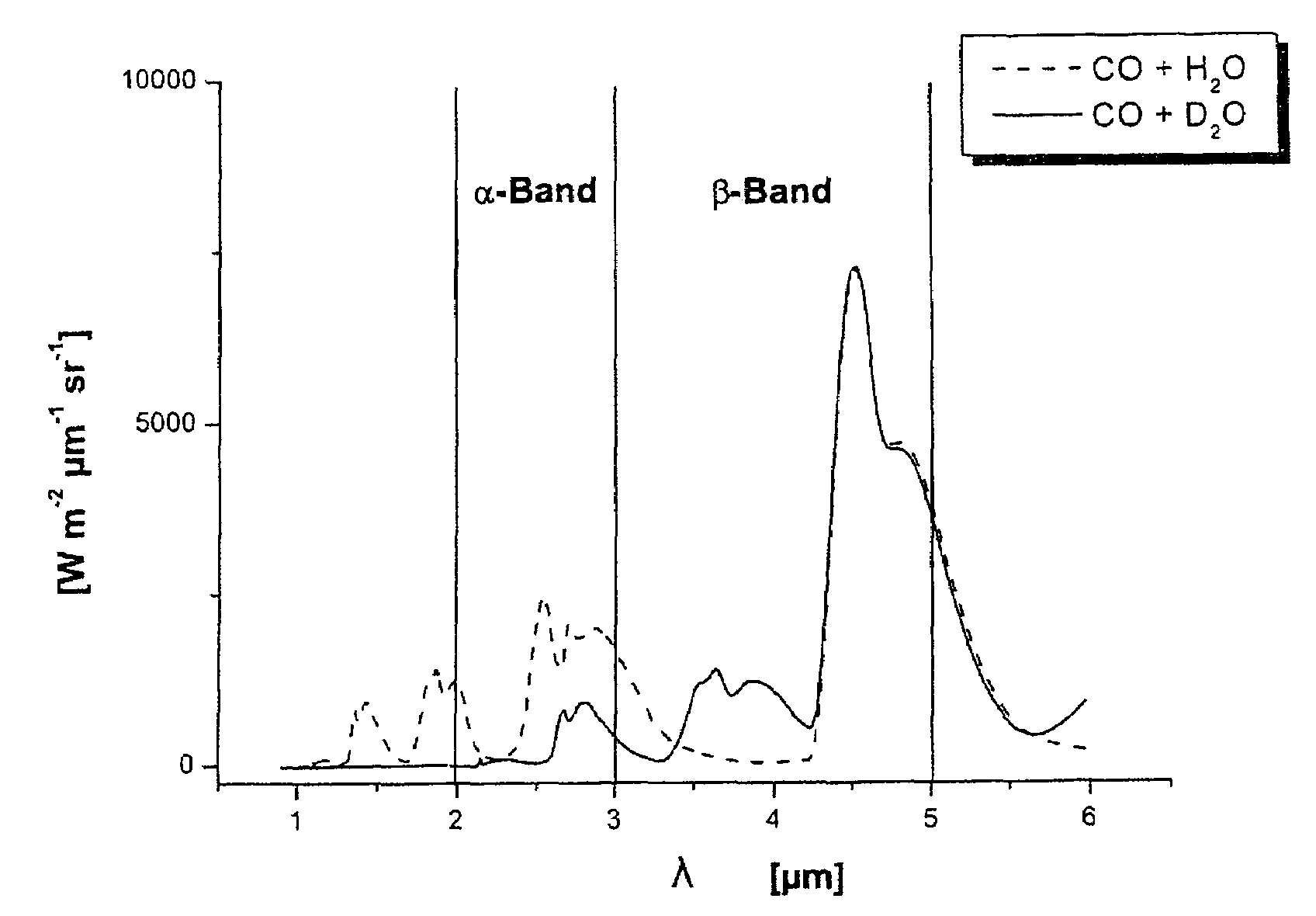

A pyrotechnic charge for producing IR radiation is proposed, in which a deuterated compound is contained as fuel and/or as oxidizing agent or as fuel, as oxidizing agent and/or as binder. The use of such a pyrotechnic charge leads to a greater selective radiant emission in the β-band and at the same time to a reduced selective radiant emission in the α-band, so that the signature of a decoy is adapted to that of an aircraft.
