Method and device for testing coins
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 30, 2009
Grant Date -
Jul 27, 2006
app pub date -
Feb 19, 2004
filing date -
Feb 19, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

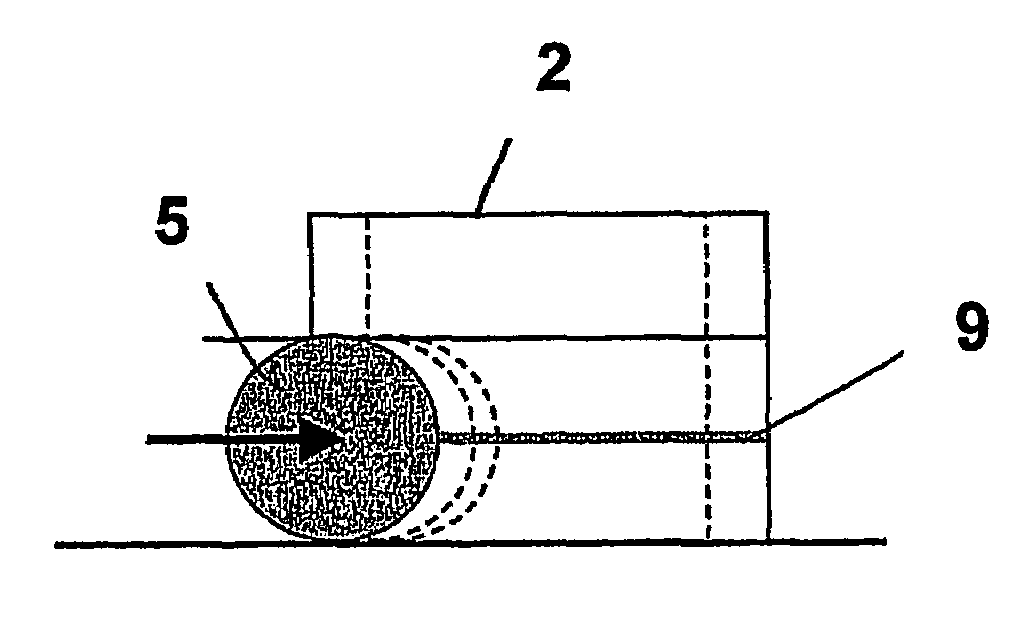

Disclosed is a method and device for testing coins which are placed in a coin acceptor unit and which are displaced in front of an image sensor consisting of lines and columns, whereby said image sensor records an image of the coins that are to be tested. At least one of the front columns in the direction of movement of said coins and/or at least one line of the image sensor captures parameters, which in conjunction with the temporal detection information, are used to provide information on the movement of said coins. It is determined independently from said parameters when the coin will appear in a desired overlap area for recording, whereby the image sensor is shifted into an activation mode of the columns and lines of the overlap area and recording is triggered.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A1 | WO2004075124 | Feb 19, 2004 |
| CA | C | CA2516111 | Feb 19, 2004 |
| JP | B2 | JP4543029 | Feb 19, 2004 |
| EP | B1 | EP1599844 | Feb 19, 2004 |
International Classification(s)
- 2004 Application Filing Year
- G07D Class
- 78 Applications Filed
- 39 Patents Issued To-Date
- 50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G07D Class
- 0 % this patent is cited more than
- 16 Age
