Hinge and support system for an intermediate deck in a trailer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 23, 2009
Grant Date -
Mar 22, 2007
app pub date -
Oct 29, 2004
filing date -
May 21, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

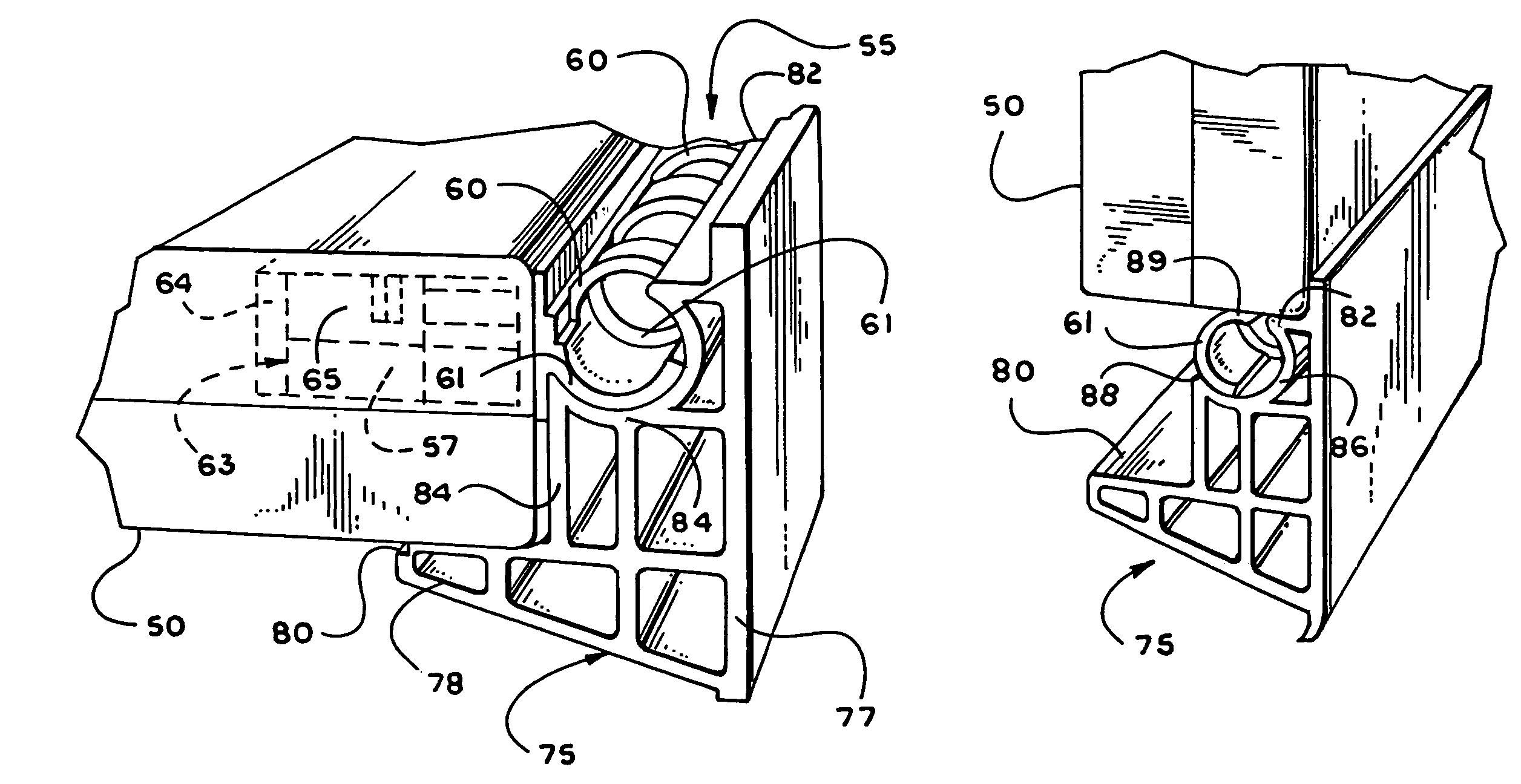

A hinge and support system for supporting cargo in a freight compartment is provided. The system includes a hinge member, associated with a deck panel, which has at least one flexible projection. The hinge member mates with a support member having a pocket for which the hinge member's flexible projections can be snapped into and retained within so as to allow pivotal movement of the hinge member with respect to the support member. The hinge member is also movably supported by the deck panel so that the hinge member can move relative to the deck panel when the deck panel is deployed. The support member includes one ledge which engages the deck panel when deployed and a second ledge which engages the panel when stowed upright so as to substantially isolate the hinge member from the weight of the deck panel and items placed on it. The hinge structure can be utilized in other contexts.
First Claim
Other Claims data not available
