Gas generating system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 26, 2009
Grant Date -
Nov 23, 2006
app pub date -
Feb 21, 2006
filing date -
Feb 22, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

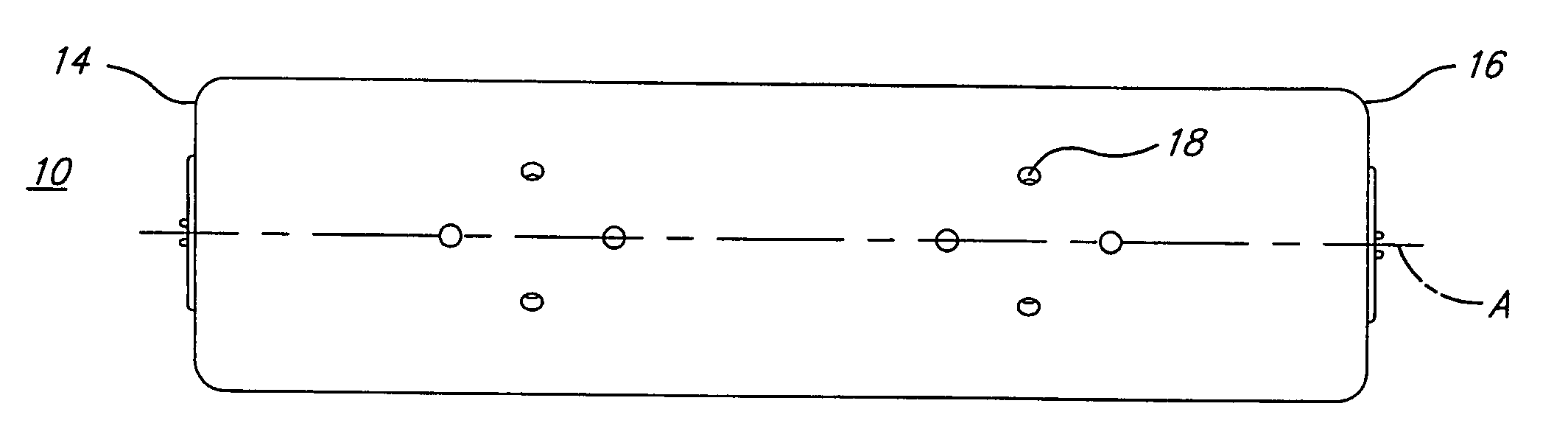

A gas generating system (10) is provided including a housing (12) with a longitudinal axis (A), and a first baffle tube (22a) positioned within the housing (12) and having a pair of opposed ends. A second baffle tube (24a) is also positioned within the housing (12) and has a pair of opposed ends. A first pair of opposed surfaces (59a, 60a) is formed within the housing (12). Each of the first pair of opposed surfaces (59a, 60a) is sloped with respect to the longitudinal axis (A) and abuts a corresponding end of the first baffle tube (22a) to position the first baffle tube (22a) within the housing (12) such that a longitudinal axis of the first baffle tube (22a) is substantially coaxial with the longitudinal axis (A) of the housing (12). Each of the first pair of opposed surfaces (59a, 60a) also abuts a corresponding end of the second baffle tube (24a) to position the second baffle tube (24a) within the housing (12) such that a longitudinal axis of the second baffle tube (24a) is substantially coaxial with the longitudinal axis (A) of the housing (12). A vehicle occupant protection system (180) including the gas generating system (10) is also disclosed.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60R Class
- 1.62 % this patent is cited more than
- 16 Age
