Receiving device comprising an adjustable covering element
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 21, 2009
Grant Date -
Dec 29, 2005
app pub date -
Sep 29, 2003
filing date -
Oct 2, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

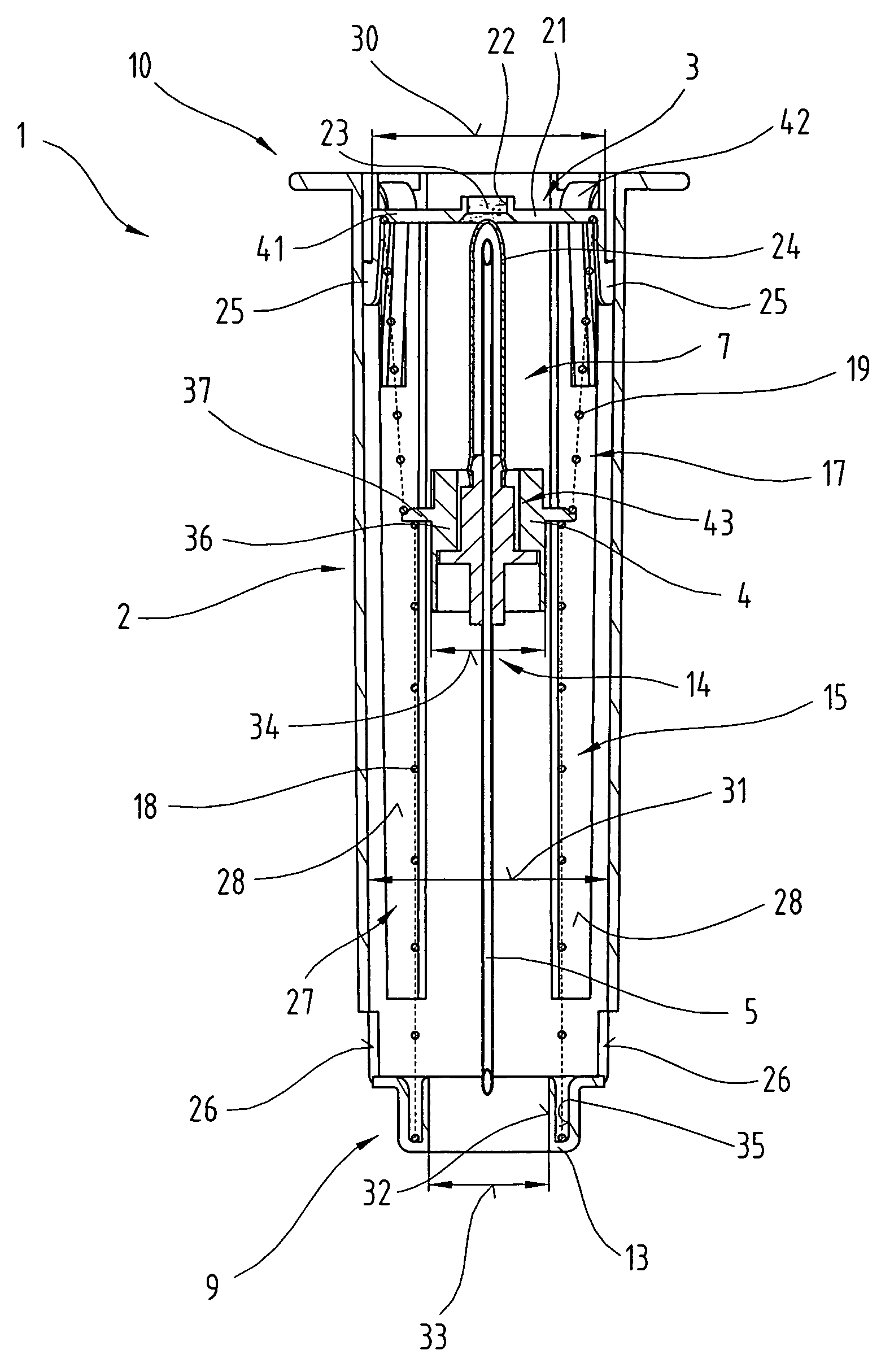

The invention relates to a holding device (1) with a holding container (2) for a holding vessel, in particular a blood sample collecting tube, in which the holding container (2) surrounds a holding chamber (7) with a container wall (6), and in the direction of a longitudinal axis (8) comprises a proximal and a distal end (9, 10) spaced part from one another, with a needle holder (4) for a needle arrangement (14) that can be attached thereto, with a first adjusting device (15) for the needle holder (4) and with a cover element (3) for the needle arrangement (14) mountable on the needle holder (4) in the disposal position of the needle holder (4). The cover element (3) is arranged in the position of use of the needle holder (4) adjacent thereto on the side furthest from the proximal end (9) in the holding chamber (7) and is arranged with an if necessary releasable locking device (16) between the cover element (3) and the holding container (2) in the position of use relative to the latter, whereby between the needle holder (4) and the cover element (3) a further adjusting device (17) is arranged.
First Claim
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2003 Application Filing Year
- A61B Class
- 5165 Applications Filed
- 3113 Patents Issued To-Date
- 60.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 50 Citation Count
- A61B Class
- 65.52 % this patent is cited more than
- 16 Age
