Calibration method for a parallel kinematic mechanism machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 21, 2009
Grant Date -
Nov 16, 2006
app pub date -
Apr 28, 2006
filing date -
May 16, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

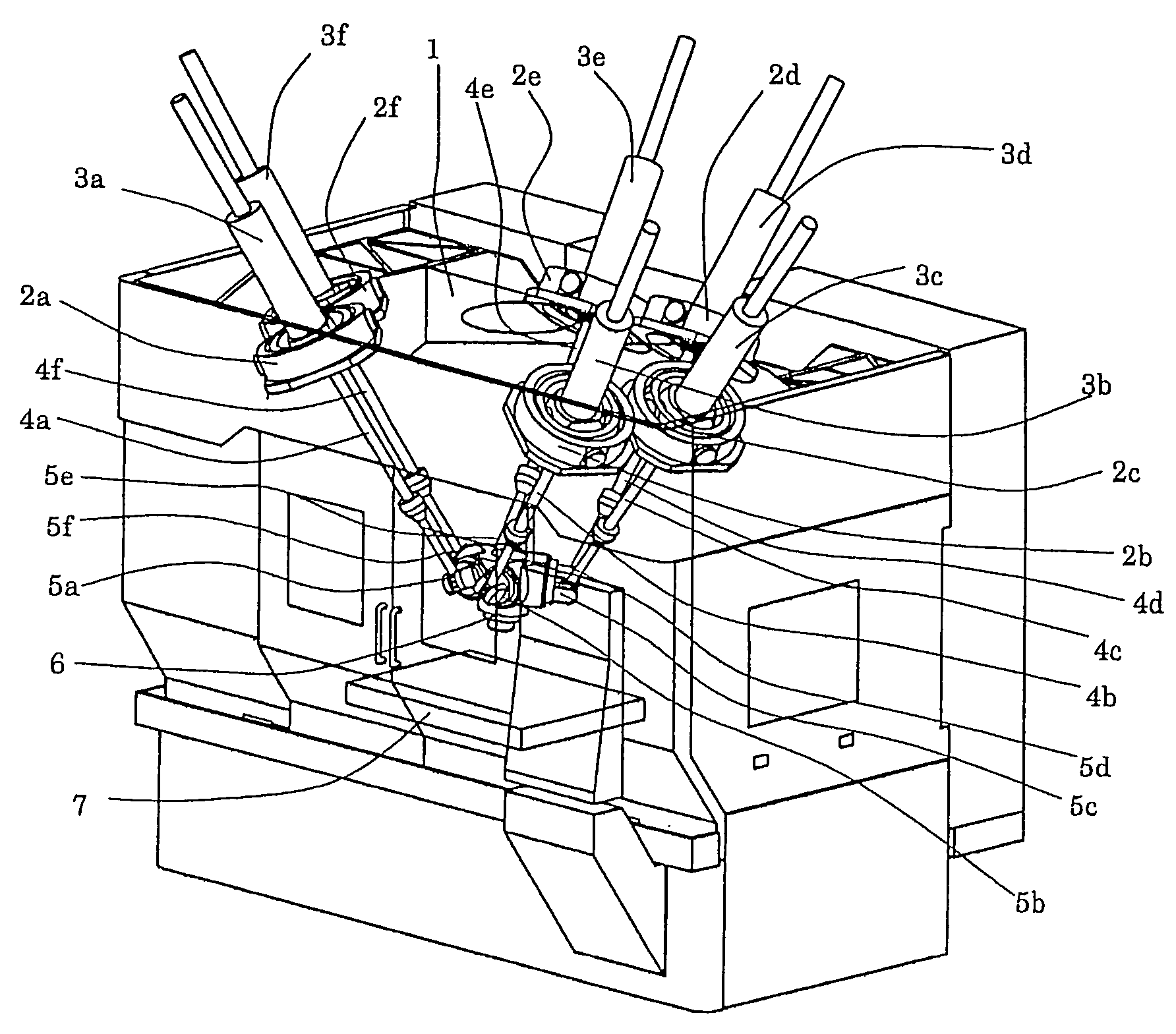

Kinematic parameters of a parallel kinematic machine can be estimated with high precision considering thermal displacement and error of a measuring device, in addition to deformation error caused by self-weight of each component. A DBB device is used when end effectors of a parallel kinematic mechanism machine are positioned at plural positions and in plural postures. In the DBB device, a plurality of support bars are provided with rigid balls on the both ends. One of the balls is fixed on a table and the other ball is provided with an end effector. The position, posture, and distance from a fixed position are measured and based on the measured value kinematic parameters are estimated. In estimating the kinematic parameters, any of deformation error caused by self-weight of each component, thermal displacement of each component, error of a measuring device are added for computation by linear approximation.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G01B Class
- 3.04 % this patent is cited more than
- 16 Age
