Control mechanism for a chair
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 7, 2009
Grant Date -
Aug 28, 2008
app pub date -
May 1, 2008
filing date -
Mar 1, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

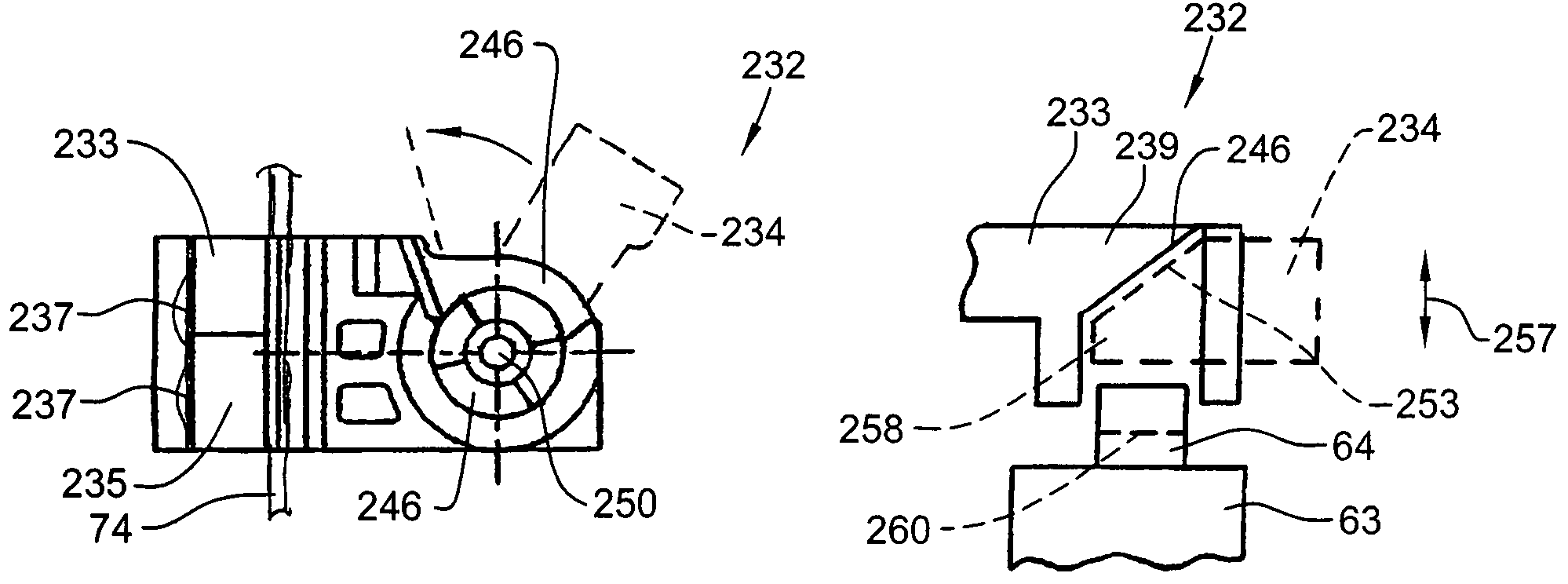

A tilt control mechanism for an office chair includes a spring assembly therein which controls the tilt tension on the back assembly. The tilt control mechanism includes a control plate mounted to the control shaft on which the uprights are mounted, wherein the control plate rotates in combination with the uprights. This control plate is located within the control body and cooperates with a front stop assembly and a back stop assembly to vary the limits of forward and rearward tilting of the seat and back assemblies. Also, the tilt control mechanism includes a pneumatic actuator assembly having fixed and rotatable cam blocks. The rotatable cam block rotates relative to the fixed block such that the rotatable cam block is driven downwardly to depress the control valve of the pneumatic cylinder and thereby vary the height of the seat assembly.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2008 Application Filing Year
- A47C Class
- 746 Applications Filed
- 453 Patents Issued To-Date
- 60.73 % Issued To-Date
