Systems and methods for mounting flat panel video displays
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 7, 2009
Grant Date -
May 31, 2007
app pub date -
Sep 6, 2006
filing date -
Sep 6, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

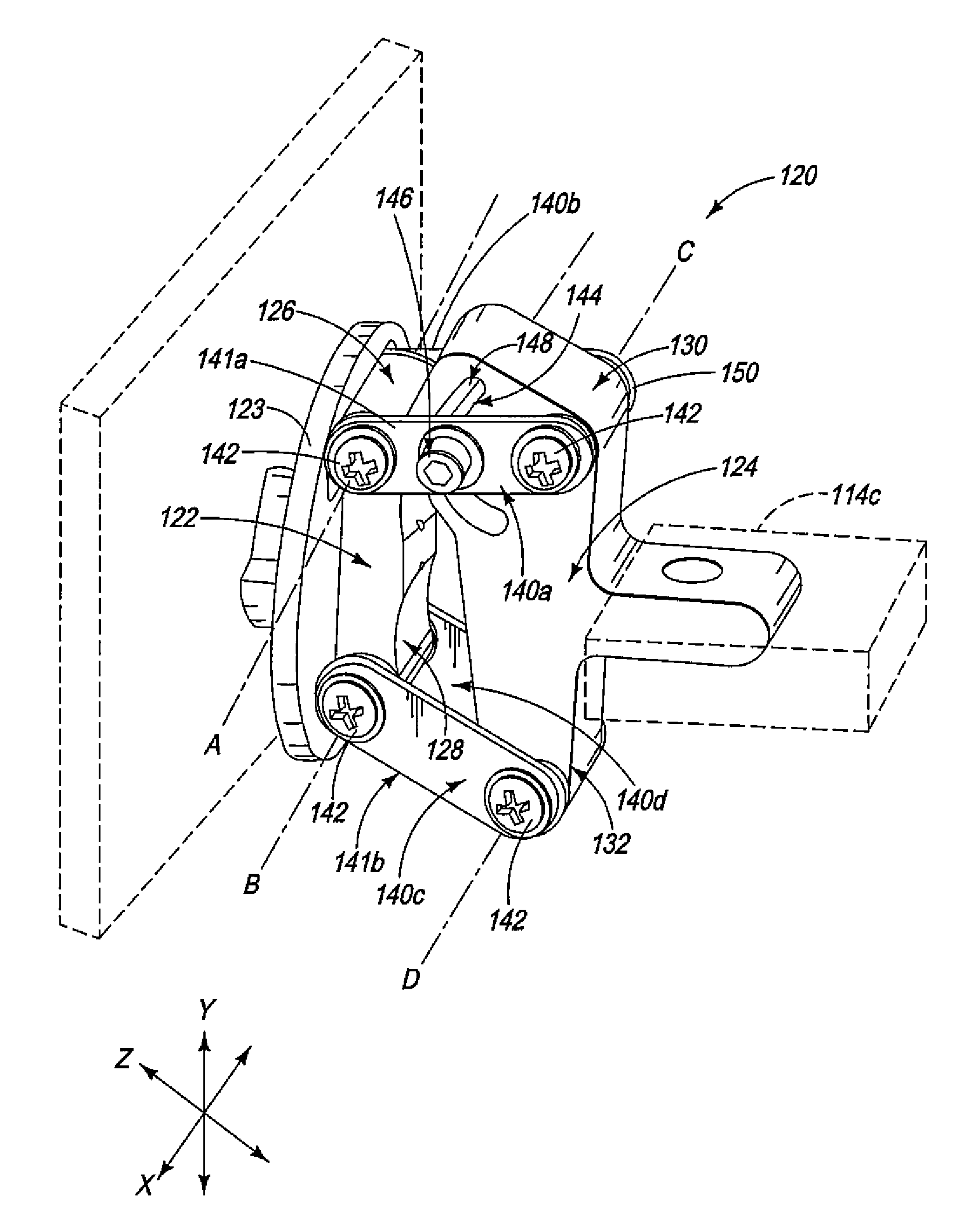

Systems and methods for mounting flat panel video displays are disclosed herein. Several aspects of the invention are directed to a mounting assembly for adjustably mounting a flat panel video display. The mounting assembly can be carried by a mounting device attached to a support medium (e.g., a wall or other support structure). The mounting assembly includes a first body portion and a second body portion. The mounting assembly also includes a first link and a second link spaced apart from the first link to operably couple the first body portion to the second body portion. The first and second links are positioned to cooperatively move relative to each other to pivotably move the first body portion relative to the second body portion. The mounting assembly also includes a slot in the first and/or second body portions and a locking mechanism received within the slot to releasably hold the first and second body portions in position relative to each other.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2006 Application Filing Year
- E04G Class
- 231 Applications Filed
- 114 Patents Issued To-Date
- 49.36 % Issued To-Date
