Holographic memory medium, holographic memory device and holographic recording device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 27, 2009
Grant Date -
Sep 20, 2007
app pub date -
Mar 20, 2006
filing date -
Mar 20, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

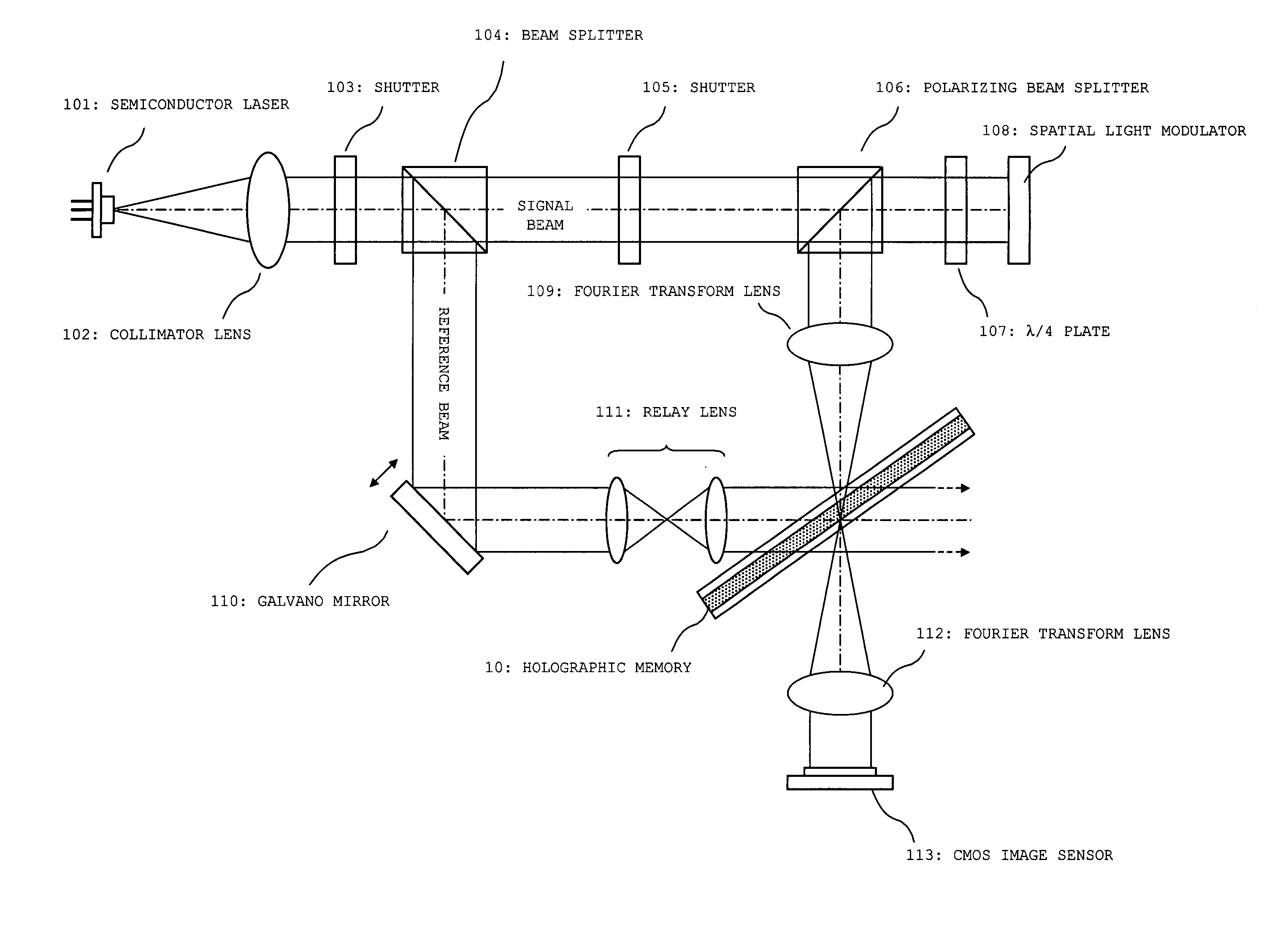

Even when a tilt error is caused in a holographic memory in a direction perpendicular to a surface including optical axes of a signal beam and a reference beam, the signal beam and the reference beam are allowed to enter the holographic memory at adequate angles relative thereto at all times by suppression of the tilt error. During recording and reproducing operations, the reference incident angle of the reference beam in the radial tilt direction is detected based on a received light state. A tilt actuator for displacing the holographic memory medium in the radial tilt direction is driven to adjust an incident angle of the reference beam in the radial tilt direction to the reference angle Sr. Then, the signal beam and the reference beam are emitted to the holographic memory medium to execute the recording and reproducing operations.
First Claim
Other Claims data not available
