High-pressure fixed munition for low-pressure launching system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 27, 2009
Grant Date -
Nov 23, 2006
app pub date -
Dec 20, 2004
filing date -
Feb 6, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

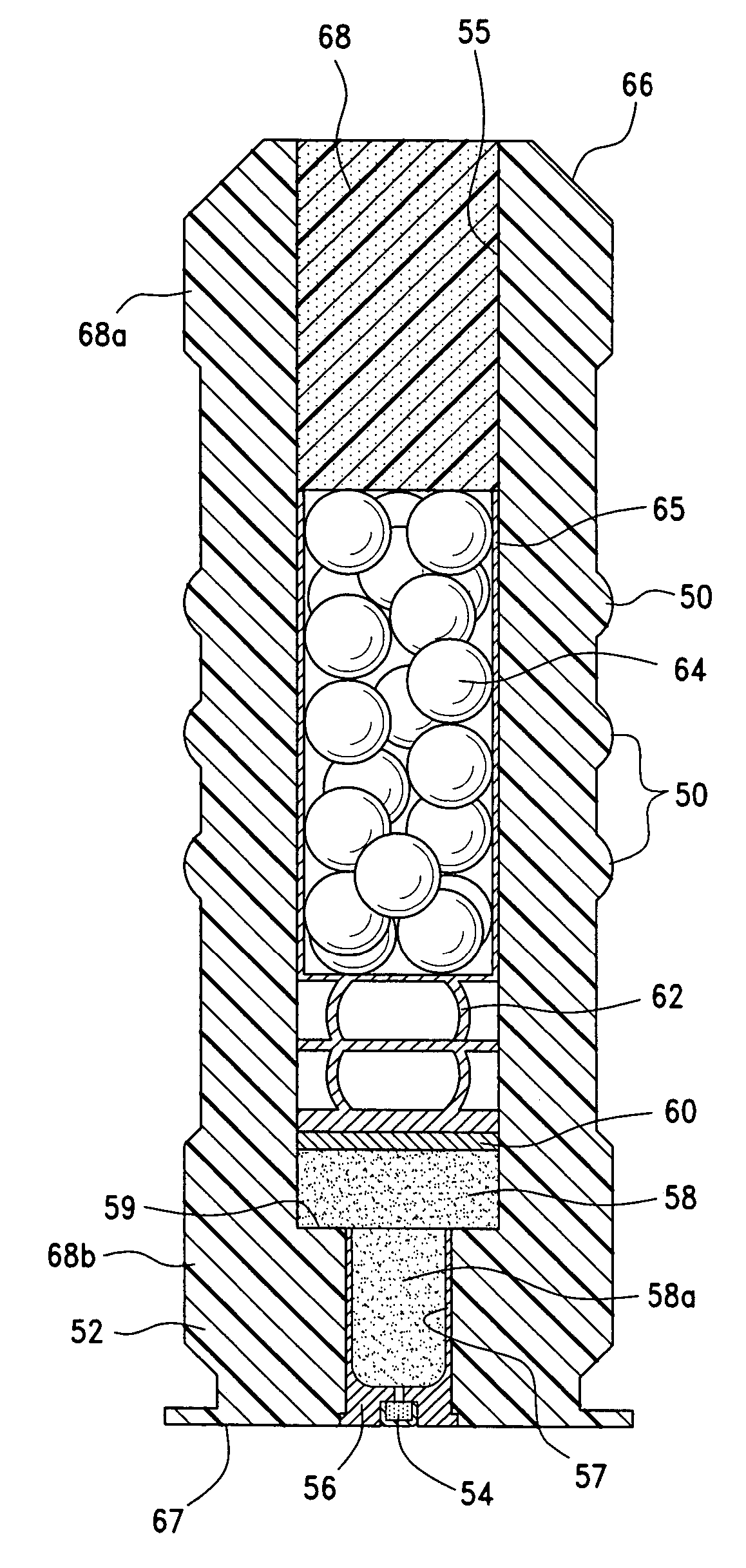

A high-pressure fixed munition for a low-pressure launching system having a cylindrical body with a centrally located bore is provided. The bore of the munition has a reduced diameter on the charge end in which a primer charge is positioned. The bore is filled above the primer charge with a propellant and above the propellant with a payload. The payload may include multiple buckshot pellets, frangible buckshot pellets, tear gas, multiple slugs, frangible slugs, paint balls, rubber pellets, bean bags, or the like. The munition may also include a pressure disk between the propellant and the payload, and tactile ridges or on the outside surface of the munition body or be of a specific color for purposes of identification of the payload.
First Claim
Other Claims data not available
