Printed board drilling method and printed board machining apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 13, 2009
Grant Date -
Dec 1, 2005
app pub date -
May 31, 2005
filing date -
Jun 1, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

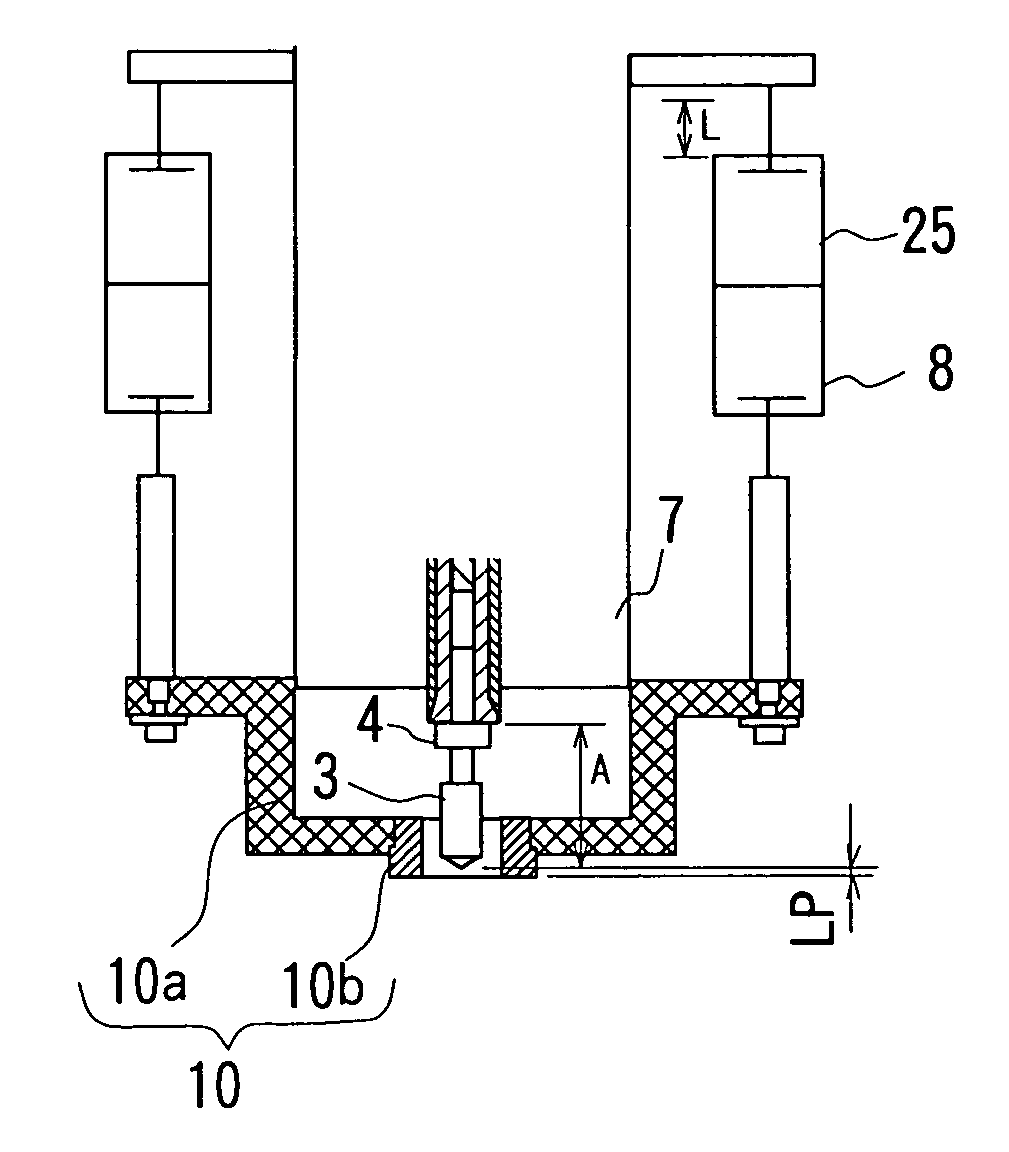

A printed board drilling method and a printed board machining apparatus capable of improving machining quality, such as improving positional accuracy of holes and true roundness of machined holes, and improving work efficiency by minimizing a runout of the tip of a drill. An extension of the drill extending out of a spindle when the drill is held by the spindle is defined in advance per type or mode of use of each drill. One drill is selected among a plurality of drills corresponding to a shape of holes to be drilled in the printed board and the spindle holds the drill so that the selected drill extends out of the spindle by the extension corresponding to the selected drill. Then, the move of the spindle with respect to the printed board is controlled and the selected drill is rotationally driven by the spindle to drill the printed board.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B23B Class
- 7.14 % this patent is cited more than
- 16 Age
