Abstract

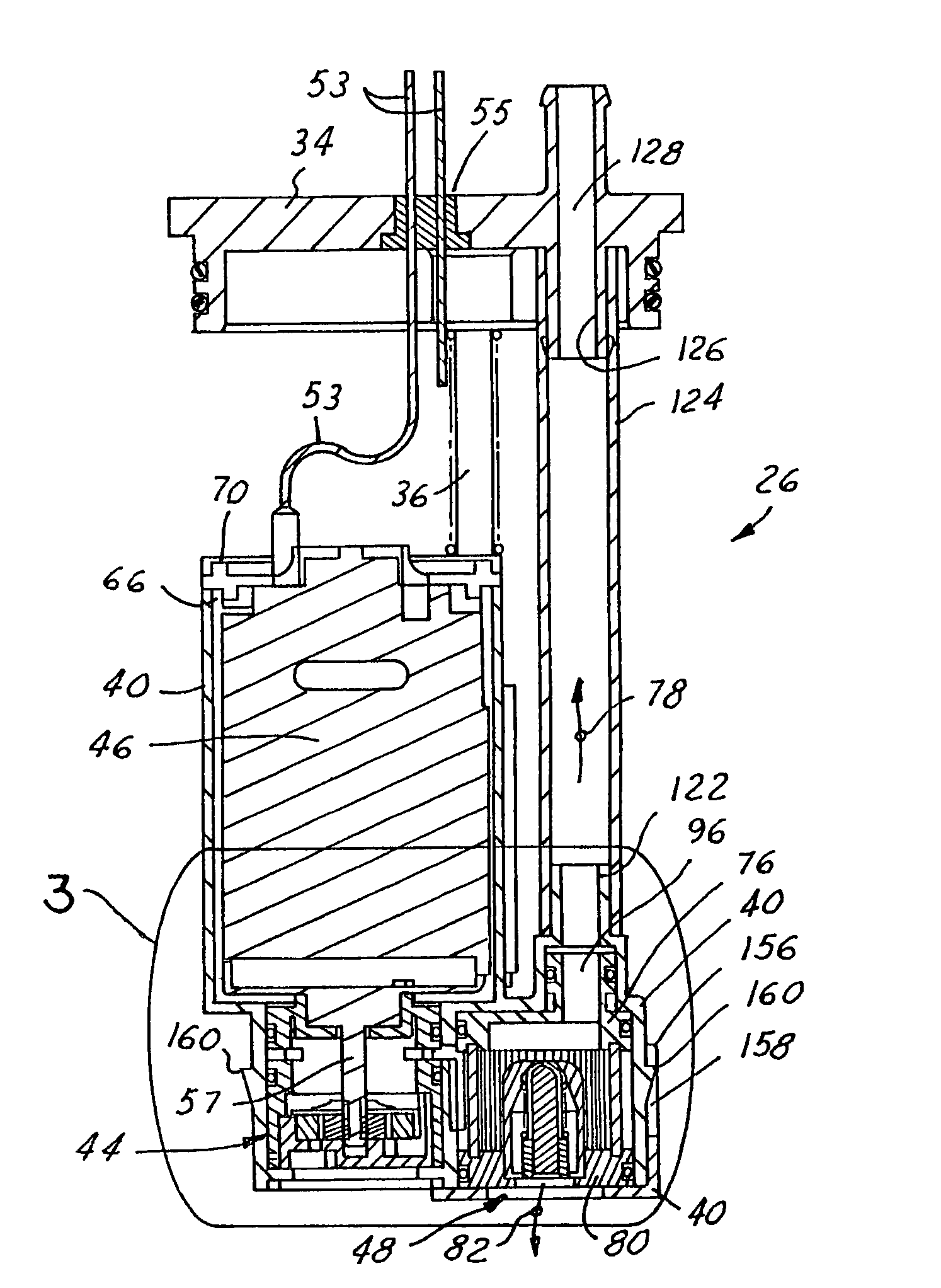

A fuel delivery system for a combustion engine has a fuel tank which defines an access hole preferably communicating through either the top wall or bottom wall of the tank. An associated top or bottom flange, both having a fuel channel for flowing fuel out of the tank, sealably covers the access hole. A fuel pump module is located in the fuel chamber of the tank and has a universal, structural, pod which engages either the top or bottom flange while preferably maintaining an axial upright position. The pod defines an axially extending first bore for housing a fuel pump and preferably an electric pump motor and a second bore defined by a cylindrical inner face and spaced radially outward from the first chamber for housing a reversible filter cartridge of the module. The pod also has a fuel discharge nozzle which generally defines a counter bore that communicates axially with the second bore. Fuel flows into the pump through an inlet defined by the pod and pressurized fuel flows from the pump and into the second bore via a fuel passage preferably defined by the pod. The filter cartridge preferably has a filter element generally spaced from the pod within the second bore for filtration efficiency by a primary end retainer and an opposite secondary end retainer. The end retainers generally seal to the pod within the second bore thus flowing all of the pressurized fuel from the fuel passage and through the filter element before being discharged from the second bore as supply fuel and/or bypass fuel. Preferably, filtered fuel flows through the primary end retainer as system supply fuel to a combustion engine and the remaining filtered fuel flows through the secondary end retainer as bypass fuel back into the fuel tank chamber.
