Yarn loop density adjustment apparatus for circular knitting machines
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 30, 2008
Grant Date -
N/A
app pub date -
Sep 11, 2007
filing date -
Sep 11, 2007
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

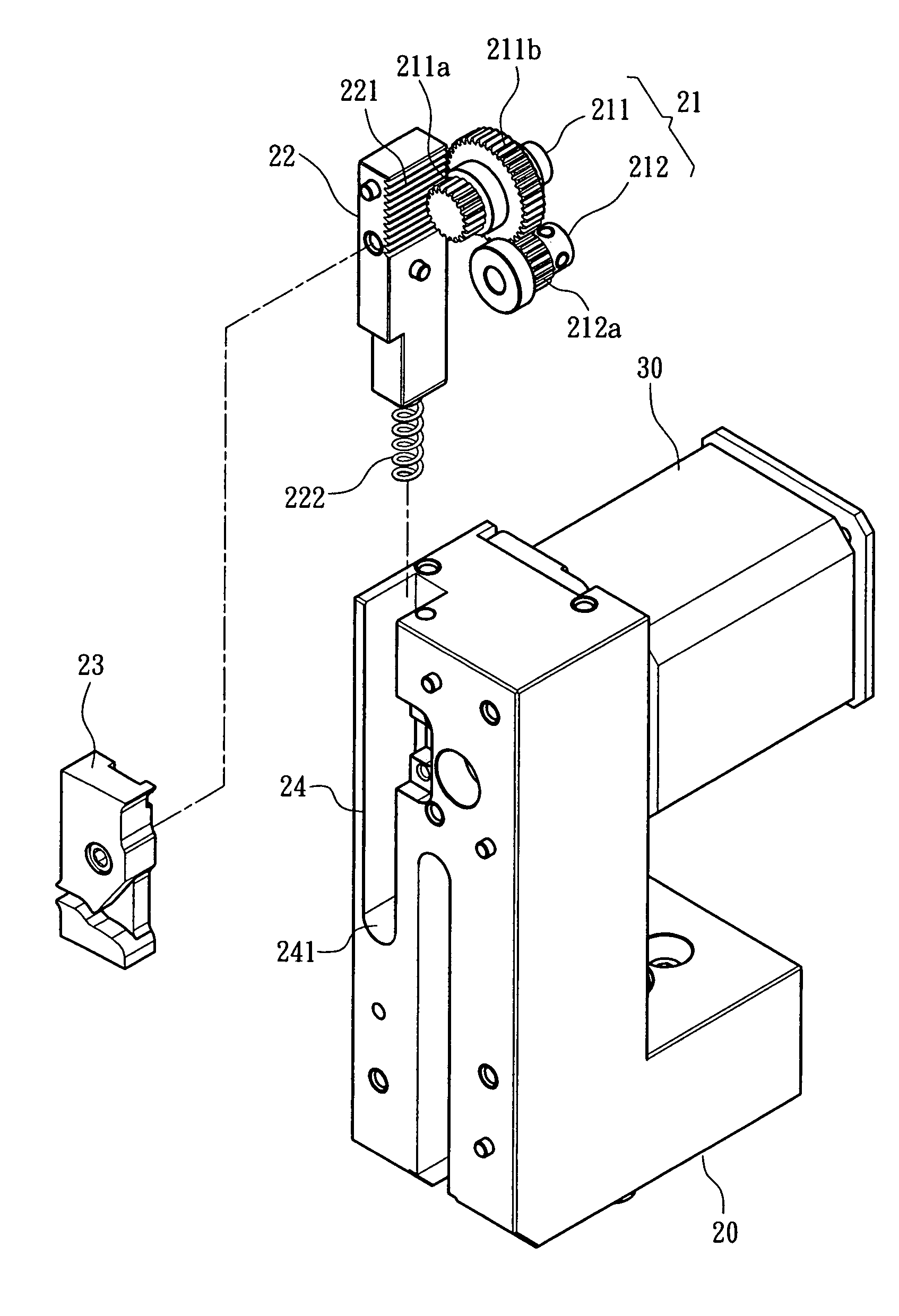

A yarn loop density adjustment apparatus for circular knitting machines is installed on a circular knitting machine which has at least one needle to draw a knitting yarn. The yarn loop density adjustment apparatus includes a saddle seat coupled on the circular knitting machine and a driving means installed on the saddle seat. The saddle seat has a transmission mechanism driven by the driving means, a slider driven by the transmission mechanism and a cam fastened to the slider to guide movements of the needle. The transmission mechanism has first teeth. The slider has second teeth corresponding to and engageable with the first teeth. When the transmission mechanism is driven by the driving means, the slider is driven to generate a moving displacement through the engaged first teeth and the second teeth.
First Claim
Other Claims data not available
