Antenna system and method for measuring the azimuth and elevation angles of an active, signal sending radiosonde
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 23, 2008
Grant Date -
Apr 6, 2006
app pub date -
Dec 16, 2003
filing date -
Dec 16, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

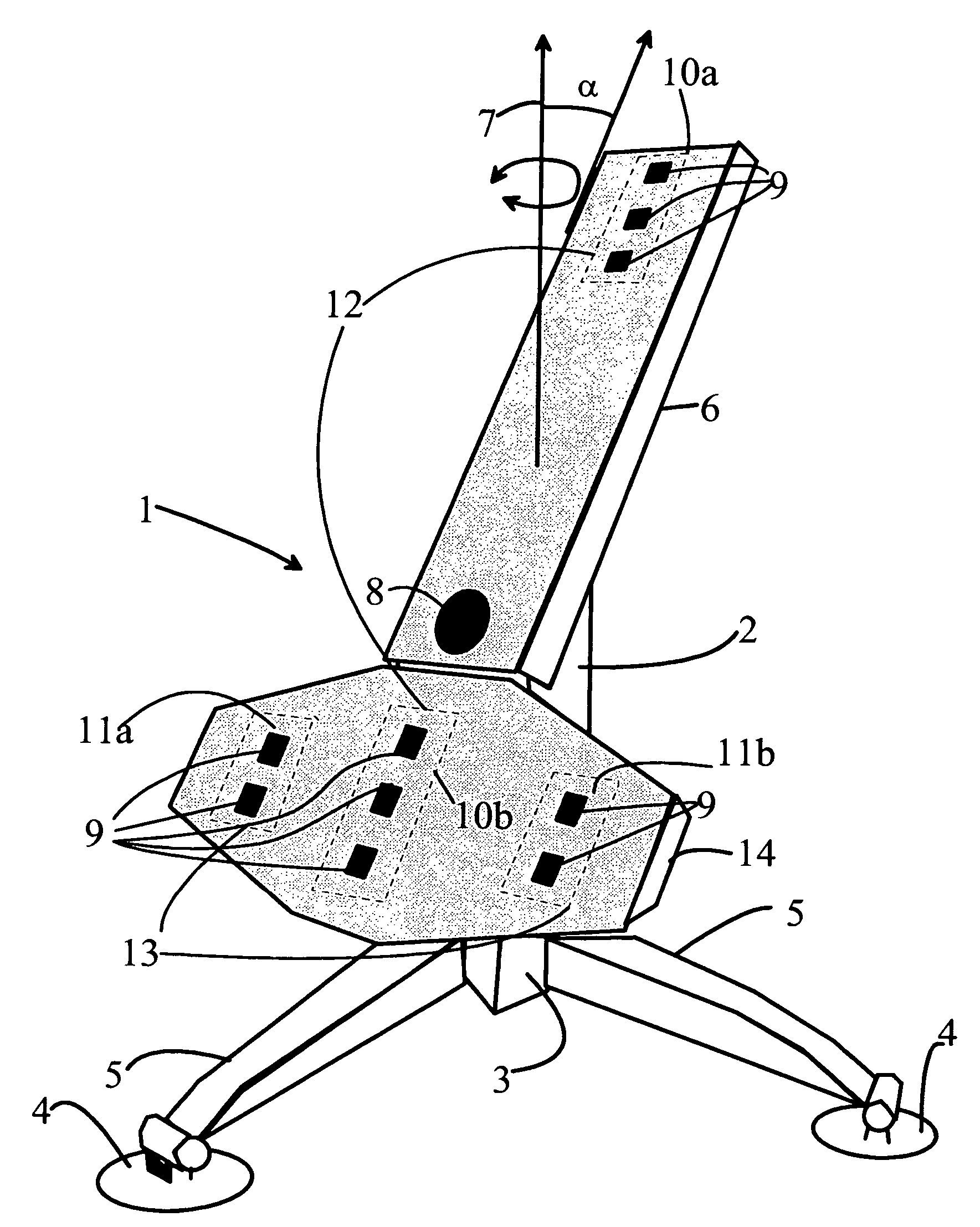

An antenna system and method for measuring azimuth and elevation angles of an active, signal sending radiosonde. The system includes a first passive antenna group having at least two antenna arrays, the direction pattern of which is wide at least in elevation plane for measuring azimuth angle based on the phase differences between the antenna arrays, a second passive antenna group having at least two antenna arrays, the direction pattern of which is wide at least in elevation plane for measuring the elevation angle based on the phase differences between the antenna arrays and the rotational position of the antenna field, and at least one third antenna having high gain for receiving the telemetry signal, the direction pattern of which element is narrow in azimuth plane and wide in elevation plane. The first and second antenna groups form a solid antenna field which is fixedly tilted in a predetermined elevation position.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H01Q Class
- 2.30 % this patent is cited more than
- 17 Age
