Replacement and alignment of laser
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 16, 2008
Grant Date -
Dec 14, 2006
app pub date -
May 25, 2006
filing date -
May 26, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

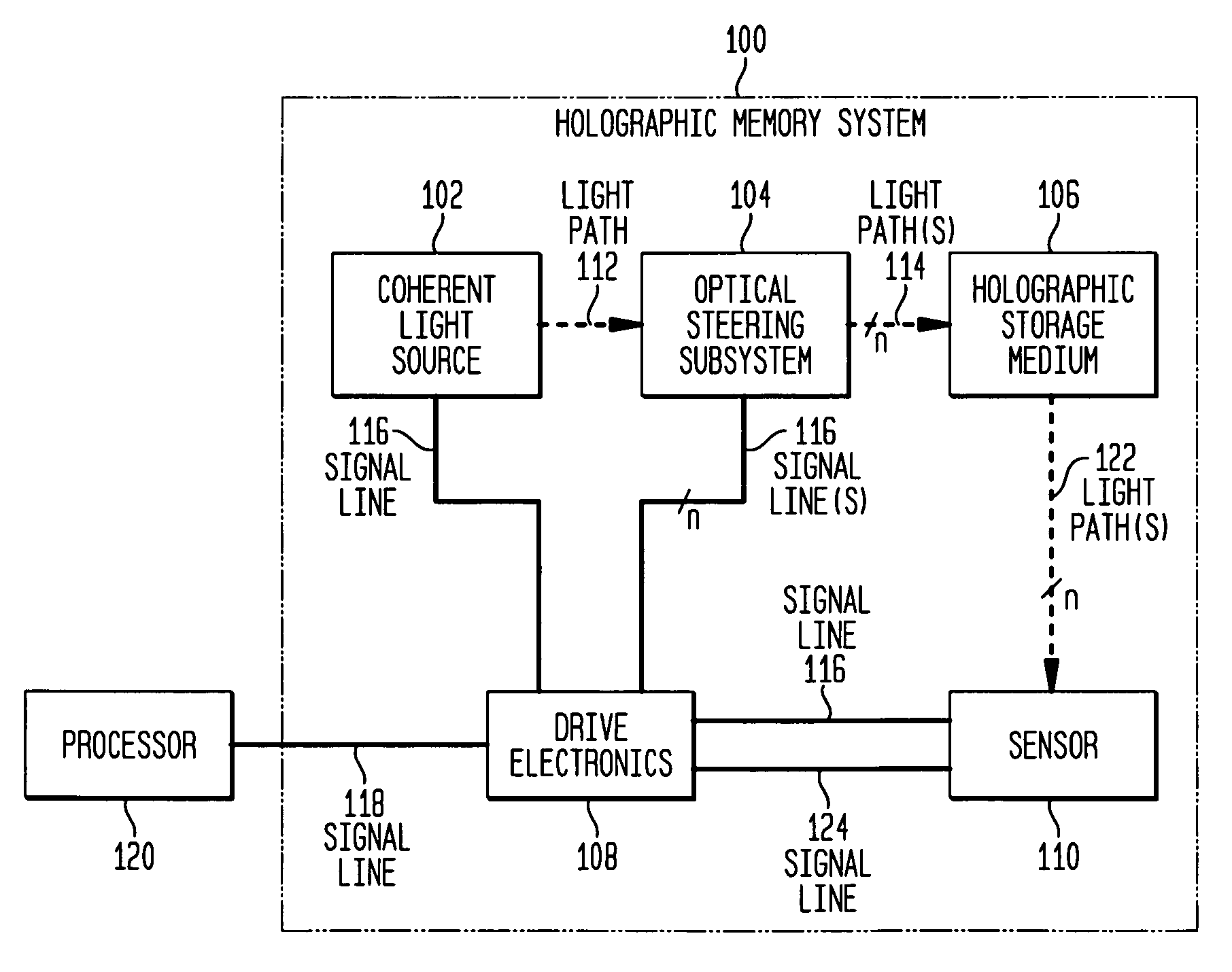

The present invention relates to embodiments of: (1) a unitary holographic drive head assembly mounting structure; (2) an assembly comprising a unitary holographic drive head assembly mounting structure and a plurality of holographic drive head components and/or subassemblies; (3) a subassembly comprising a spatial light modulator, detector array, and a beam splitter; (4) a device comprising a spatial light modulator and a physical aperture positioned over or an imaged aperture projected onto the photoactive area of the spatial light modulator; (5) a system for optically aligning or pointing a laser in a holographic drive head assembly; (6) a light source subassembly comprising a laser, a fiber coupling lens; and an optical fiber having a fiber connector ready output end; and (7) a light source subsystem comprising a laser source, beam conditioning optics, fiber coupling optics for receiving the conditioned light beam, and a fiber optic connector for receiving the conditioned light beam from the fiber coupling optics.
First Claim
Other Claims data not available
Family
