Polyphase motor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 16, 2008
Grant Date -
Apr 7, 2005
app pub date -
Jul 12, 2002
filing date -
Jul 18, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

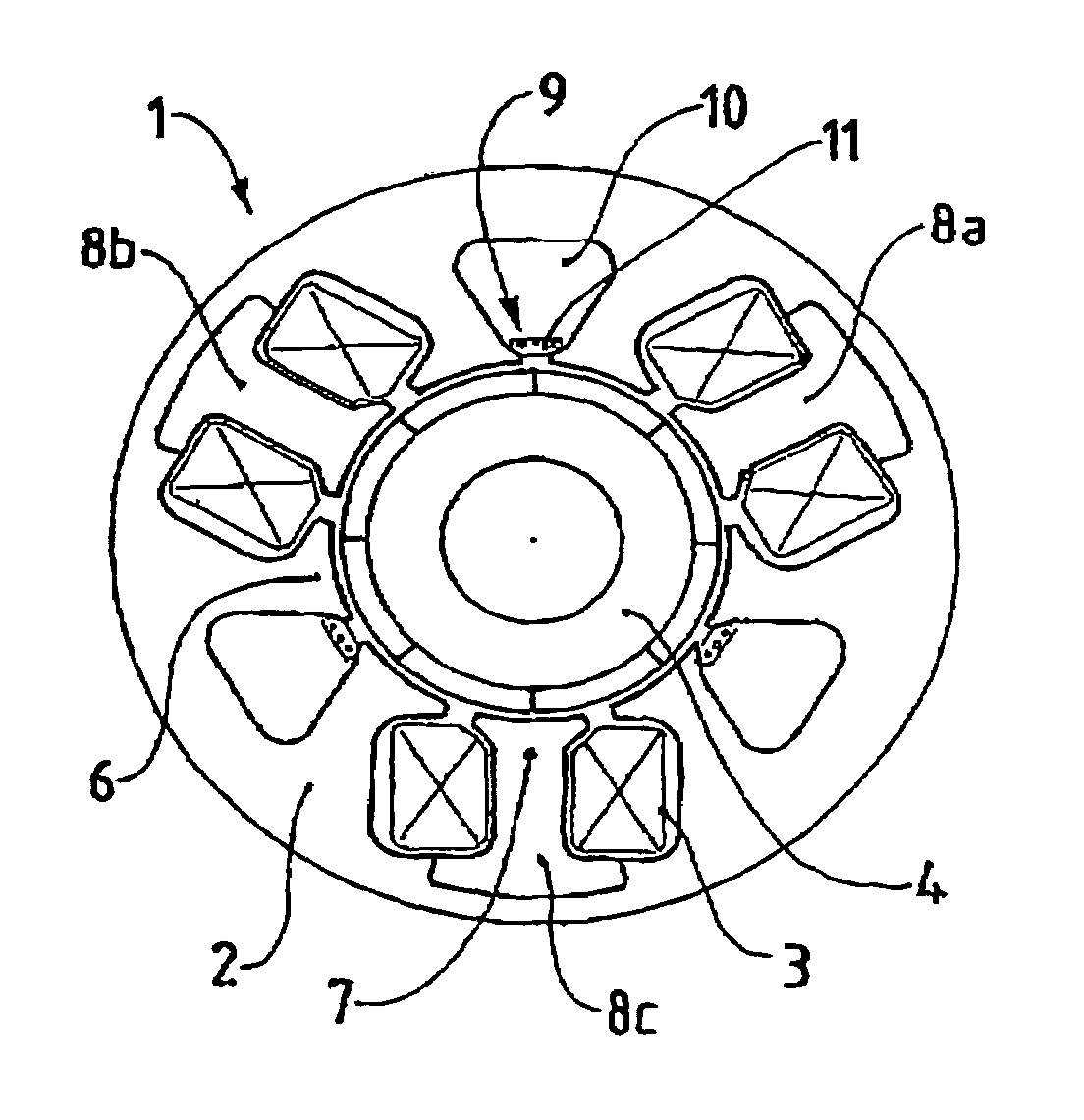

A multiphase motor includes a fixed part or stator energized by electric coils and a mobile part or rotor including N pairs of poles radially magnetized in alternate directions, N being not less than 4 while being other than a multiple of 3, and the stator including P.times.9 identical poles spaced apart by 40.degree./P, the stator poles being assembled consecutively by three so as to define a phase with a W-shaped circuit, assembling three consecutive stator poles, the central stator pole bearing the winding of the phase. At least one element for detecting the position of the rotor is arranged in a common stage with the stator poles, in a housing substantially equidistant between two consecutive stator poles not belonging to a common phase.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- H02P Class
- 3.08 % this patent is cited more than
- 17 Age
