Detachable mounting assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 2, 2008
Grant Date -
Feb 21, 2008
app pub date -
Mar 14, 2007
filing date -
Aug 16, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

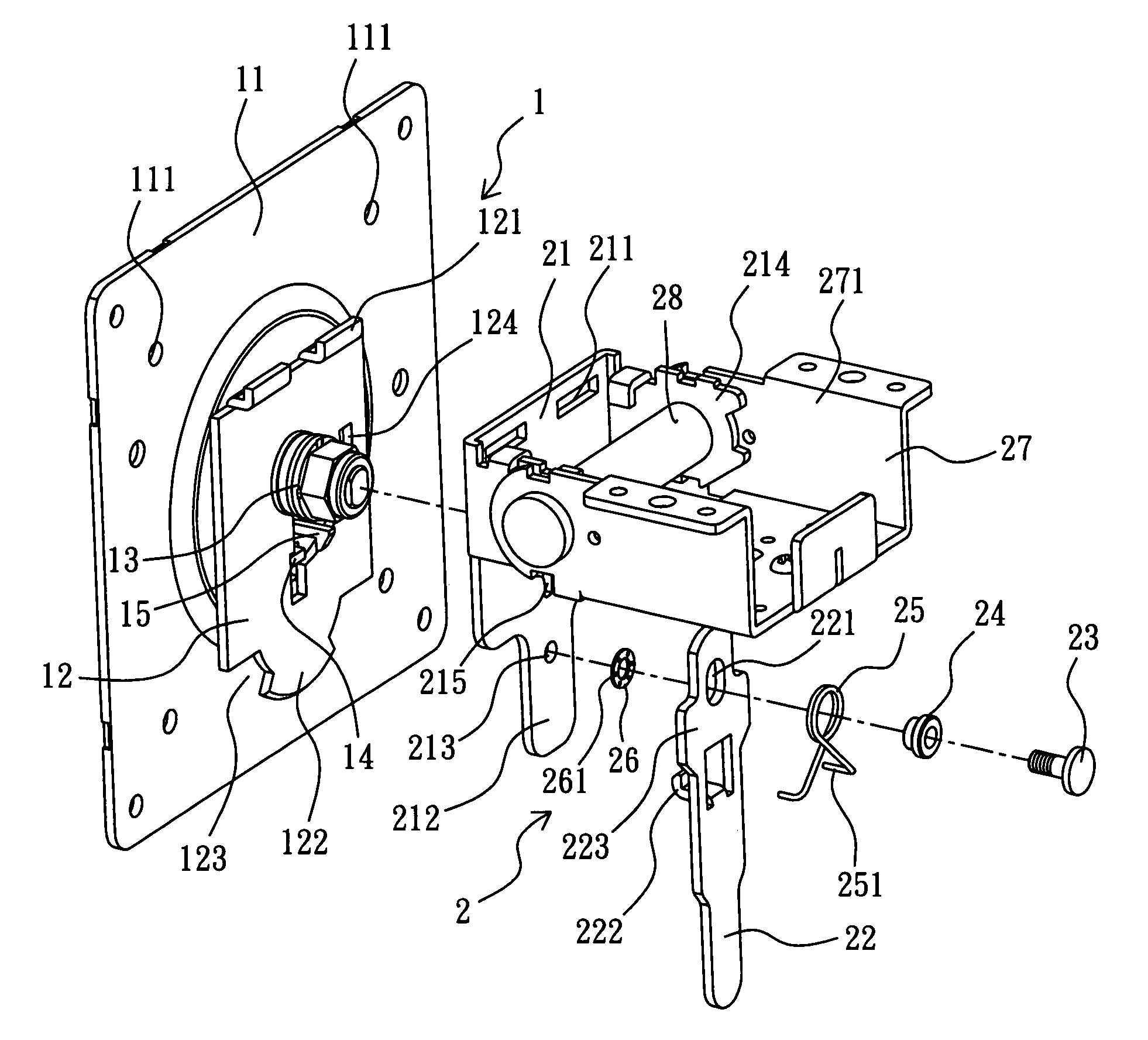

A detachable mounting assembly is disclosed to include a mounting unit formed of a mounting plate for supporting an external member and a coupling plate coupled to the mounting plate, the mounting plate having a hook rod extended through the coupling plate, the coupling plate having L-shaped top hooks and a bottom stop flange, and a locking unit formed of a connecting plate hung on the top hooks of the coupling plate and a spring-supported locking bar pivoted to the connecting plate and hooked by the hook rod of the mounting plate and biasable relative to the connecting plate between the locking position where a backward locking tongue of the locking bar is hooked on a bottom stop flange of the coupling plate and a flat bottom lug of the connecting plate to lock the connecting plate to the coupling plate and the unlocking position where the locking tongue is suspending in one opening at one side of the bottom stop to release the connecting plate from the coupling plate for allowing removal of the connecting plate from the coupling plate.
First Claim
Other Claims data not available
