Optical vend-sensing system for control of vending machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 4, 2008
Grant Date -
Jan 19, 2006
app pub date -
Jul 8, 2005
filing date -
Jul 9, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

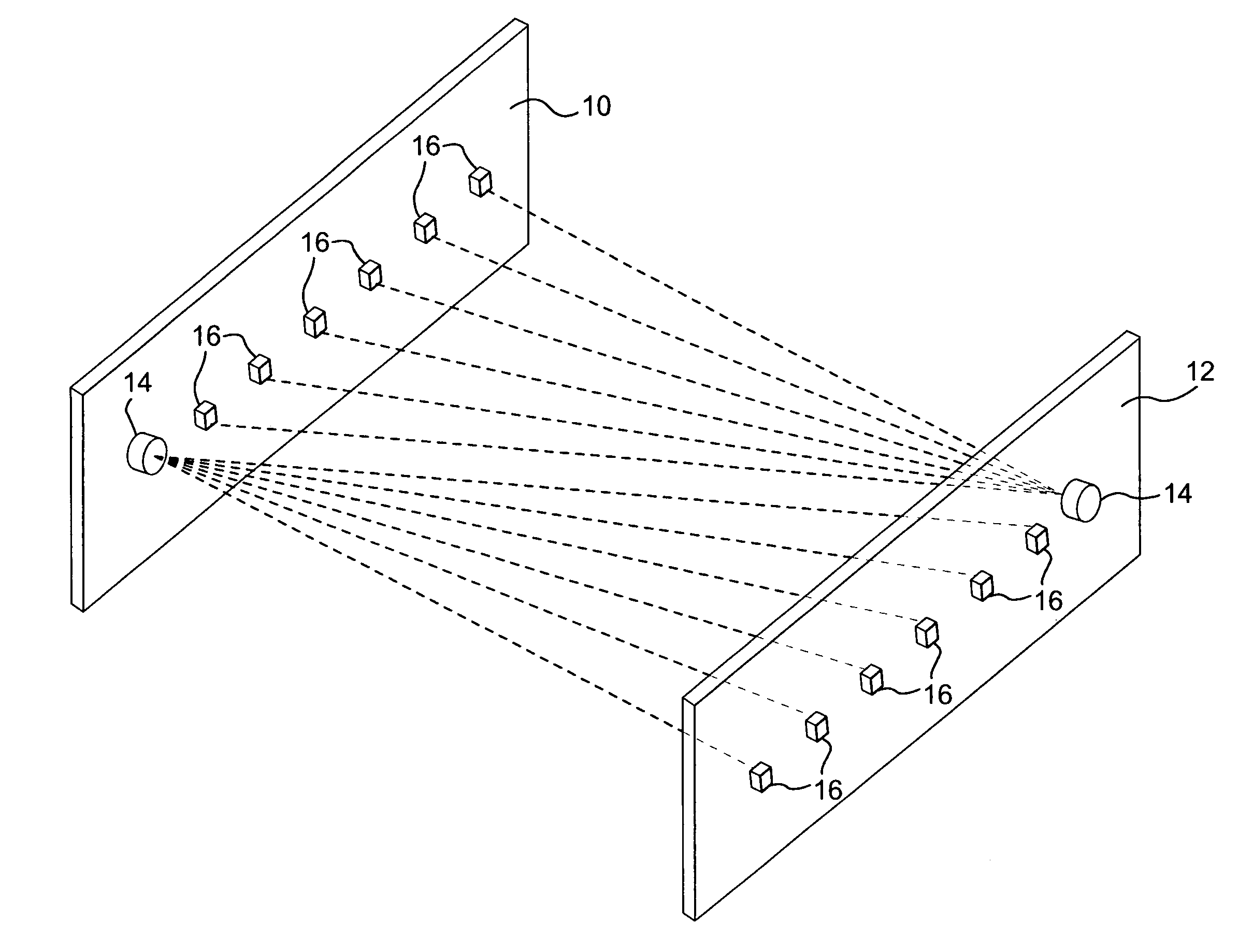

A transparent-front vending machine includes an optical vend-sensing system with an article sensing subsystem arranged athwart a vend space. The article sensing subsystem has two emitter/detector arrays, each having at least one emitter and a plurality of detectors. The emitter/detector arrays are arranged so that at least some electromagnetic radiation emitted by an emitter of the first array can be detected by at least two active detectors of the second array, and at least some electromagnetic radiation emitted by an emitter of the second array can be detected by at least two active detectors of the first array so that articles falling through the vend space will interrupt electromagnetic radiation between an emitter and at least one detector. At least two emitters are active at one time.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- G01V Class
- 2.49 % this patent is cited more than
- 17 Age
