System and method for improving the detection efficiency of an identification system including a transponder and a reader
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 7, 2008
Grant Date -
Mar 1, 2007
app pub date -
Sep 27, 2005
filing date -
Aug 29, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

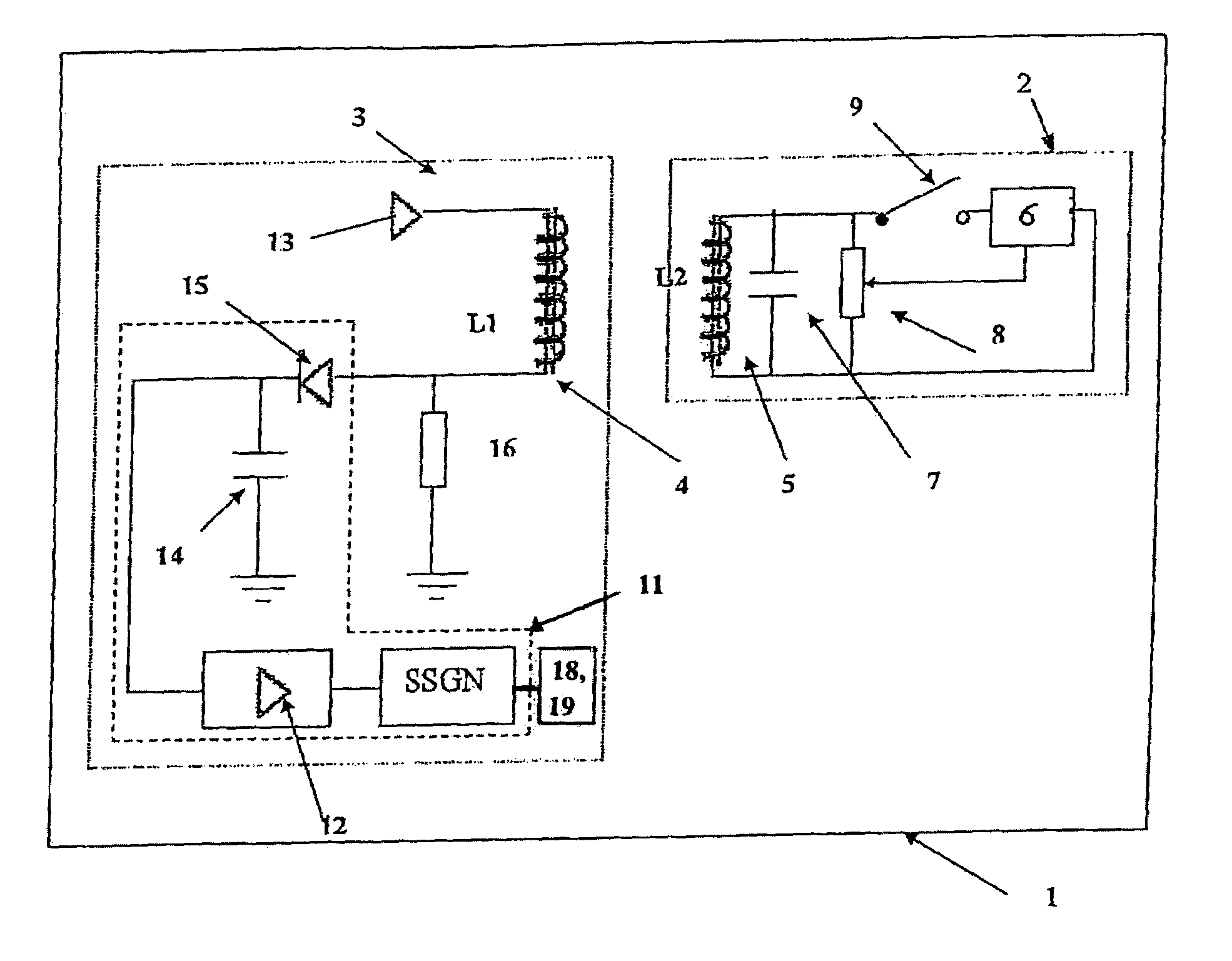

The invention relates to a radio frequency (RF) system and method for improving the detection efficiency of an identification system including a transponder and a reader.The system (1) comprises an interrogator reader device (3) having an interrogator coil antenna (4) and a transponder (2) having a transponder coil antenna (5) and a microchip (6) Advantageously, the interrogator reader device (3) comprises a detection portion (11) including a sensitive signal gain detector (SSGN) for detecting just the presence of the transponder coil antenna (5) in case of misplacement of the transponder or broken link between the transponder coil antenna (5) and the microchip (6).The invention allows remedying to those potentially dangerous situations that might lead to a misdetection of the transponder (2).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- G08B Class
- 1.05 % this patent is cited more than
- 17 Age
