Annular magnet
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 9, 2008
Grant Date -
Feb 1, 2007
app pub date -
Jul 7, 2006
filing date -
Jul 29, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

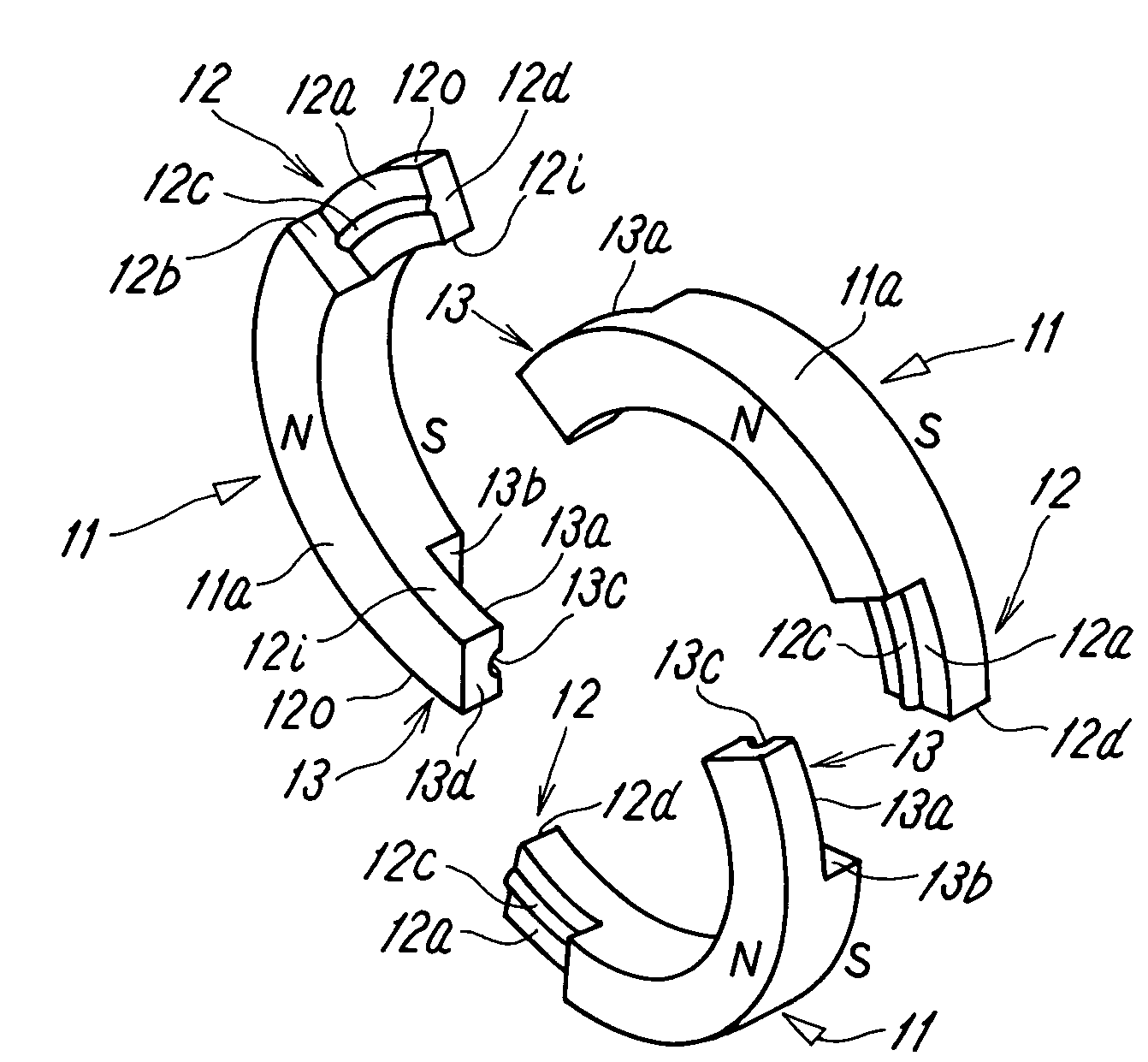

An annular magnet is formed by coupling a plurality of arc-shaped divided magnets with each other in an annular shape as well as such being magnetized with N and S magnetic poles on the end surfaces thereof in an axial direction, wherein the annular magnet is formed such that each of the divided magnets has joint portions at both ends thereof so that the divided magnets are joined to each other. Each of the joint portions also has a joint surface to overlap the joint portions of adjacent divided magnets in the axial direction. The joint surface is magnetized to a magnetic pole different from that of a joint surface to which such is joined, and the divided magnets are coupled with each other by the magnetic attraction force of different magnet poles.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- H01F Class
- 5.72 % this patent is cited more than
- 17 Age
