Vehicle wheel cover retention system and method for producing same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 26, 2008
Grant Date -
N/A
app pub date -
Sep 18, 2006
filing date -
Sep 18, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

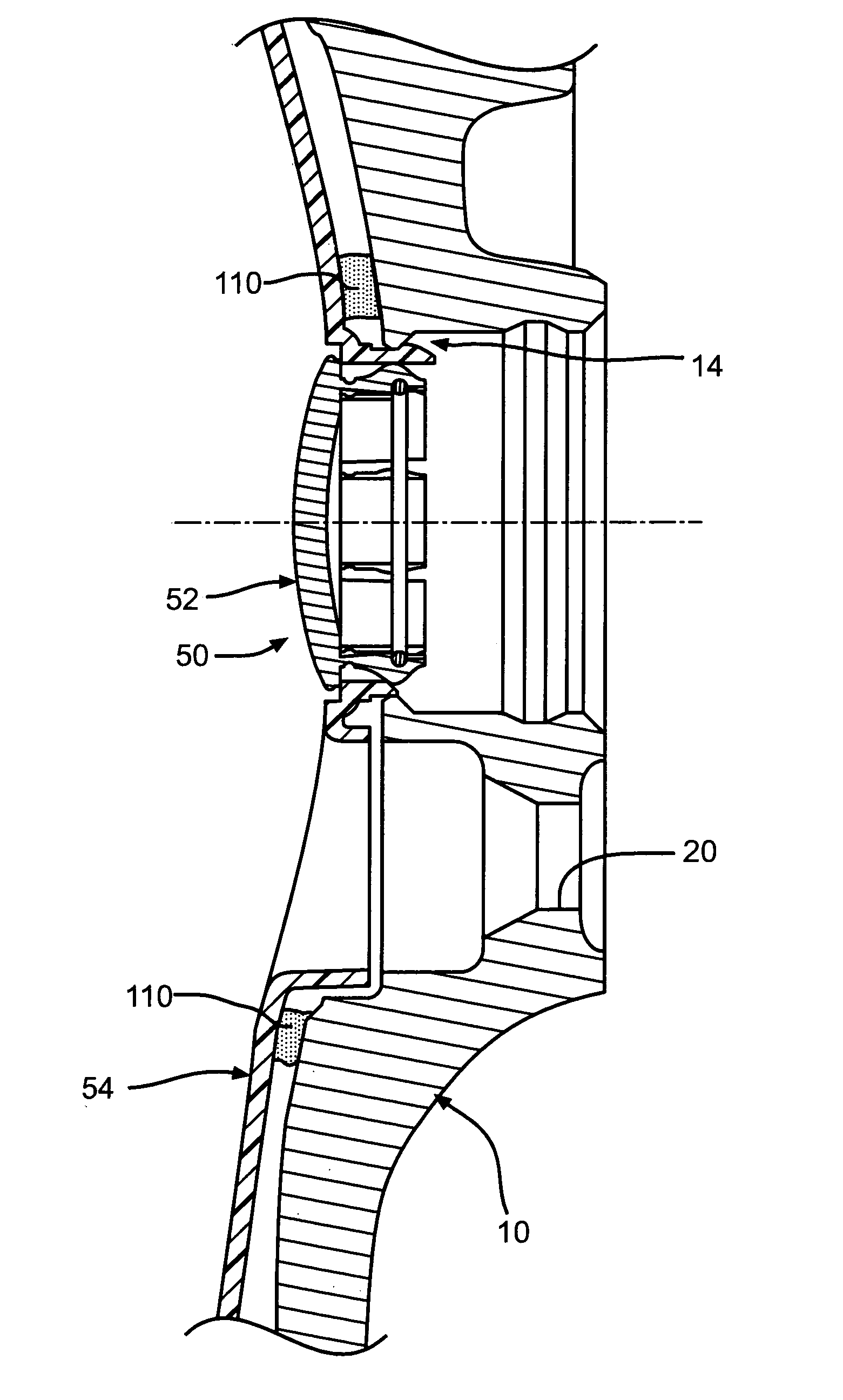

The vehicle wheel cover retention system comprises a wheel formed from a suitable material and including a first hub hole provided therein. The first hub hole has a retention member formed in a generally axially extending portion thereof. The wheel cover is formed from a suitable material and includes a second hub hole provided therein. The second hub hole includes an annular axially extending segmented projection. The segmented projection includes a plurality of first tabs and a plurality of second tabs. The plurality of second tabs include a chamfered outer circumferential surface and a shoulder provided thereon. During assembly, the chamfered outer circumferential surface of the plurality of second tabs deflect radially inwardly as the wheel cover is initially installed and moved toward the retention member and then as the wheel cover is further advanced the second tabs move radially outward to enable the shoulder to engage the retention member to thereby secure the wheel cover to the wheel.
First Claim
Other Claims data not available
