Beam shaping prior to harmonic generation for increased stability of laser beam shaping post harmonic generation with integrated automatic displacement and thermal beam drift compensation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 5, 2008
Grant Date -
May 4, 2006
app pub date -
Oct 26, 2005
filing date -
Apr 10, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

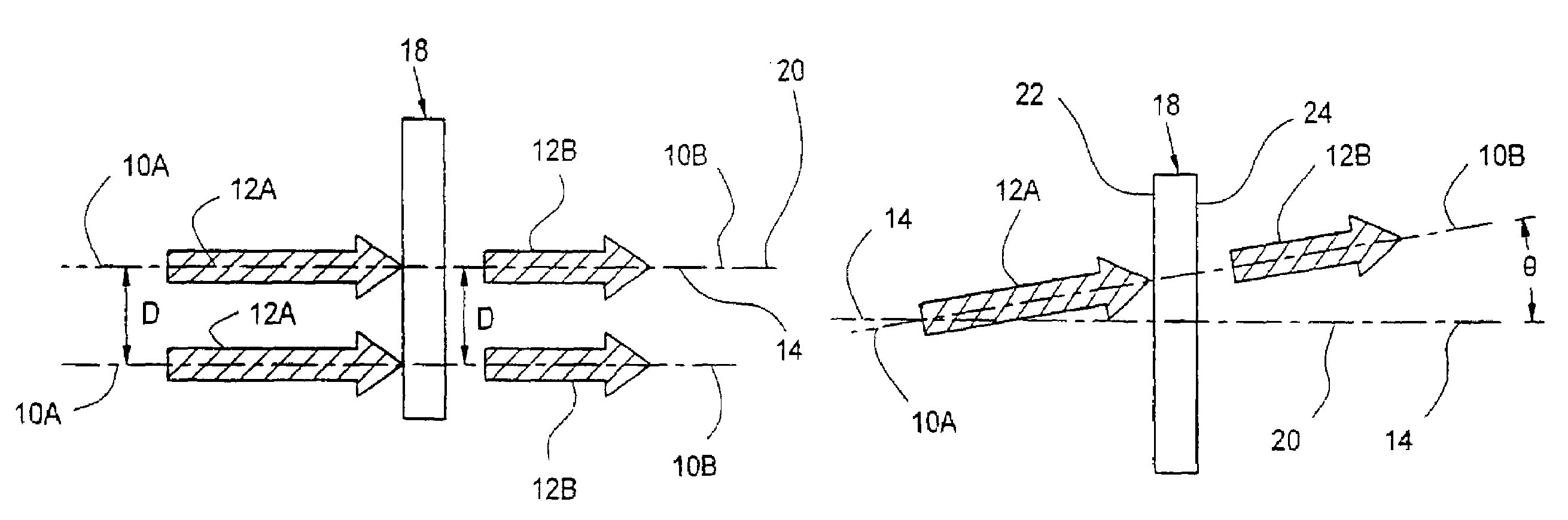

A laser beam delivery system for transforming a laser energy profile into a desired laser beam output energy profile. The laser beam delivery system comprises a laser for generating a laser beam along a beam path, at least one extra-cavity harmonic generation element being located along the beam path for generating harmonic multiples of a beam input frequency, and an extra-cavity beam expansion element, located before the at least one harmonic generation element, for expanding and collimating the laser beam prior to the laser beam being multiplied by the at least one harmonic generation element. The beam expansion element may be a refractive lens.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G02B Class
- 2.58 % this patent is cited more than
- 17 Age
