Method of assembling a port assembly in a cavitation chamber
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 5, 2008
Grant Date -
Mar 2, 2006
app pub date -
Sep 15, 2004
filing date -
Aug 25, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

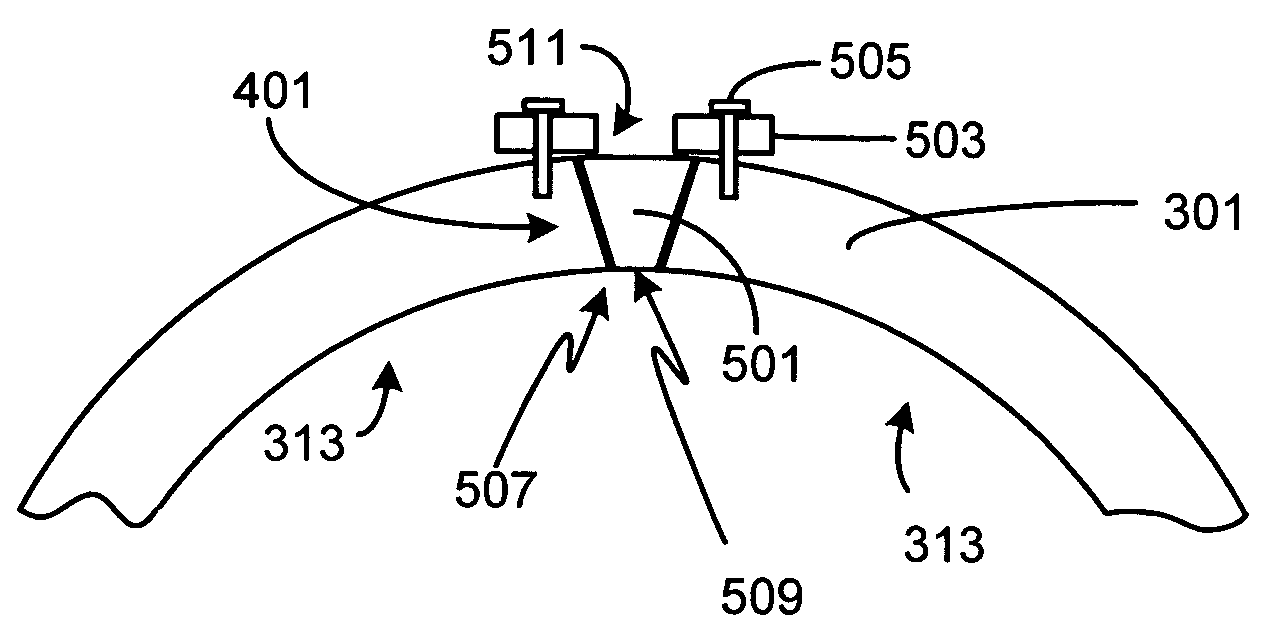

A method of assembling a port assembly in a cavitation chamber, typically a spherical chamber, is provided. The method is comprised of the steps of boring a port in a cavitation chamber wall, positioning a cone-shaped member within a corresponding cone-shaped surface of a mounting ring, positioning the mounting ring within the port, and locking the mounting ring within the port with a retaining ring. The largest diameter of the cone-shaped member corresponds to the cavitation chamber internal surface. The member can be a window, gas feed-thru, liquid feed-thru, mechanical feed-thru, sensor, sensor coupler, transducer coupler or plug. The member can be secured within the mounting ring with an adhesive. The retaining ring can be coupled to the cavitation chamber external surface with one or more bolts. The port in the cavitation chamber is preferably cone-shaped with the largest diameter of the port corresponding to the cavitation chamber external surface. If the mounting ring and the retaining ring are combined into a single retaining coupler, the cavitation chamber port can be either cone-shaped with the largest diameter of the port corresponding to the cavitation chamber external surface or the port can be cylindrically shaped.
First Claim
Other Claims data not available
