Clockwork movement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 29, 2008
Grant Date -
Aug 17, 2006
app pub date -
Jan 12, 2006
filing date -
Jan 19, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

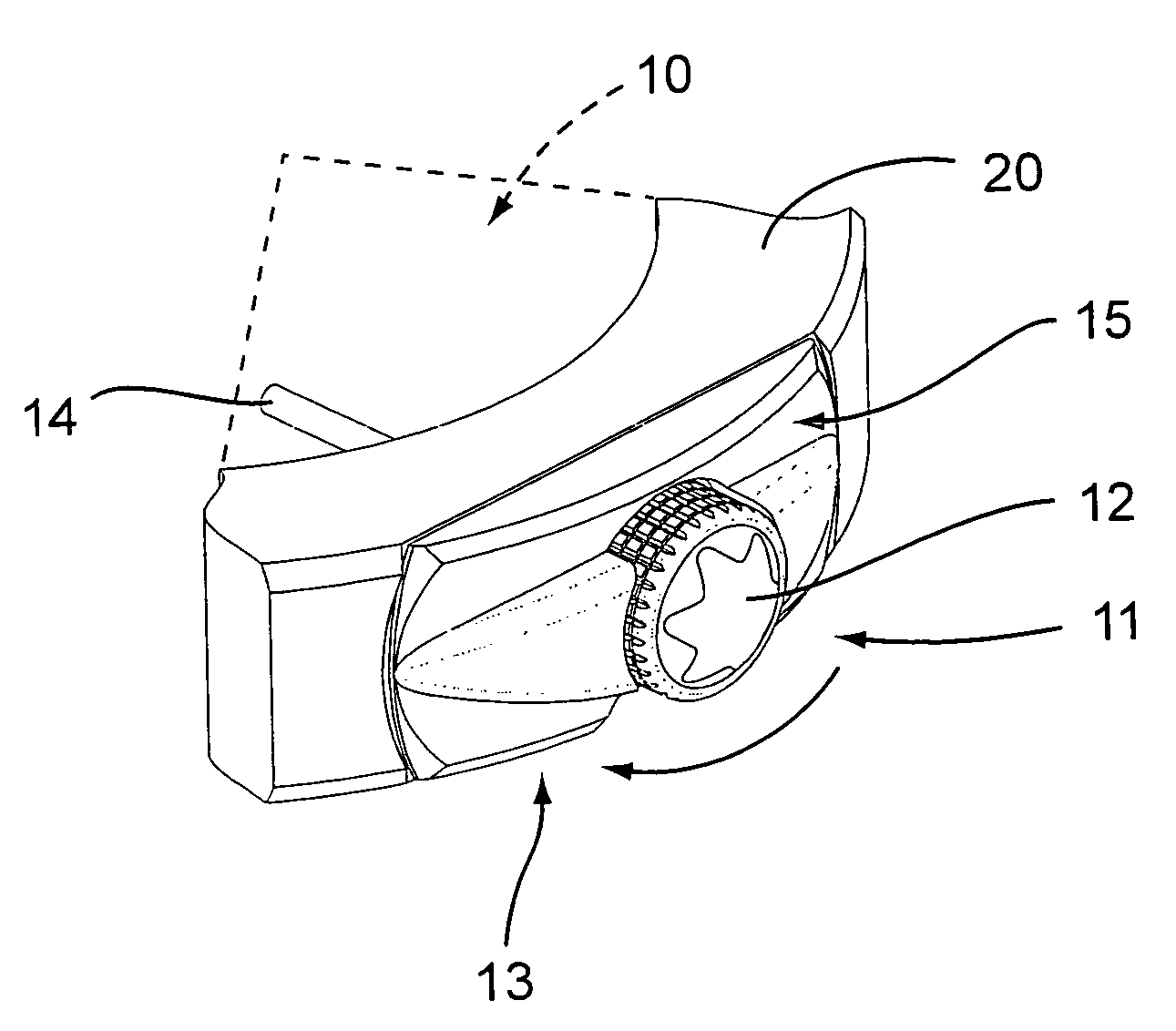

The clockwork movement comprises a crown (12) connected with at least one element of the movement through a connecting organ. It is provided with a selection device (13) that includes a blocking device (15) provided with two blocking spring blades (26, 27) cooperating with a set of teeth (28) of crown (12). This blocking device allows rotation of the crown to be blocked in a first direction, and to be permitted in a second direction, in a predetermined position of a control lever (30) selectively acting on the first or second of these spring blades (26, 27) through a sector (31). When this lever (30) is turned into a second position, rotation of the crown is permitted in the first direction but blocked in the second direction. One thus obtains a movement in which the direction of rotation of crown (12) is selected by the user by his prior action on selection device (13).
First Claim
Other Claims data not available
