Battery and electric unit assembly for vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 15, 2008
Grant Date -
Dec 14, 2006
app pub date -
Jun 8, 2006
filing date -
Jun 8, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

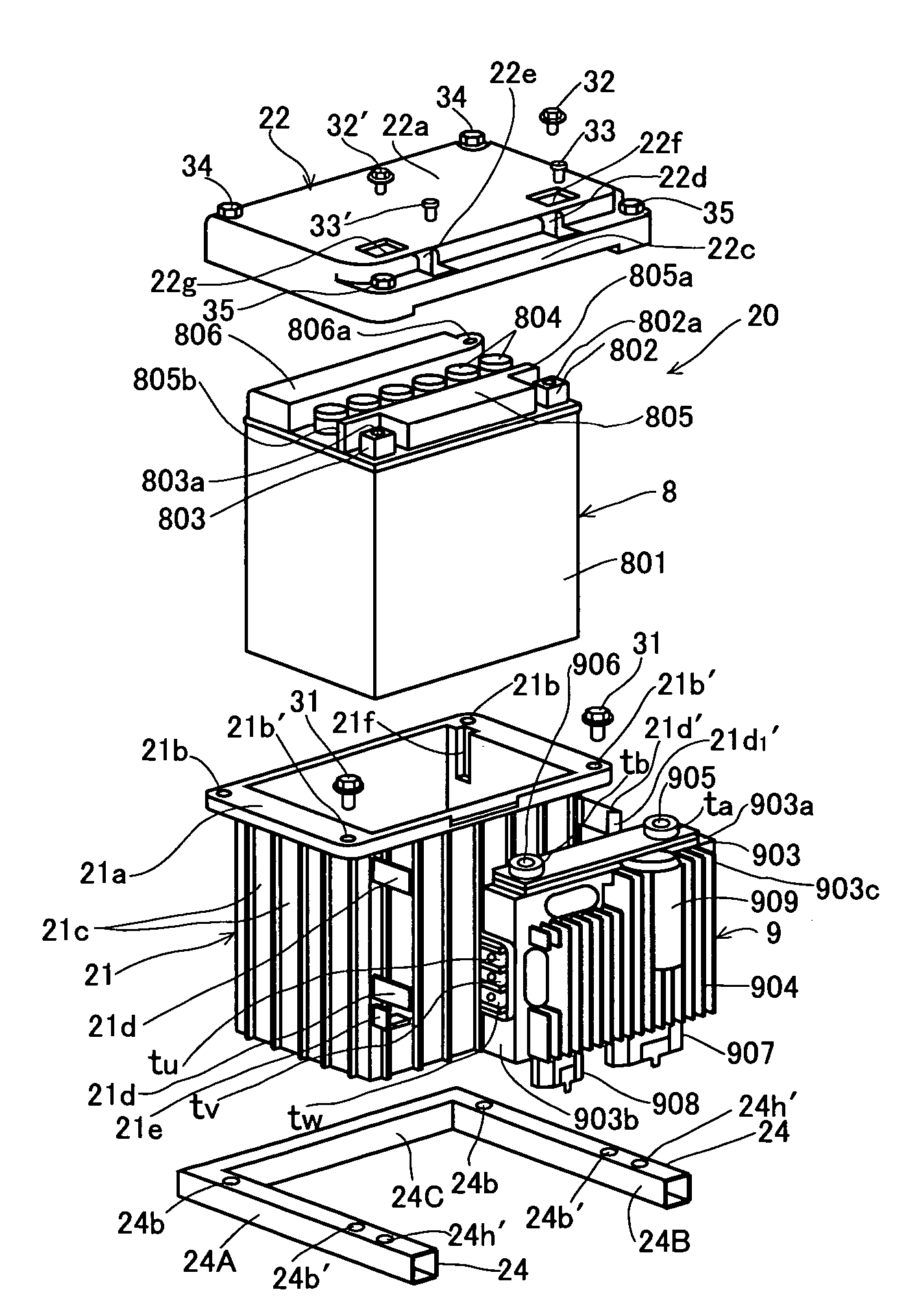

An on-vehicle battery and electric unit assembly including: a battery mounted to a body of a vehicle driven by an engine; and an electric unit in which components of an electrical circuit connected to the battery are housed in a unit case provided with a positive DC terminal and a negative DC terminal connected to a positive terminal and a negative terminal of the battery, wherein the electric unit is placed adjacent to the battery, and the positive terminal and the negative terminal of the battery are connected to the positive DC terminal and the negative DC terminal of the electric unit by a positive busbar and a negative busbar, respectively.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- H01M Class
- 2.97 % this patent is cited more than
- 17 Age
