Piezoelectric mechanism for generating discharge voltage
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 8, 2008
Grant Date -
May 11, 2006
app pub date -
Jan 13, 2006
filing date -
Oct 5, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

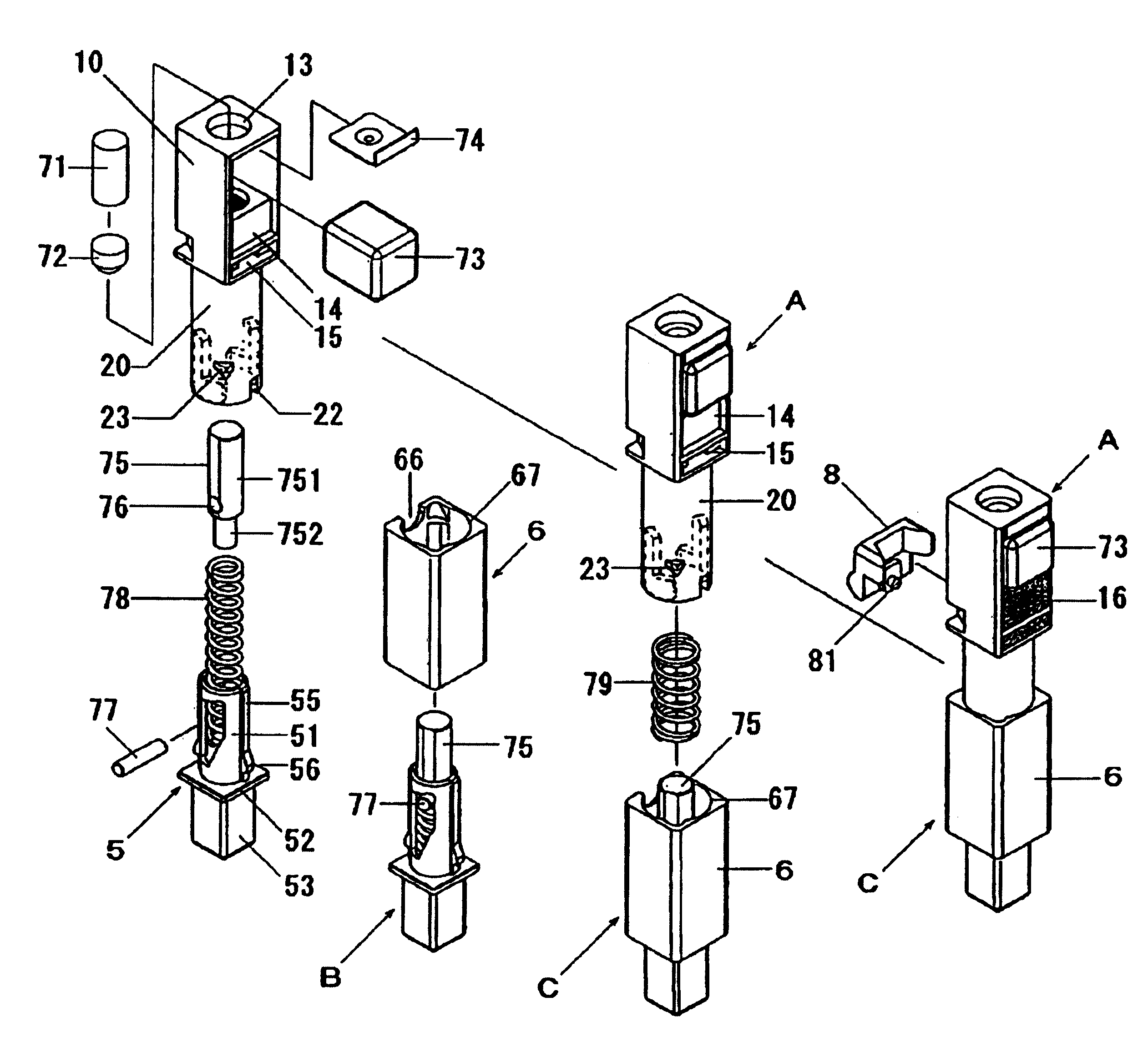

Malfunctions caused by dusts such as sands and the like in movement portions of a spark-voltage generation mechanism are reduced. The generation mechanism comprises an outer-box assembly in which a base piece, piezoelectric element, and anvil are disposed in line with the longitudinal axis, an axis-direction cam groove is formed thereon, an inner-box assembly in which a hammer that strikes the piezoelectric element and a hammer spring are housed, a cam hole is formed thereon, and a joint-case assembly that limits the stroke of the outer-box assembly over the inner box-assembly, generates a high-voltage pulse by series of operations where one-way-pressure force is applied with a hammer pin inserted into the hammer, the cam groove, and the cam hole to compress and release the hammer spring. The hammer strikes the piezoelectric element by releasing the compression force of the hammer spring, the operation mechanism is shielded with the joint-case assembly.
