Method and device for changing the trajectory of ink droplets
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 1, 2008
Grant Date -
Apr 12, 2007
app pub date -
Oct 19, 2006
filing date -
Dec 9, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

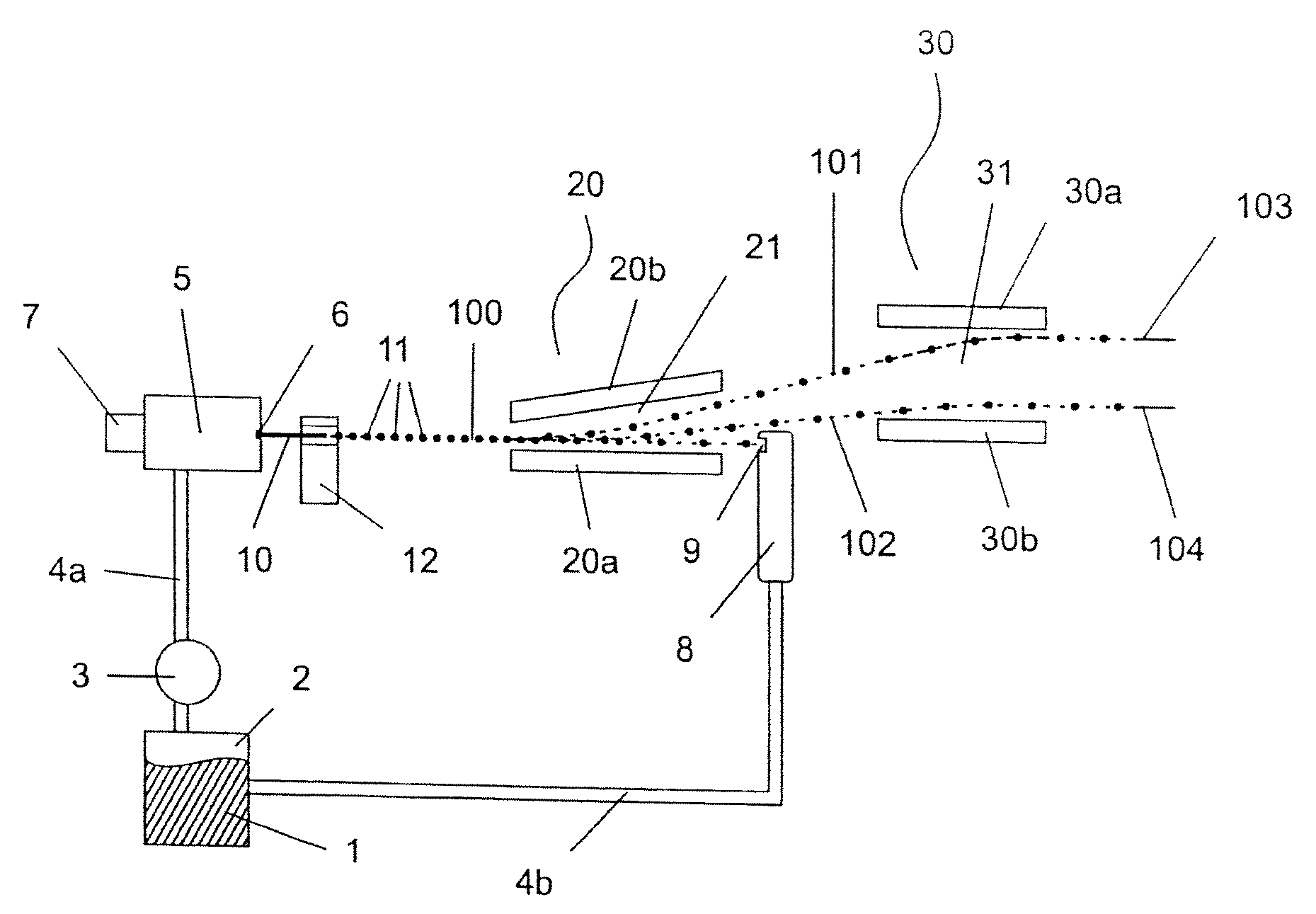

The invention relates to a method for changing the trajectory of ink droplets generated by and emitted from a print head which operates in a continuous manner, the ink droplets being electrostatically charged and deflected in a plane out of an original trajectory by at least one electrical field in a first deflecting device, the ink droplets being deflected in the same plane by at least one electrical field in a second deflecting device. The invention further relates to an inkjet printing device for emitting, in particular in a continuous manner, electrostatically charged ink droplets in an original trajectory by means of a first deflecting device for deflecting the charged ink droplets in a plane out of the original trajectory, at least one second deflecting device being provided by which the ink droplets may be deflected in the same plane.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B41J Class
- 5.87 % this patent is cited more than
- 17 Age
