Method of knitting tubular knitted fabric
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 10, 2008
Grant Date -
Jan 24, 2008
app pub date -
Dec 26, 2005
filing date -
Dec 28, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

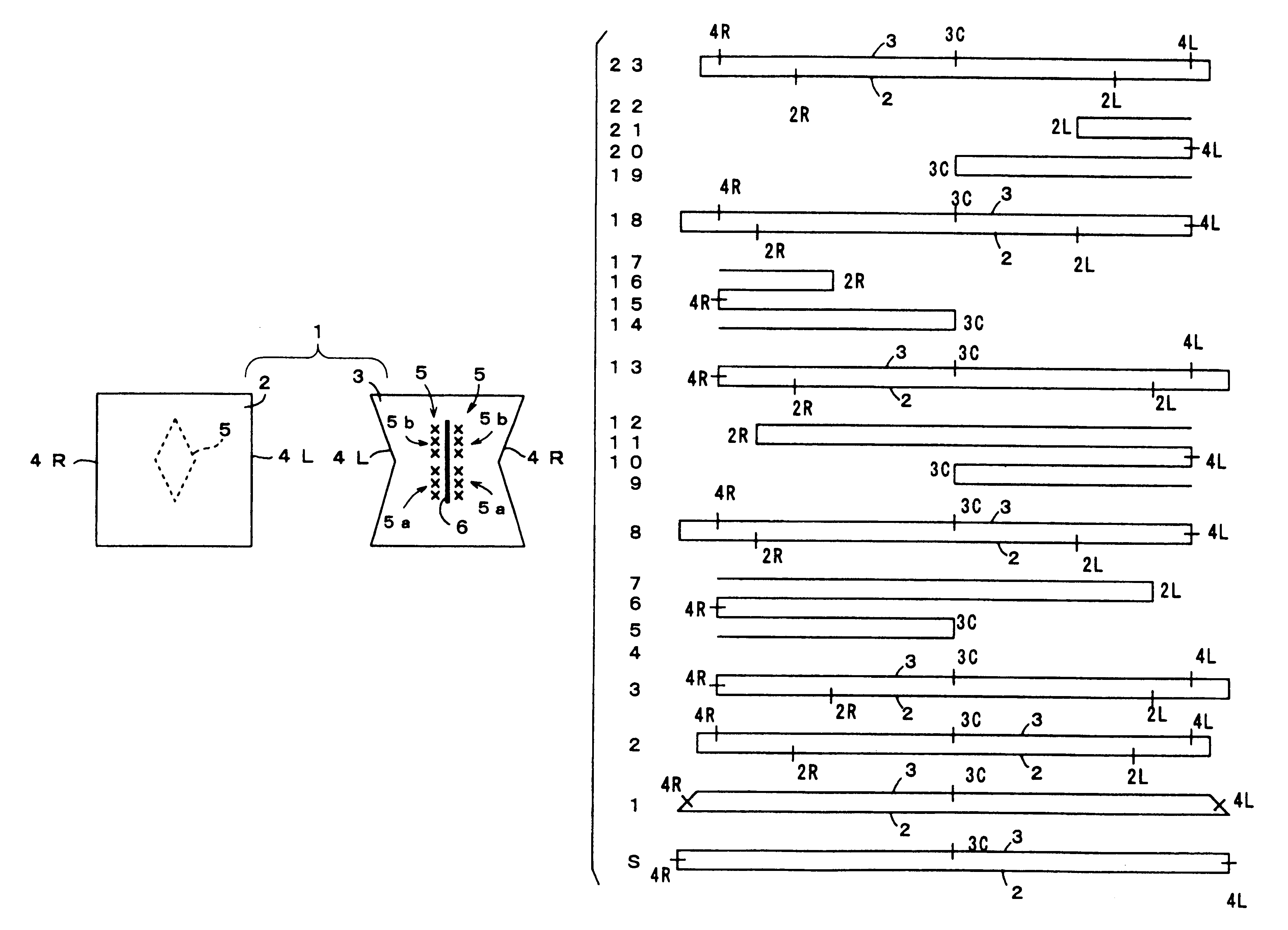

When knitting a tubular knitted fabric having a difference in the number of wales between a front knitted fabric and a back knitted fabric, knitted fabrics are knitted alternately while turning the tubular knitted fabric and jointing the front section having a large number of wales at middle portions. In one example embodiment, turning is performed such that one boundary of boundaries coupling the fabrics is positioned between front and back needle beds. The numbers of wales of the fabrics caught on the needle beds on both sides are equalized and the fabric of the front section having a large number of wales is knitted from one boundary to the joints at a middle portion of the knitting width. Subsequently, the tubular fabric is turned such that the other boundary is positioned between the needle beds, and the fabric is knitted from the boundary of the front section to the joints and then coupled.
First Claim
Other Claims data not available
Family
International Classification(s)
- Non-US Classification not provided for expired patents
Cited Art Landscape
Patent Citation Ranking
- Citation Ranking not provided for expired patents
