Coin payout device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 3, 2008
Grant Date -
Jun 2, 2005
app pub date -
Nov 2, 2004
filing date -
Nov 3, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

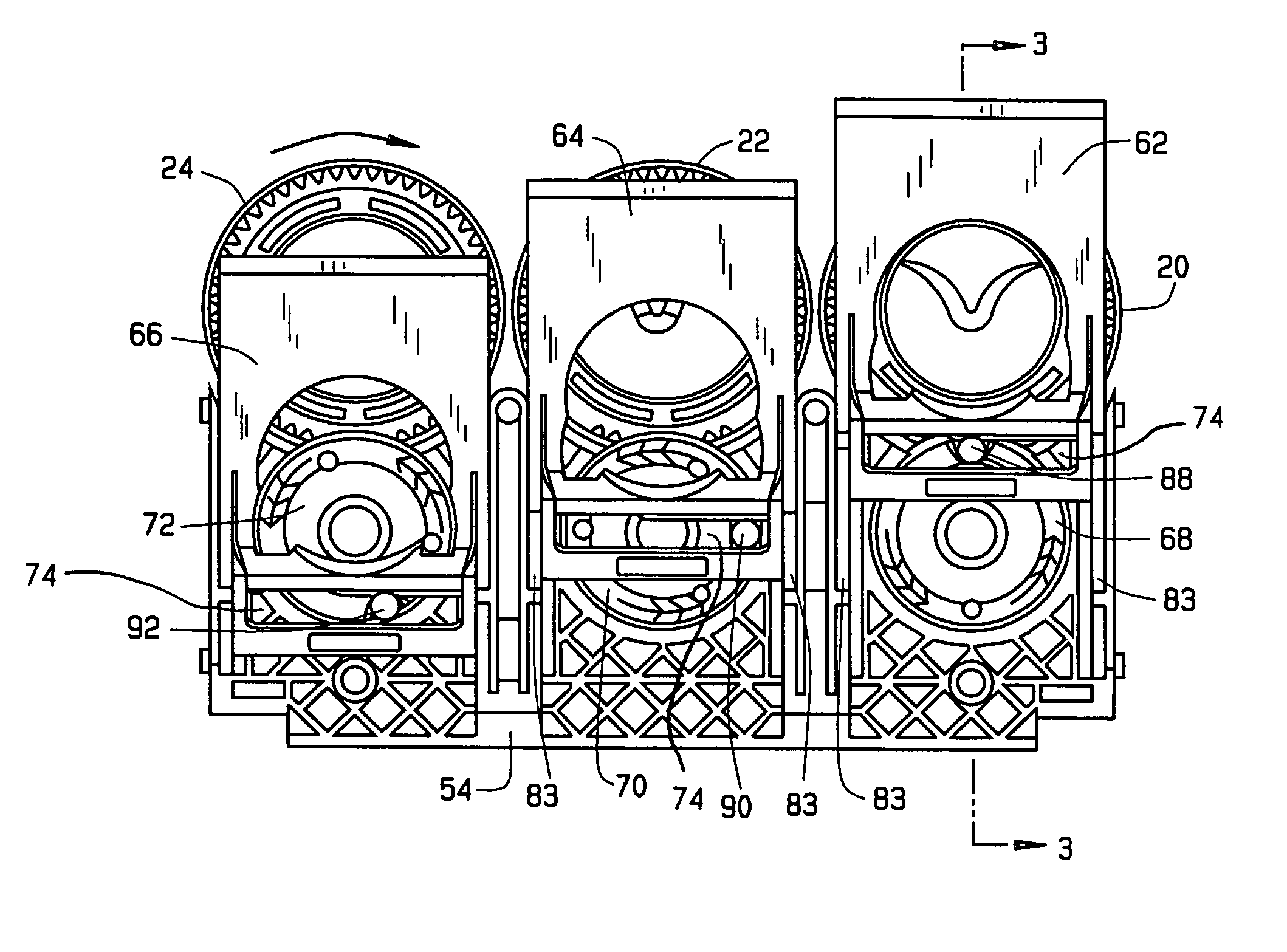

A device for dispensing bulk-loaded coins including a transport unit having a transport unit frame, an electric motor driving a drive gear, a rotor and a transport slide. The drive gear further includes a drive pin. The rotor agitates coins located within a bin of a bulk-loaded coin hopper when rotated in a first direction and relaxes coins within the bin when rotated in a second direction. The rotor is rotatable by an associated drive gear. The transport slide includes a central bore and flexible member. The flexible member defines a home position deflection ramp and a home position clearance path. The home position deflection ramp and home position clearance path are located in a position such that the drive pin causes the transport slide to reciprocate when the drive gear is operated in a first direction and to remain stationary when the drive gear is operated in a second, different direction.
