Tire uniformity machine grinding assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 3, 2008
Grant Date -
Jan 4, 2007
app pub date -
Feb 28, 2005
filing date -
Feb 27, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

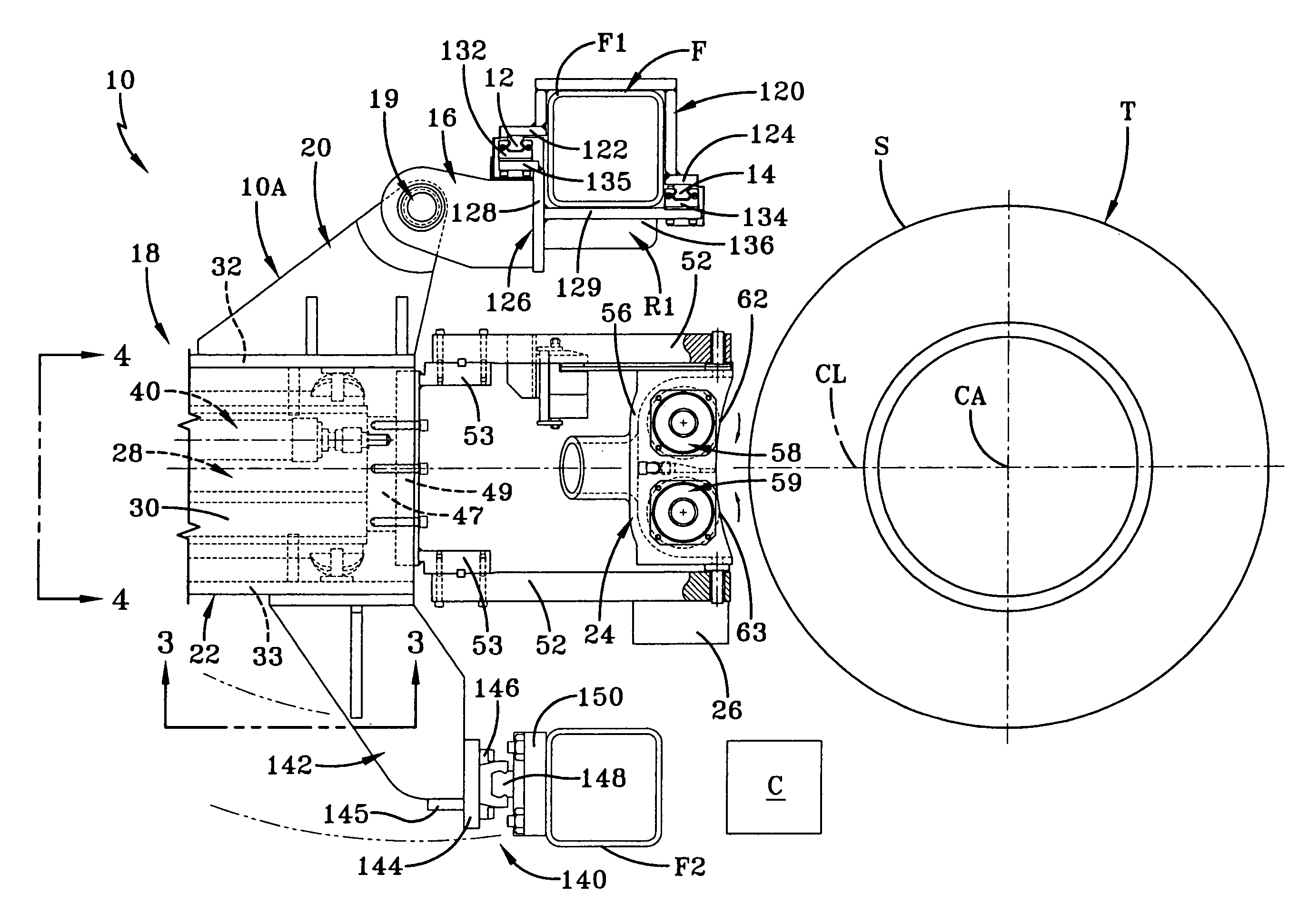

A grinder assembly (10) contacts a tire (T) supported by a frame (F) relative to the tire (T). The grinder assembly (10) includes at least one section, and a vertical repositioning system (118) supporting the at least one section. The vertical repositioning system (118) enables the at least one section to be vertically repositioned relative to the tire (T). The at least one section includes a grinding head (24), a radial positioning system (18) supporting the grinding head (24) for radial movement with respect to the tire (T), and a tilt adjuster (90) provided adjacent the grinding head (24) to provide for pivotal movement thereof. The vertical repositioning system (118) includes at least one rail extending along the frame (F), and a rail carriage supporting the at least one section on the at least one rail, the rail carriage being vertically repositionable along the at least one rail.
First Claim
Other Claims data not available
