Use of non-magnetic paths for an electronic module intended for a timepiece
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 20, 2008
Grant Date -
Aug 29, 2002
app pub date -
Feb 24, 2002
filing date -
Feb 28, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

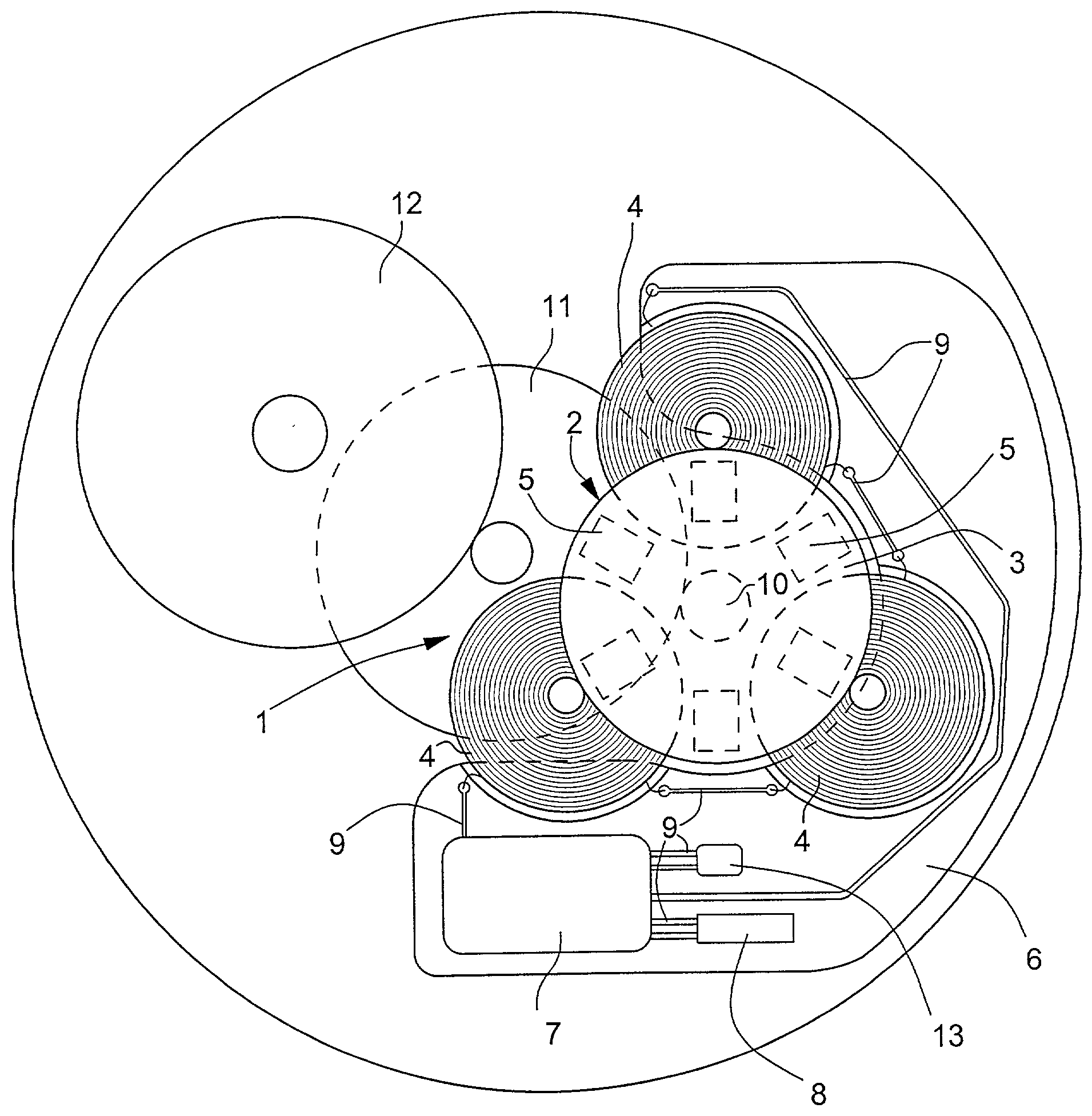

The present invention proposes improving the yield of a microgenerator (1) used for operating a timepiece. Such a microgenerator operates on the basis of the phenomenon of electromagnetic induction, it is thus desirable to limit as far as possible the presence of magnetic masses in proximity to said generator. Research undertaken has shown that the electrically conductive paths (9), and even their single protective layer, arranged in proximity to the microgenerator brake it, when they are formed of a magnetic material, and in particular a ferromagnetic material. Thus, the selection of exclusively non-magnetic materials is proposed for manufacturing the conductive paths.
First Claim
Other Claims data not available
