Wheelchair suspension
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 13, 2008
Grant Date -
Sep 14, 2006
app pub date -
Sep 23, 2005
filing date -
Mar 10, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

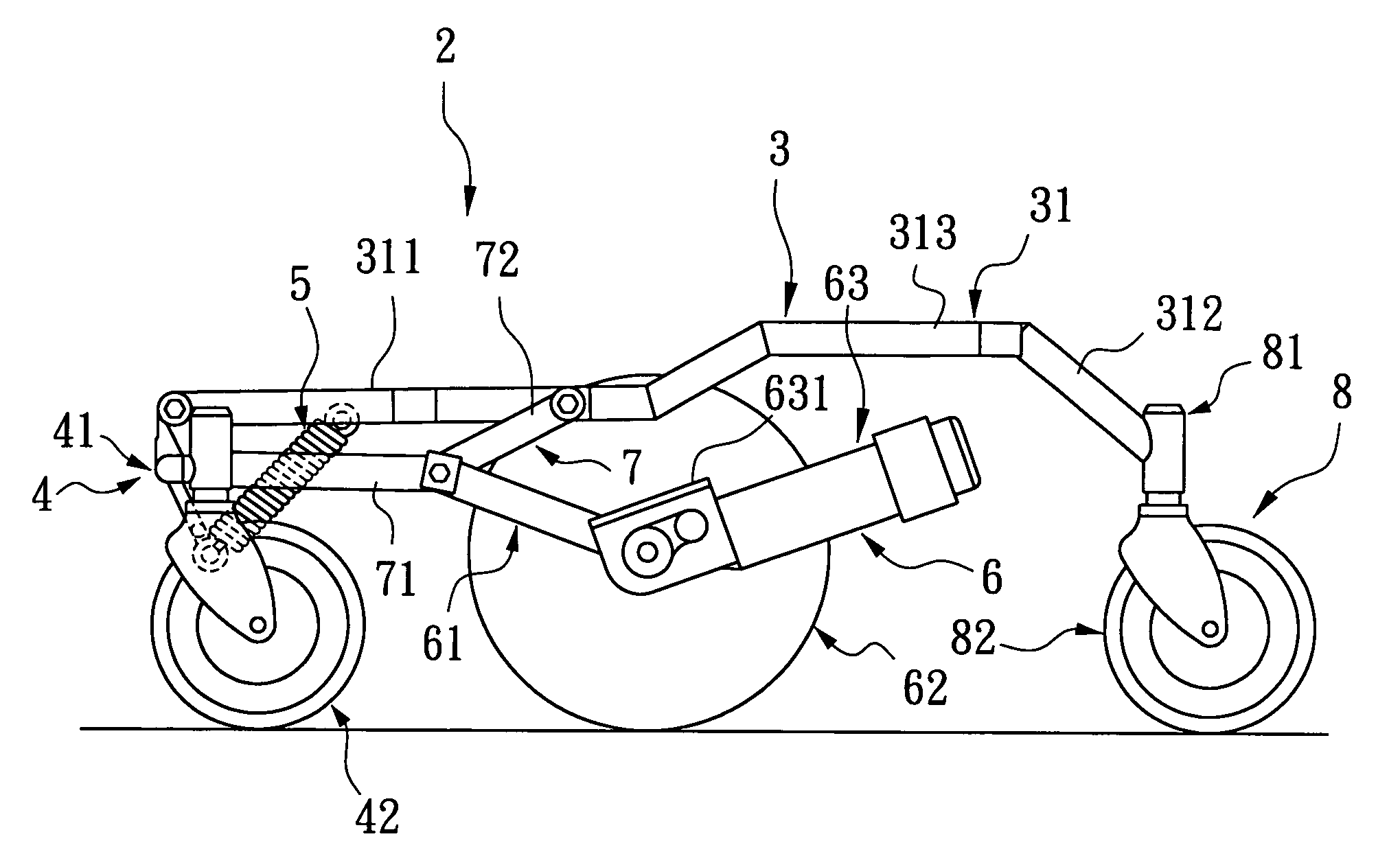

A side frame assembly for a wheelchair suspension includes a mainframe, and a front caster frame connected pivotally to both a front end of the mainframe and a front caster. A return spring is disposed between the front caster frame and the mainframe so as to bias the front caster to a predetermined position. A drive wheel assembly includes a drive wheel frame, a drive wheel disposed pivotally on the drive wheel frame, and a driving unit operable to rotate the drive wheel. A linkage is connected pivotally to the mainframe, the front caster frame and the drive wheel frame. A rear caster assembly includes a rear caster frame attached to a rear end of the mainframe, and a rear caster disposed pivotally on the rear caster frame.
First Claim
Other Claims data not available
