Method and device for laying of elongated winding material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 13, 2008
Grant Date -
Dec 13, 2007
app pub date -
Apr 20, 2007
filing date -
Apr 20, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

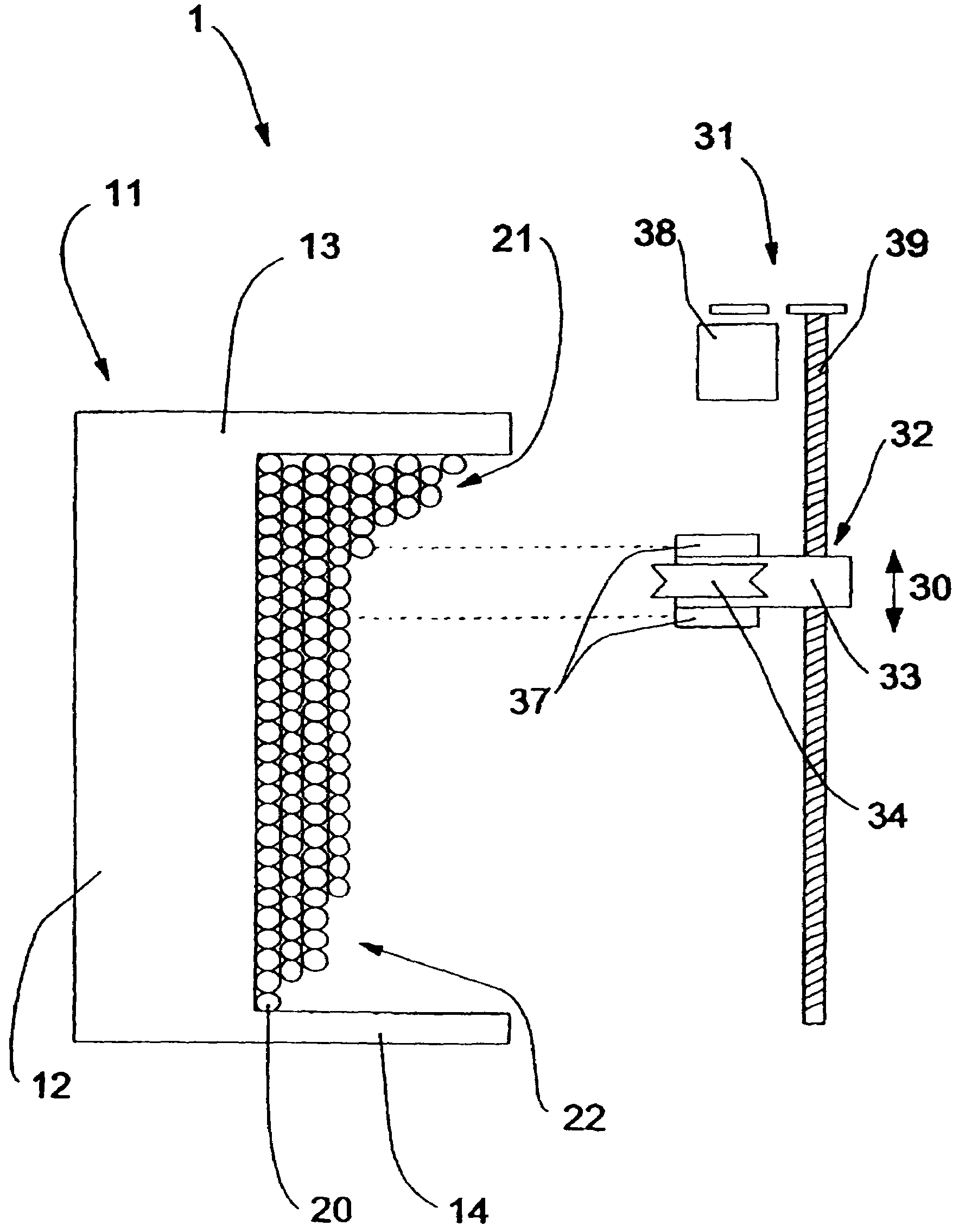

A method for laying elongated winding material, such as for example wire, insulated or non-insulated strands, glass fibers, and the like, in which the strand-type material is wound in layers onto rotationally symmetrically shaped winding spools, the winding material being guided to a winding spool via a deflecting roller for the laying, and for the distribution on the winding spool the deflecting roller is moved essentially parallel to the axial direction, a sensor unit acquiring the position of the spool flange as well as the winding diameter of the winding material, and control signals for the movement of the deflecting roller being derived from the measurement values of the sensor unit.
First Claim
Other Claims data not available
