Stack conditioning apparatus and method for use in bookbinding
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 22, 2008
Grant Date -
Aug 11, 2005
app pub date -
Feb 9, 2004
filing date -
Feb 9, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

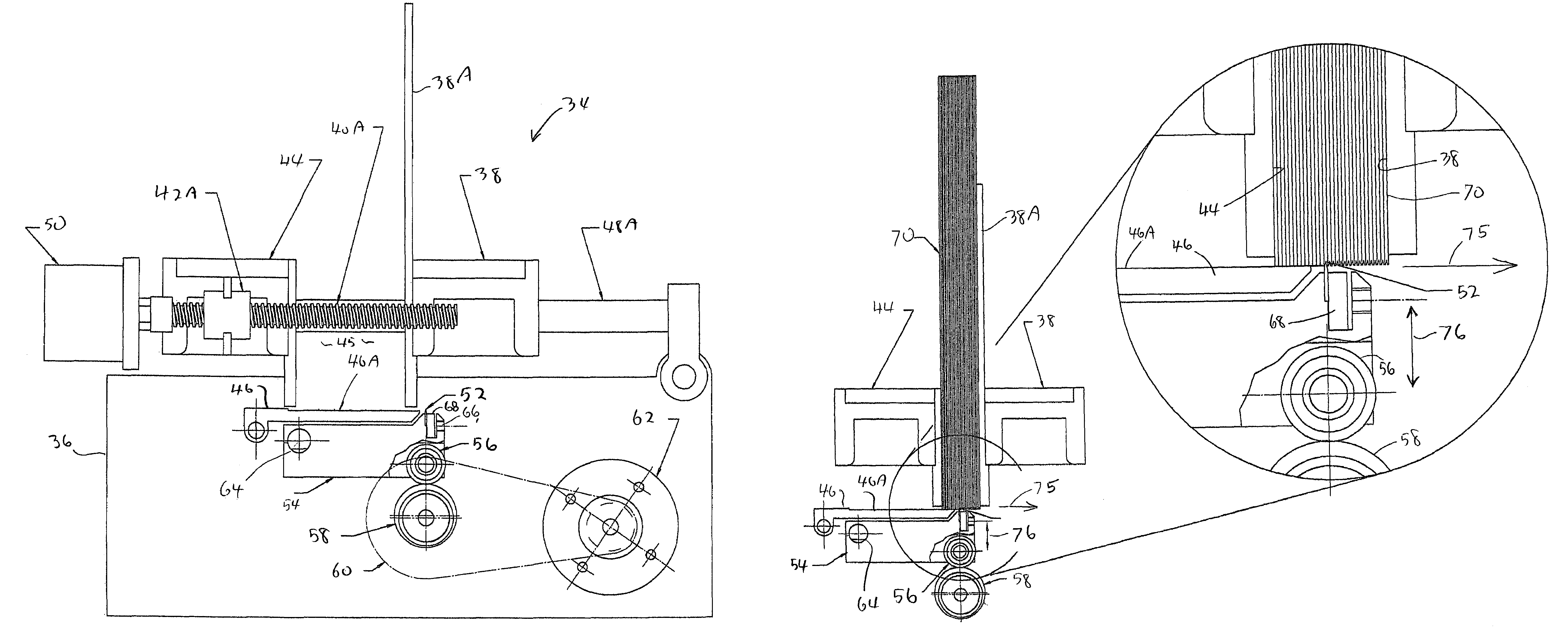

Apparatus for conditioning an edge of a stack of sheets to be bound so that sheets having coated surfaces and the like can be reliably bound. The apparatus includes a stack clamping mechanism configured to secure the stack of sheets and a piercing member configured to produce a piercing action substantially in a piercing plane. Also provided is a positioning mechanism configured to control relative movement of the stack clamping mechanism and the piercing mechanism so that the sheets of the stack pass through the piercing plane, with the drive mechanism being configured to drive the piercing member into the edge of the stack at least once for each sheet of the stack passing through the piercing plane.
First Claim
Other Claims data not available
