Highly dynamic processing machine for lenses

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 7357054
APP PUB NO 20060081097A1
SERIAL NO

11249798

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

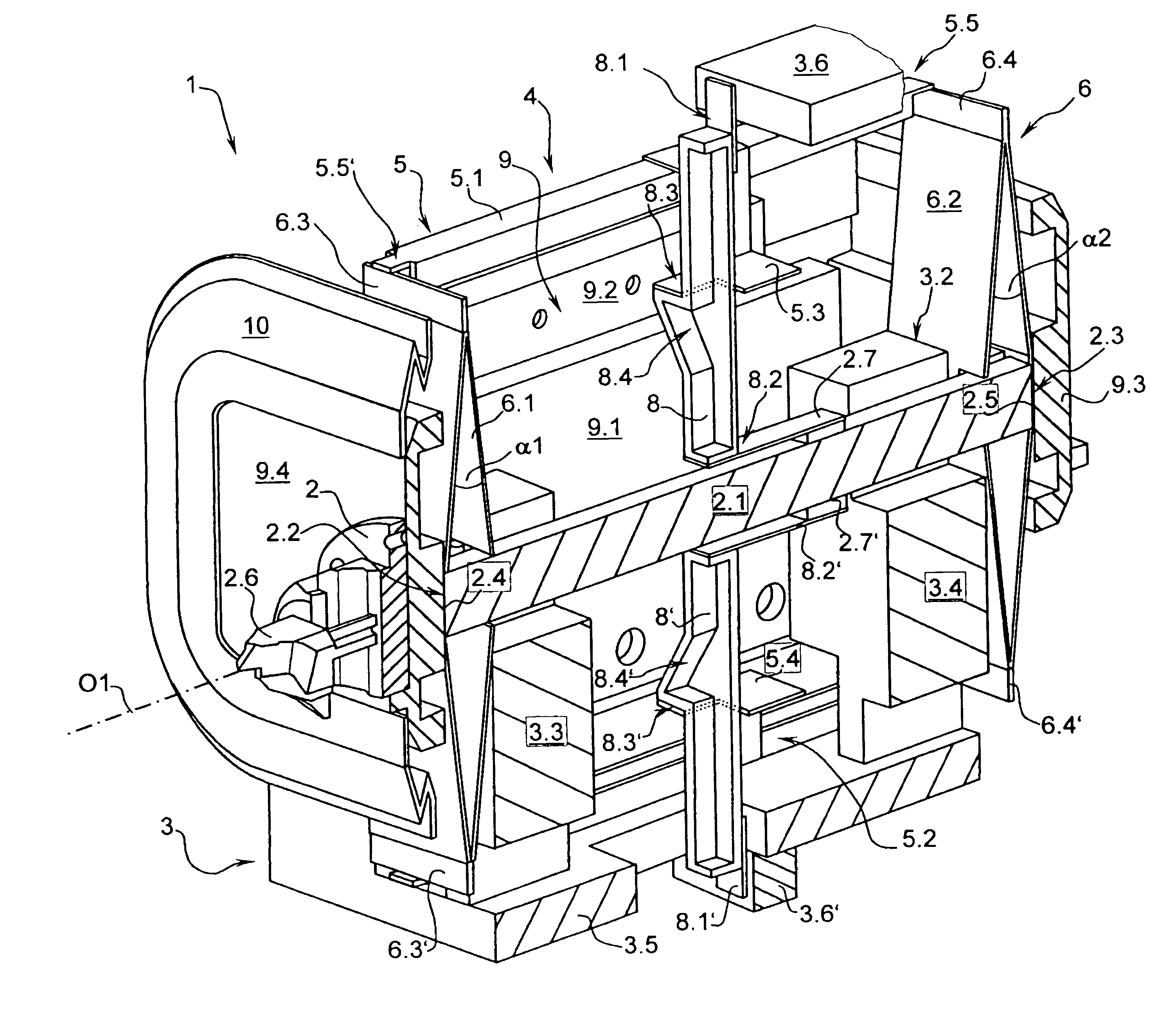

A highly dynamic lens processing machine with a machine bed having at least a first tool holder and one workpiece holder with an axis of rotation and including a workpiece spindle arranged thereon. The first tool holder includes at least one dynamic linear drive with a first oscillation axis which runs parallel to the axis of rotation. The workpiece holder includes at least one dynamic linear drive in the direction of a second oscillation axis which is arranged parallel to the first oscillation axis.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
SCHNEIDER GMBH & CO KG35112 FRONHAUSEN

International Classification(s)

loading....
  • 2005 Application Filing Year
  • B23B Class
  • 365 Applications Filed
  • 208 Patents Issued To-Date
  • 56.99 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances200520062007200820092010201120122013201420152016201720180255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Boerner, Ulf Marburg, DE 5 18
Buchenauer, Helwig Dautphetal-Buchenau, DE 29 109
Kraemer, Klaus Dautphetal-Friedensdorf, DE 13 47
Schneider, Gunter Marburg, DE 89 394

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 2 Citation Count
  • B23B Class
  • 3.54 % this patent is cited more than
  • 17 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges914956237441101 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7071 - 800102030405060708090100110120130140150160

Forward Cite Landscape

Load Citation
