Thermal displacement correcting device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 8, 2008
Grant Date -
May 10, 2007
app pub date -
Nov 6, 2006
filing date -
Nov 4, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

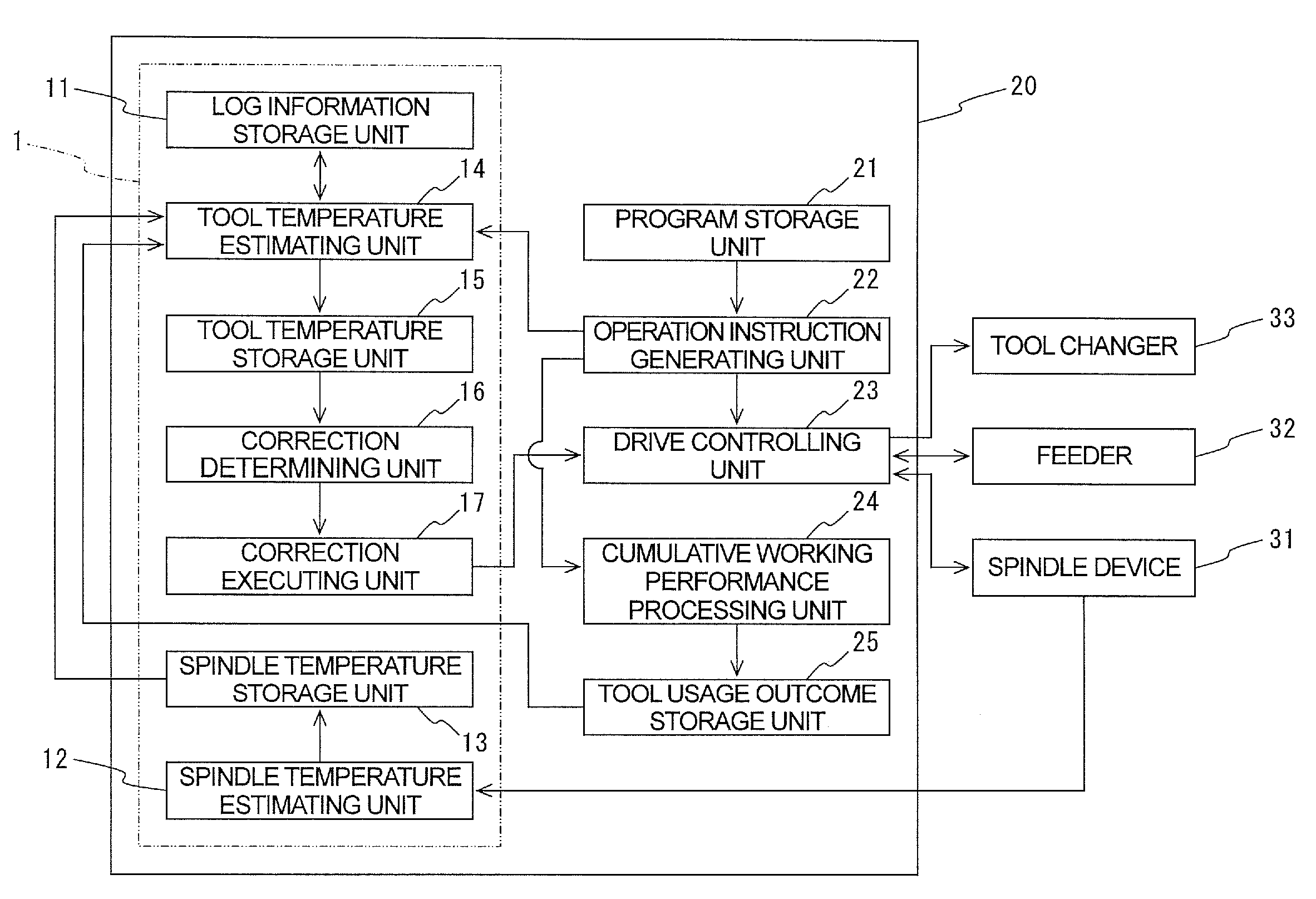

Machine-tool thermal displacement correcting device having: a tool-temperature estimating unit for recognizing--based on identification data obtained from a controller for designating, out of tools stowed in the tool-changer tool magazine, an exchange-target tool--the directly-after-use temperature of the ID'd tool, and estimating the tool temperature directly before use, based on the recognized directly-after-use tool temperature and on lapsed time, obtained from the controller, since previous use of the ID'd tool, and for estimating, based on the estimated directly-before-use tool temperature and on the spindle temperature, during-use temperature of the tool; a correction determining unit for estimating, based on the estimated during-use tool temperature, axial thermal displacement of the tool, and determining a correction amount for canceling out the displacement; and a correction executing unit for carrying out correction based on the determined correction amount.
First Claim
Other Claims data not available
