Braking system for an agricultural vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 8, 2008
Grant Date -
Apr 19, 2007
app pub date -
Dec 14, 2006
filing date -
Jun 1, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

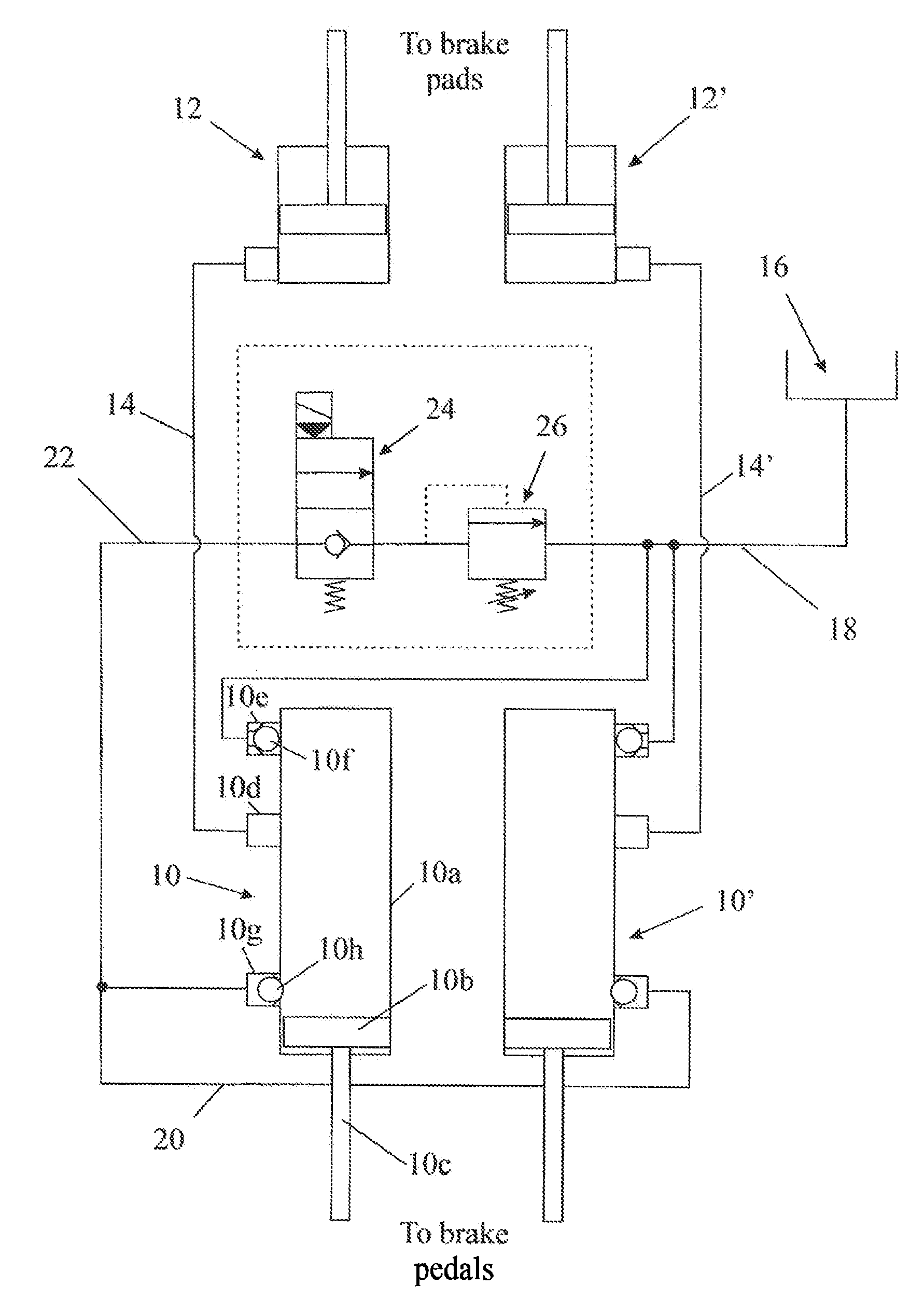

An agricultural vehicle is disclosed having ancillary equipment that may be raised and lowered relative to the ground with consequential changing of the position of the centre of gravity of the vehicle and having a hydraulic braking system comprising a master cylinder and a slave cylinder. The braking system further includes a pressure relief valve for limiting the hydraulic pressure applied to the slave cylinder only when the vehicle is in road mode. This ensures that the braking force does not exceed a safe limit below which the vehicle does not risk toppling forwards when braking.
First Claim
Other Claims data not available
