Wheel component centering system for vehicle service devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 8, 2008
Grant Date -
Apr 14, 2005
app pub date -
Oct 14, 2003
filing date -
Oct 14, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

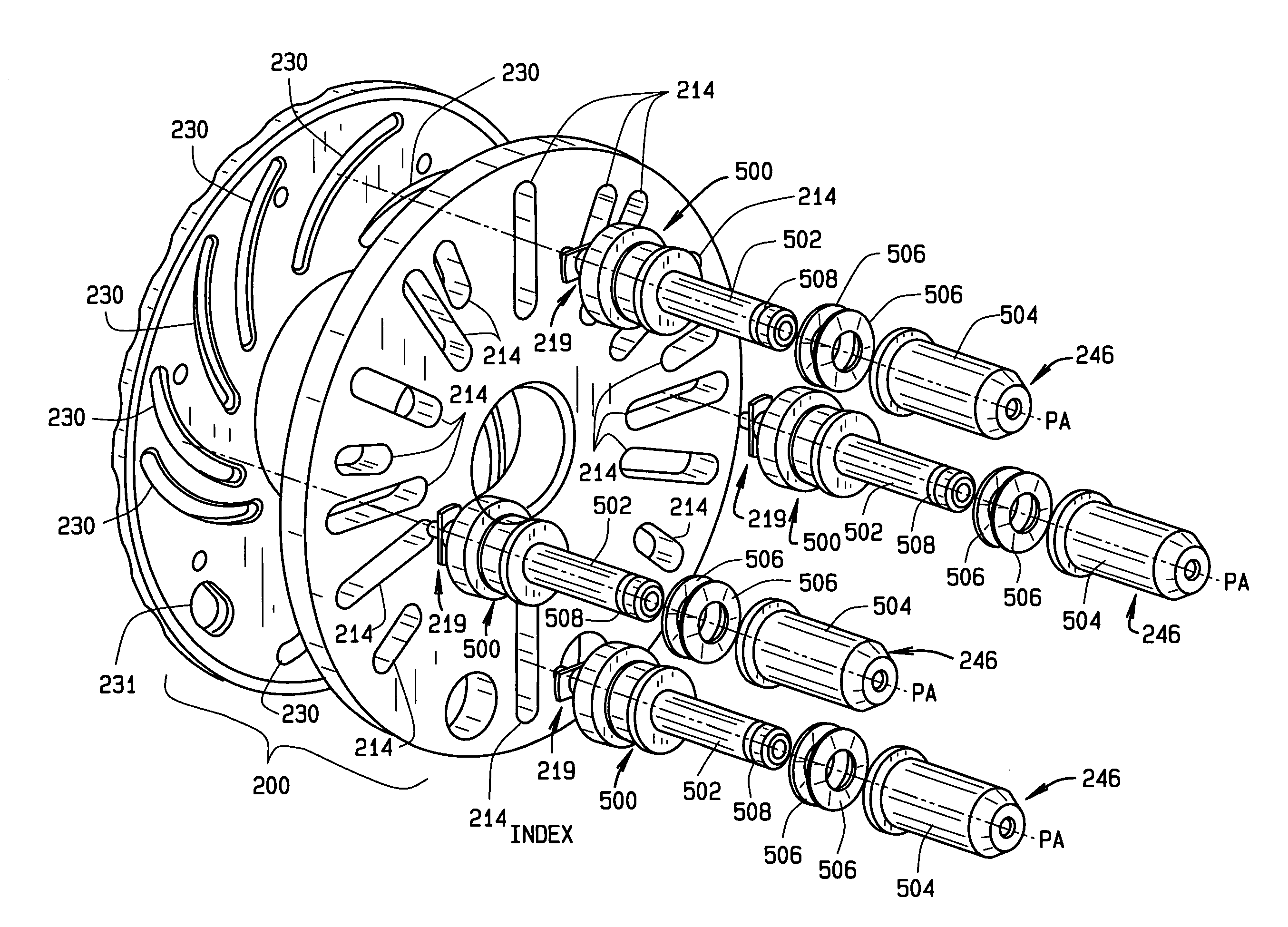

A system and method for centered mounting of a rotating body upon a spindle shaft. The system includes a set of double low-tapers cones arranged and identified according to size. A guide is provided to identify an appropriate cone from the set for a given rotating body pilot hole diameter. To secure the rotating body upon the spindle in a centered manner with the selected cone, an infinitely adjustable mounting flange assembly is provided with a set of mounting pins to engage the rotating body in a predetermined spacing with a clamping force against the cone. The mounting flange assembly and set of mounting pins cooperatively provides for infinite adjustment to accommodate a range of symmetrical vehicle wheel lug hole patterns between a minimum radial dimension and a maximum radial dimension.
