Method for fabricating a Johnsen-Rahbek electrostatic wafer clamp
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 1, 2008
Grant Date -
Jan 5, 2006
app pub date -
Jun 30, 2004
filing date -
Jun 30, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

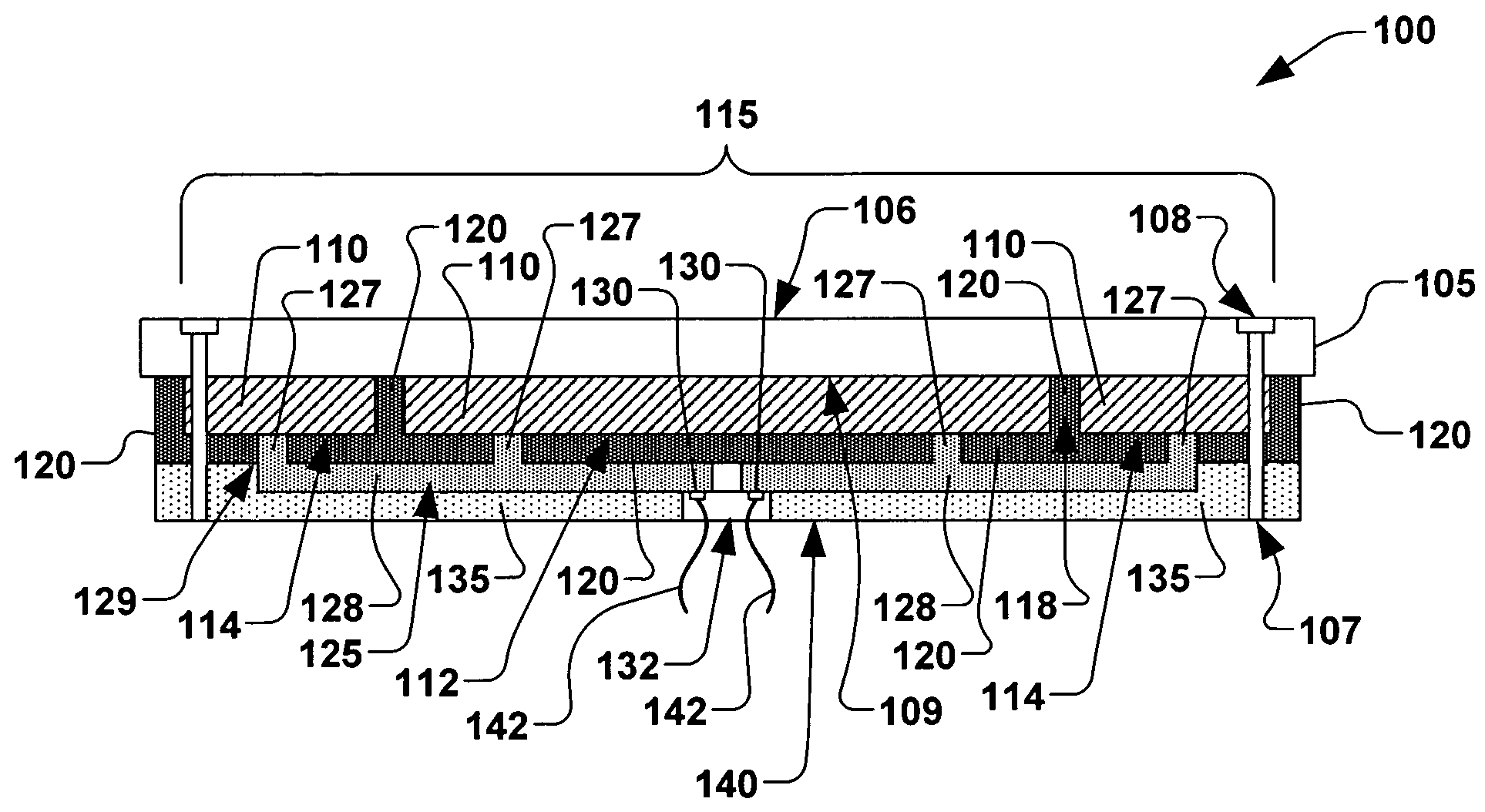

The present invention is directed to a J-R electrostatic clamp (ESC) and method for forming same. The ESC comprises a ceramic layer for clamping a wafer thereto, and a plurality of electrodes arranged across the ceramic layer in an interior region and a peripheral region of the backside surface, wherein a plurality of electrode groups are defined by electrodes in the interior regions and peripheral regions. A first insulating layer generally isolates the electrode groups from one another, and an interconnect layer comprising a plurality of electrically conductive vias and interconnects electrically connect the electrodes associated with each respective electrode group. Each electrode group comprises a connection node, wherein the respective electrode group is operable to connect to a respective voltage potential. A second insulating layer generally encapsulates the interconnect layer. The method comprises patterning the electrodes, first insulating layer, interconnect layer, and second insulating layer to form the ESC.
