Thermally-actuated switch
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 18, 2008
Grant Date -
May 19, 2005
app pub date -
Feb 17, 2003
filing date -
Feb 19, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

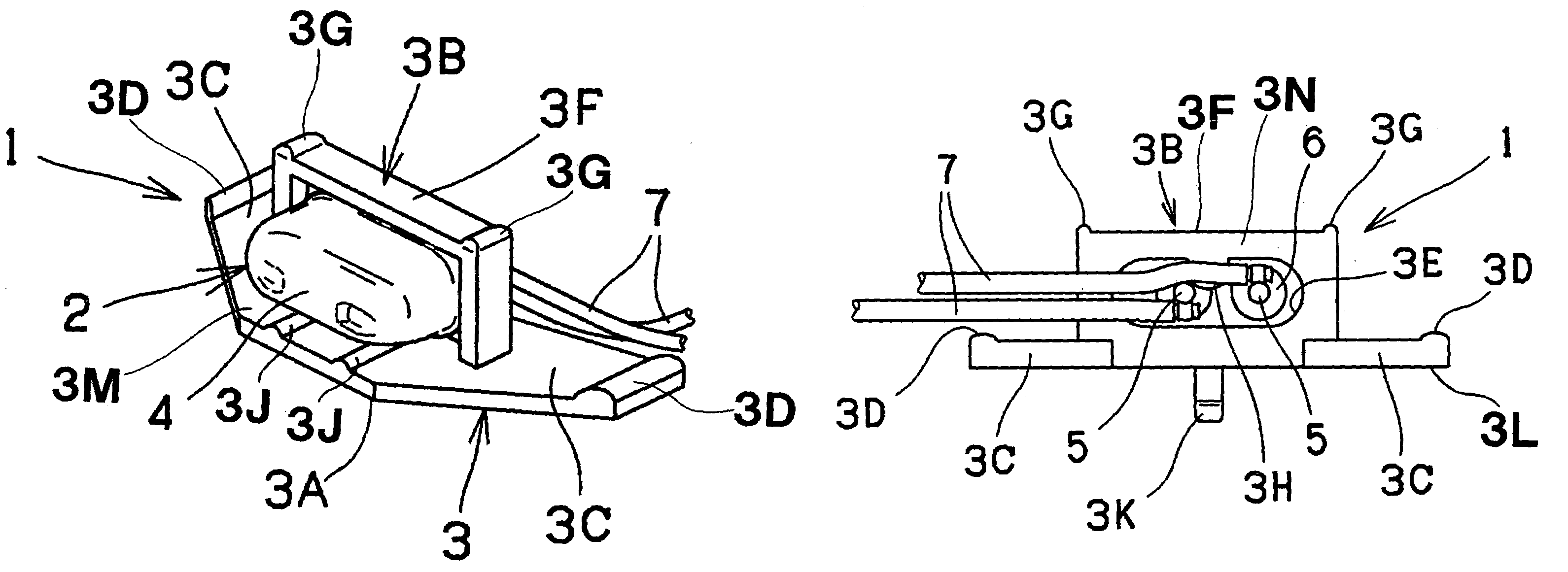

A thermally-actuated switch mounted on an end of a motor coil of a hermetic motor-driven compressor includes a switch body including a metallic pressure-tight hermetic container, a contact mechanism disposed in the container, and an electrically conductive terminal which hermetically extends through the hermetic container and to which a lead wire is connected, and a holder including a base having a mounting face for the coil end and a holding portion located on a face of the base opposed to the mounting face for holding the switch body. The base is sized so as to prevent radiant heat from transferring from the coil end directly to the switch body. The holder has a through hole through which the terminal is inserted. The lead wire is connected to the terminal having been inserted through the hole so that the holder is held between the hermetic container and the lead wire.
First Claim
Other Claims data not available
