Method and device for orienting flat items of mail towards a narrow edge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 18, 2008
Grant Date -
Nov 9, 2006
app pub date -
Mar 25, 2004
filing date -
May 2, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

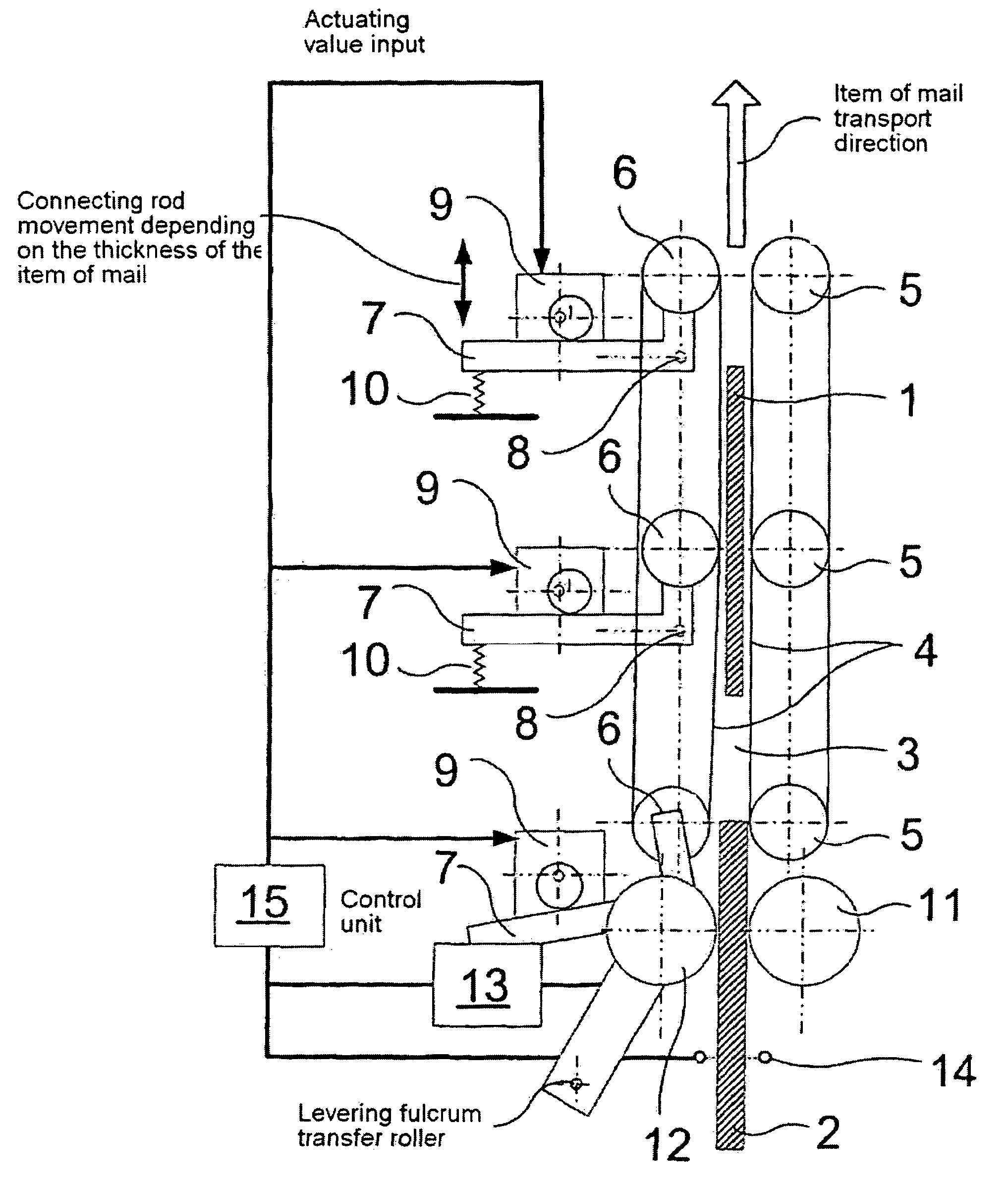

A method and device are disclosed for orienting flat items of mail towards a narrow edge in a U-shaped conveying channel in which they are conveyed in an upright position and without being jammed. Before the items pass the conveying channel for the purpose of alignment, their thickness is measured. The distances of the lateral limit stops or limiting sections are changed by means of adjusting mechanisms for every item of mail in such a manner that at the end of the conveying channel, the item is oriented towards its lower narrow edge by virtue of its own gravity and the distance of the lateral limit stops of the conveying channel from every item of mail during transport through the conveying channel is only wide enough for the item not to collapse at all nor to collapse partially even if its intrinsic stiffness is poor.
First Claim
Other Claims data not available
