Antenna in a wireless system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 11, 2008
Grant Date -
Mar 27, 2008
app pub date -
Sep 25, 2006
filing date -
Sep 25, 2006
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

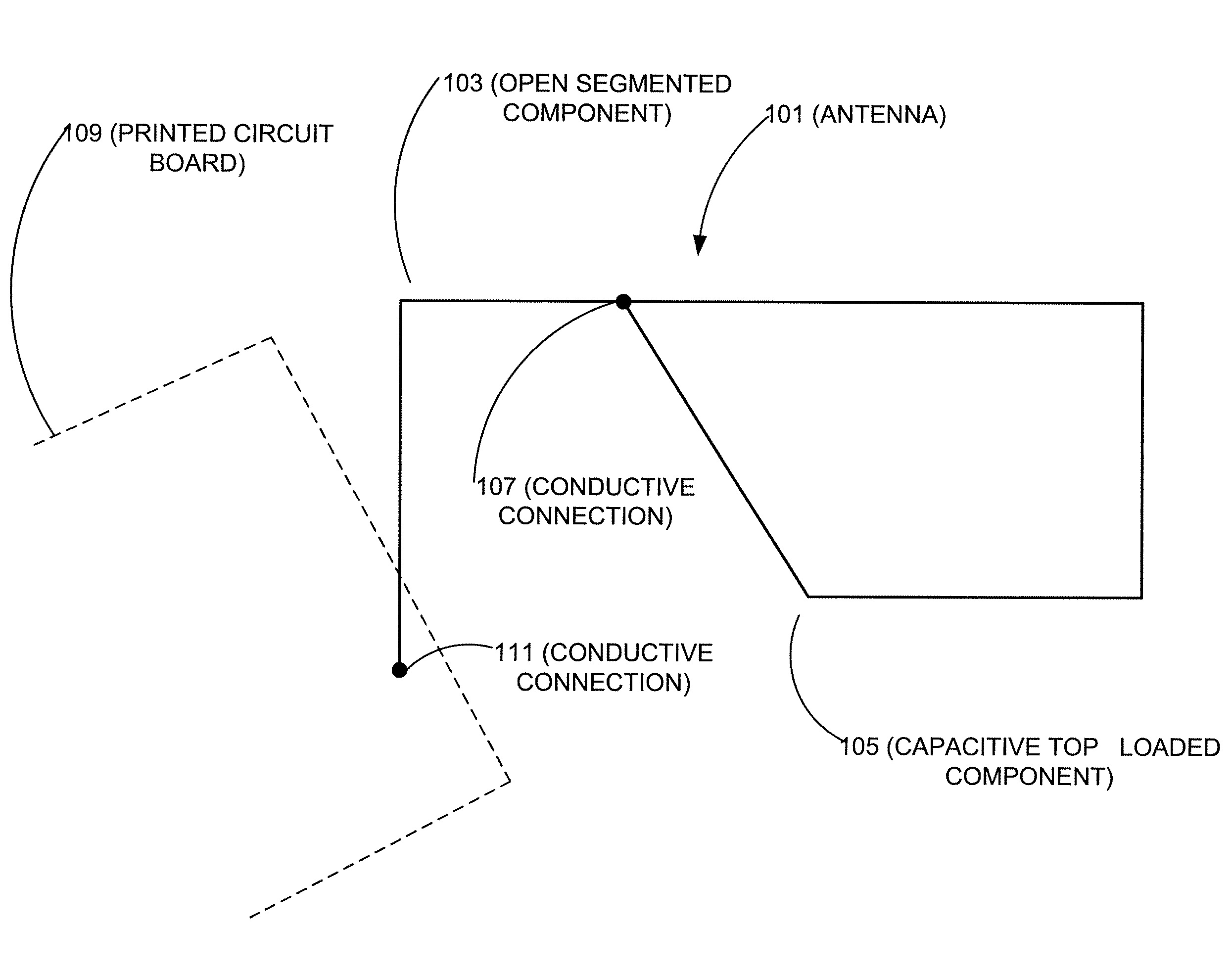

The present invention provides apparatuses and methods for an antenna in a wireless receiving system. The antenna includes an opened segmented component that is electrically coupled to a printed circuit board and a capacitive top loaded component that provides a capacitive load. The vertical profile of the antenna may be reduced sufficiently so that the antenna may be internally located in the same enclosure as the printed circuit board. The capacitive top loaded component is situated away from a ground plane of a printed circuit board to reduce the capacitive coupling is reduced, and consequently the required voltage standing wave ration (VSWR) is maintained over a broad operating range. The capacitive top loaded component includes a closed shape that provides a capacitive load. In order to tune the antenna to operate with a desired characteristic (e.g., within a VSWR criterion), the closed shape may be modified.
